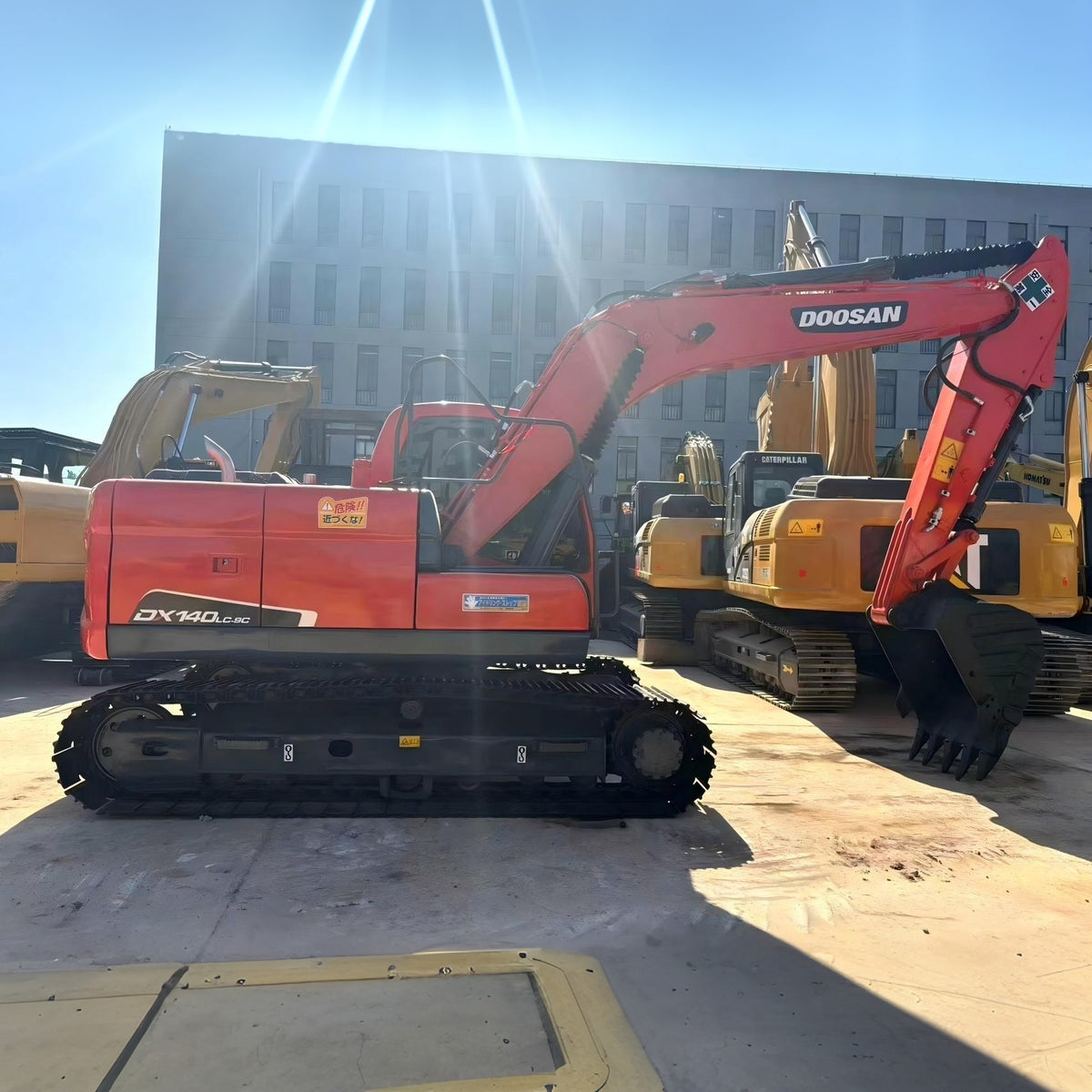

Used DOOSAN DX140LC-9C
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: DSNDX1401NW269400
MACHINE REFERENCE PRICE
USD 18,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2022
- Meter hours
- 1524 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
DAEWOO / DOOSAN Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used DOOSAN DX140LC-9C crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work; projects that require stable crawler undercarriage performance; earthmoving, trenching, and foundation excavation. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
CONFIGURATION
DOOSAN DX140LC-9C specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
DSNDX1401NW269400
- Listed Price
- USD $18,000
- Full Model Name
- Doosan DX140LC-9C
- Operating Weight (Standard)
- 14,000 kg (30,865 lb)
- Engine Model
- Doosan DL06 (Common Rail, Tier III Emission)
Full listing reference specifications
- Rated Net Power
- 71 kW (95 HP) @ 1,850 rpm (SAE J1349)
- Max. Engine Torque
- 436 Nm (322 lbf·ft) @ 1,400 rpm
- Main Hydraulic Pump Type
- 2 x Variable Displacement Axial Piston Pumps
- Max. Pump Flow
- 2 x 114 L/min (2 x 30.1 US gpm)
- Max. System Pressure (Power Mode)
- 343 bar (350 kgf/cm²)
- Standard Bucket Capacity (SAE)
- 0.51 m³ (0.67 yd³)
- Max. Digging Depth (2.5m Arm)
- 5,645 mm (18'6")
- Max. Horizontal Reach (2.5m Arm)
- 8,300 mm (27'3")
- Max. Dumping Height (2.5m Arm)
- 6,300 mm (20'7")
- Travel Speed (High/Low)
- 4.7 / 3.0 km/h (2.9 / 1.9 mph)
- Max. Traction Force
- 11,800 kgf (26,014 lbf)
- Swing Speed
- 0 - 10.7 rpm
- Fuel Tank Capacity
- 280 L (74.0 US gal)
- Hydraulic Oil Tank Capacity
- 150 L (39.6 US gal)
- Standard Track Shoe Width
- 600 mm (24")
- Ground Pressure (Standard)
- 5.2 psi
- Shipping Length (Standard)
- 7,680 mm (25'2")
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui, China?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this DOOSAN DX140LC-9C
Destination port · Application · Preferred condition
