| Year |
2023 |
| Working Hours |
1,028 hours |
| Model |

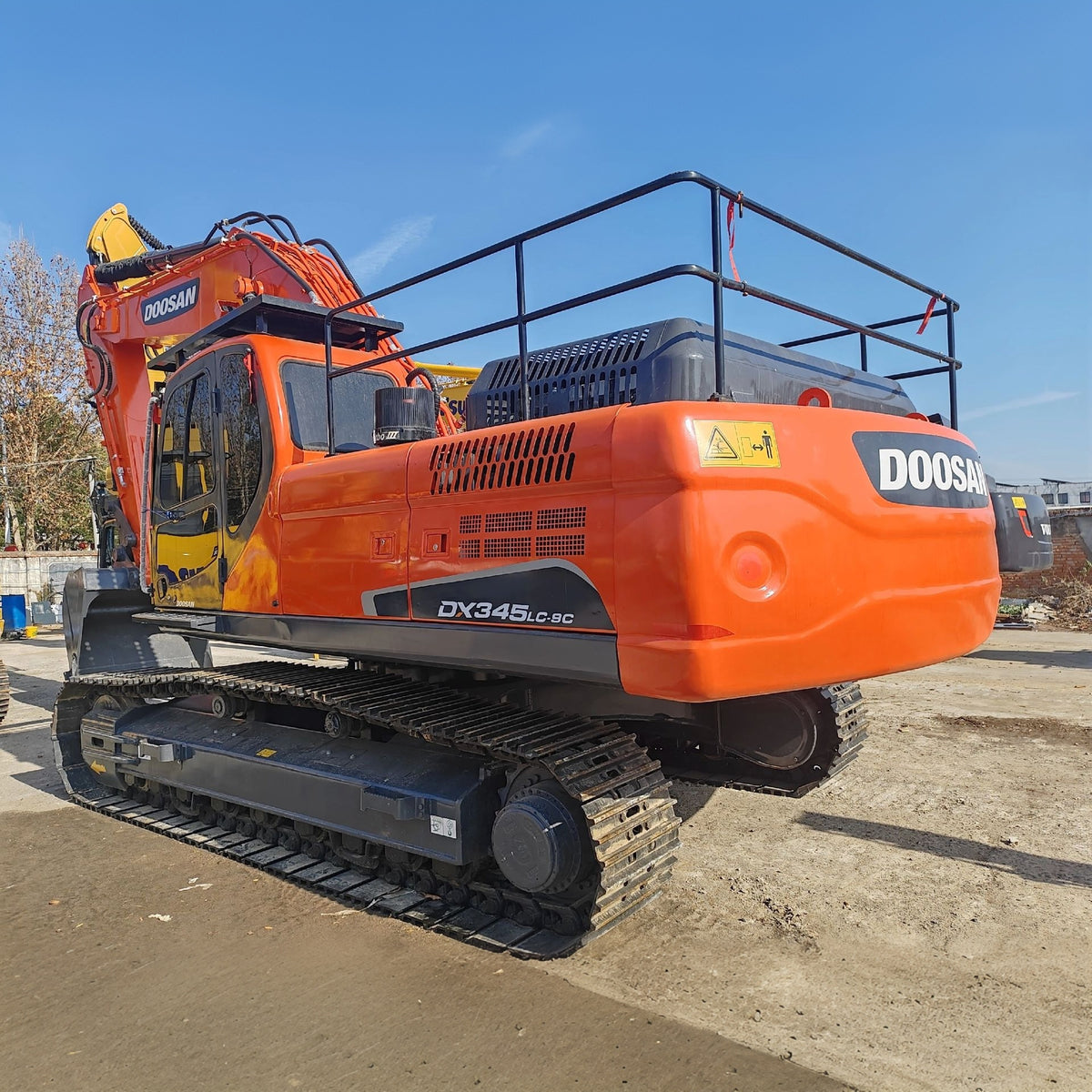

Doosan DX345LC-9C |
| Operating Weight (Standard) |
34,700 kg (76,500 lb) |
| Engine Model |
Doosan DE12TIA-C2 (Tier III Emission) |
| Rated Net Power |
188 kW (252 HP) @ 1,800 rpm (SAE J1349) |
| Max. Engine Torque |
1,080 Nm (797 lbf·ft) @ 1,400 rpm |
| Main Hydraulic Pump |
2 x Variable Displacement Axial Piston Pumps |
| Max. Pump Flow |
2 x 270 L/min (2 x 71.3 US gpm) |
| Max. System Pressure |
32.4 MPa (324 bar) |
| Standard Bucket Capacity (SAE) |
1.49 m³ (1.95 yd³) |
| Max. Digging Depth (3.2m Arm) |
7,450 mm (24'5") |
| Max. Horizontal Reach |
10,895 mm (35'9") |
| Max. Dumping Height |
7,280 mm (23'11") |
| Travel Speed (High/Low) |
5.5 / 3.2 km/h (3.4 / 2.0 mph) |
| Max. Traction Force |
29,800 kgf (65,700 lbf) |
| Swing Speed |
0 - 10.0 rpm |
| Fuel Tank Capacity |
550 L (145.3 US gal) |
| Hydraulic Oil Tank Capacity |
206 L (54.4 US gal) |
| Standard Track Shoe Width |
800 mm (31.5") |
| Ground Pressure (Standard) |
64.7 kPa (9.4 psi) |
