HITACHI

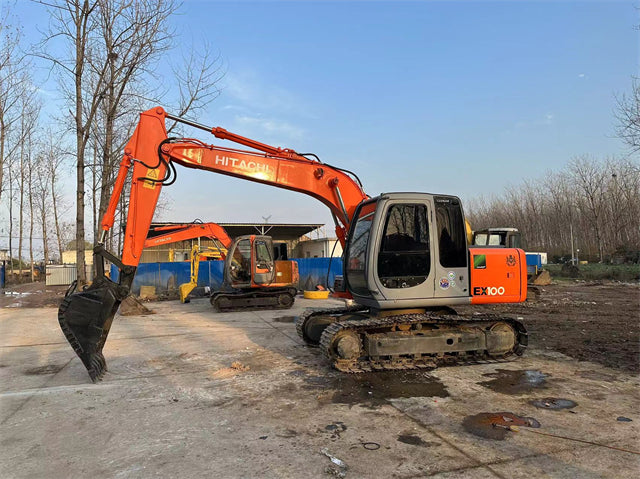

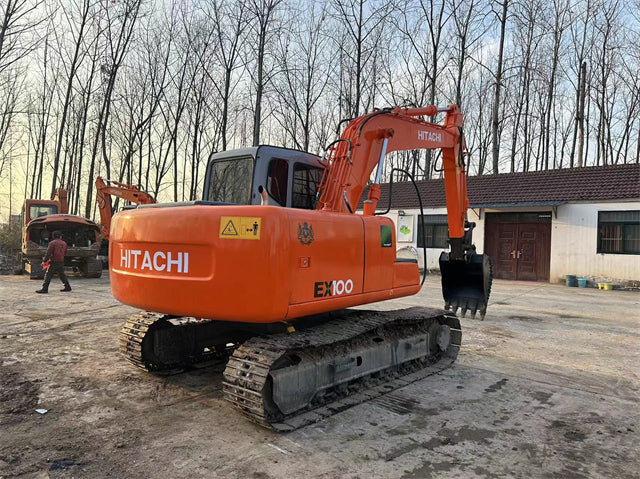

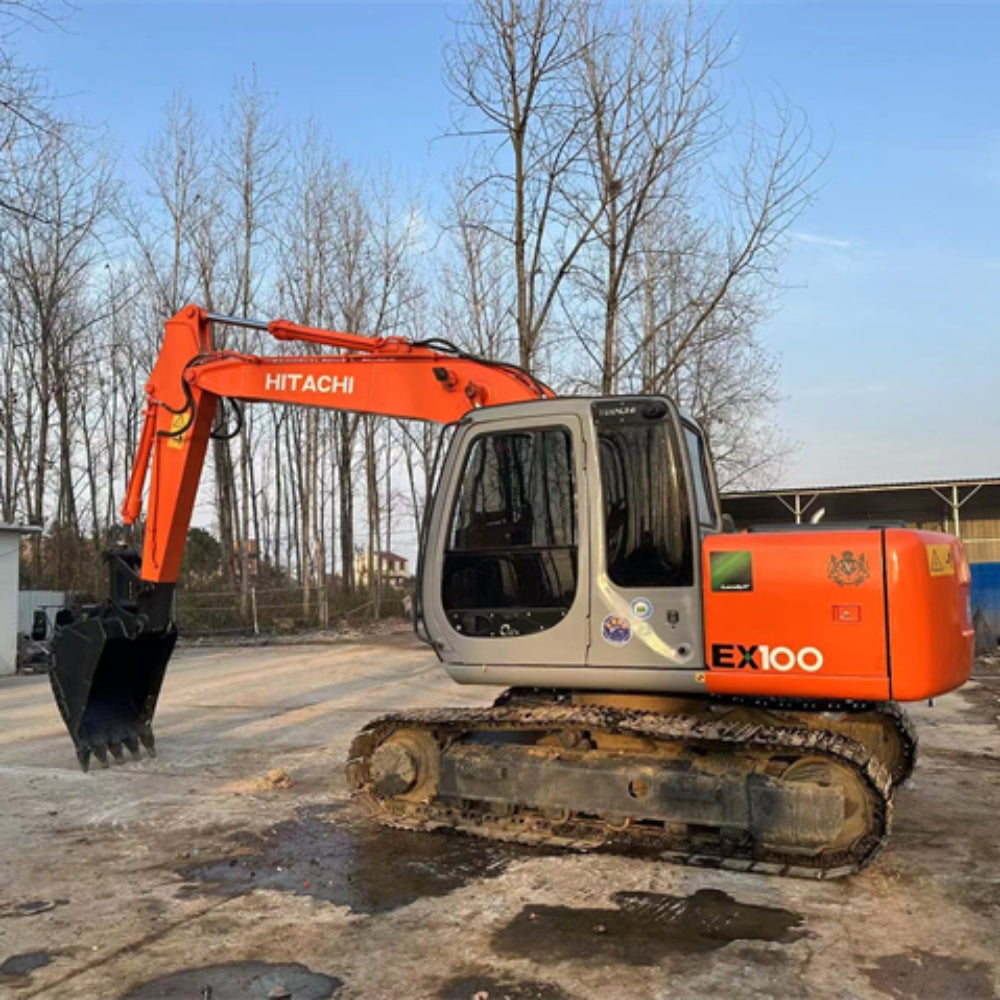

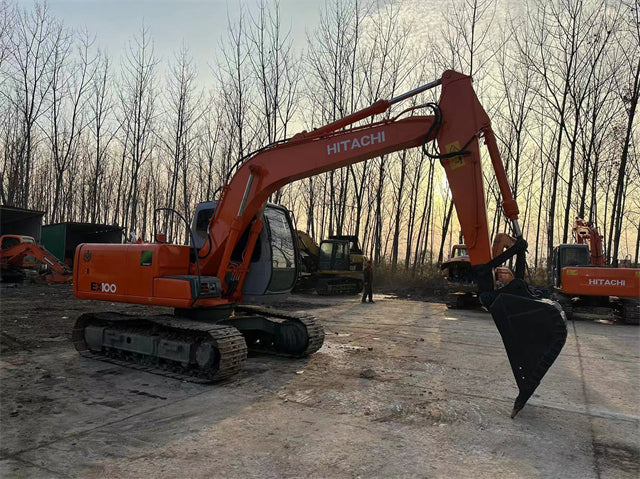

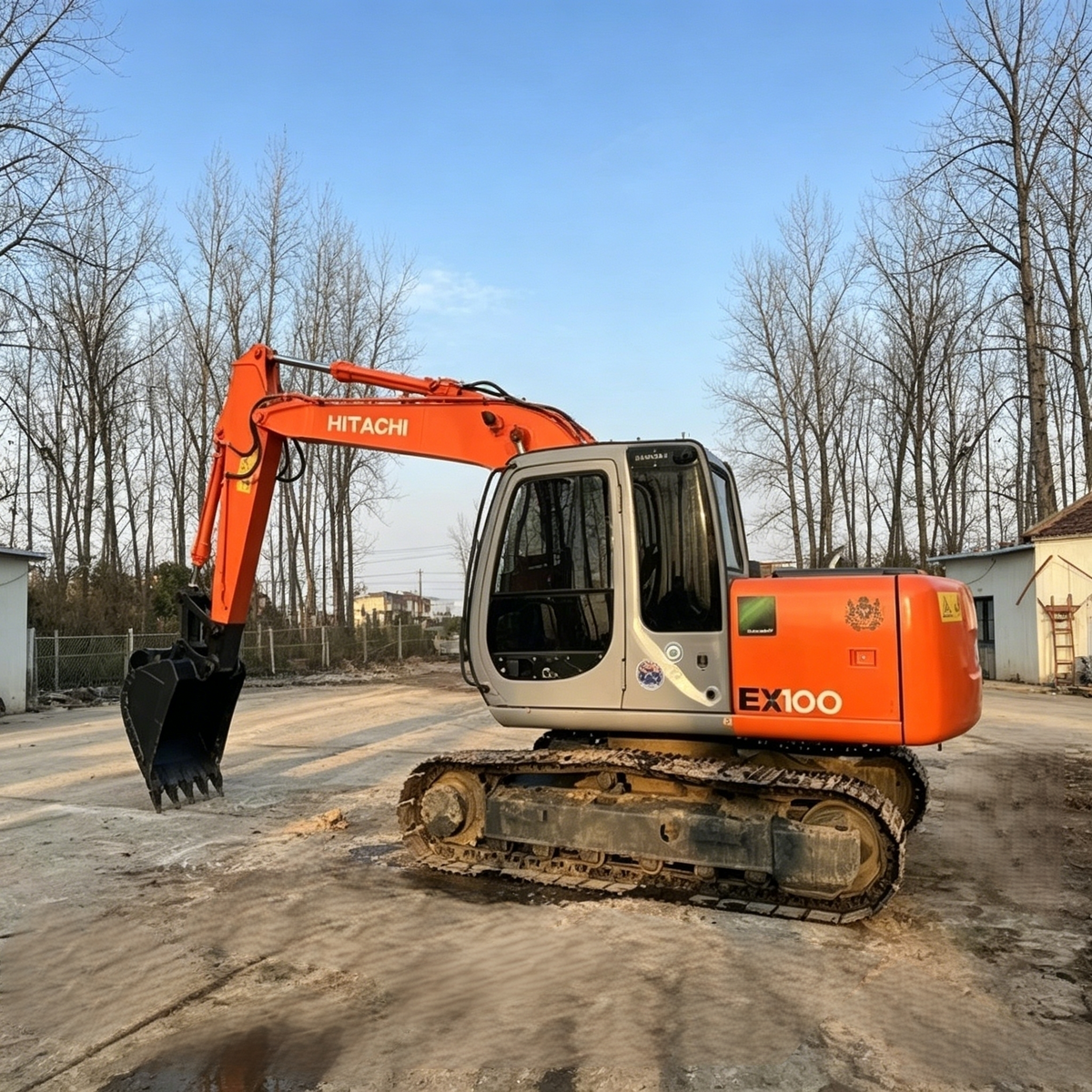

USED HITACHI EX100

USED HITACHI EX100

$14,000.00 USD
$14,000.00 USD
Sale Sold out

Parameter Details
Model HITACHI EX100 (standard crawler excavator, representative of EX100-3/5 series)
Engine Model: Isuzu 4BD1 (4 - cylinder, water - cooled, direct - injection diesel)

Rated Net Power: 56 kW (75 hp) @ 2200 rpm (SAE J1349)

Displacement: 3.856 L

Bore×Stroke: 102 mm×118 mm

Max Torque: 235 N·m @ 1600 rpm

Aspiration: Naturally aspirated
Hydraulic System Type: Open - center, two - variable - displacement axial - piston pumps

Main Pump Flow: 190 L/min (50.2 gal/min)

Relief Valve Pressure: 33.7 MPa (4890 psi)

Hydraulic Fluid Capacity: 134 L (35.4 US gal)

Swing Drive Fluid Capacity: 3.2 L (0.85 US gal)
Operating Weight 10,700 kg (23,600 lbs) (standard configuration with bucket and boom)
Bucket (Standard) Capacity: 0.4 m³ (0.52 yd³) (heaped)

Max Digging Depth: 4,780 mm (15.68 ft)

Max Loading Height: 5,530 mm (18.14 ft)

Max Reach Along Ground: 7,290 mm (23.92 ft)

Max Digging Height: 7,930 mm (26.02 ft)
Dimensions Overall Length: 7,190 mm (23.59 ft)

Overall Width (over tracks): 2,490 mm (8.17 ft)

Height (top of cab): 2,720 mm (8.92 ft)

Rear Swing Radius: 2,130 mm (7.0 ft)

Track Gauge: 1,990 mm (6.53 ft)

Ground Clearance: 460 mm (1.51 ft)
Undercarriage Track Shoe Width: 500 mm (19.7 in)

Ground Contact Length: 2,800 mm (9.19 ft)

Ground Pressure: 37.2 kPa (5.4 psi)

Max Travel Speed: 5.5 kph (3.4 mph)
Capacities Fuel Tank: 250 L (66 gal)

Engine Oil: 14.7 L (3.9 gal)

Coolant: 18.4 L (4.9 gal)
Swing Mechanism Swing Speed: 13.5 rpm
View full details
