COMPANY RECORD
Workshop preparation example
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →YUANJIAN MACHINERY · HEFEI, CHINA

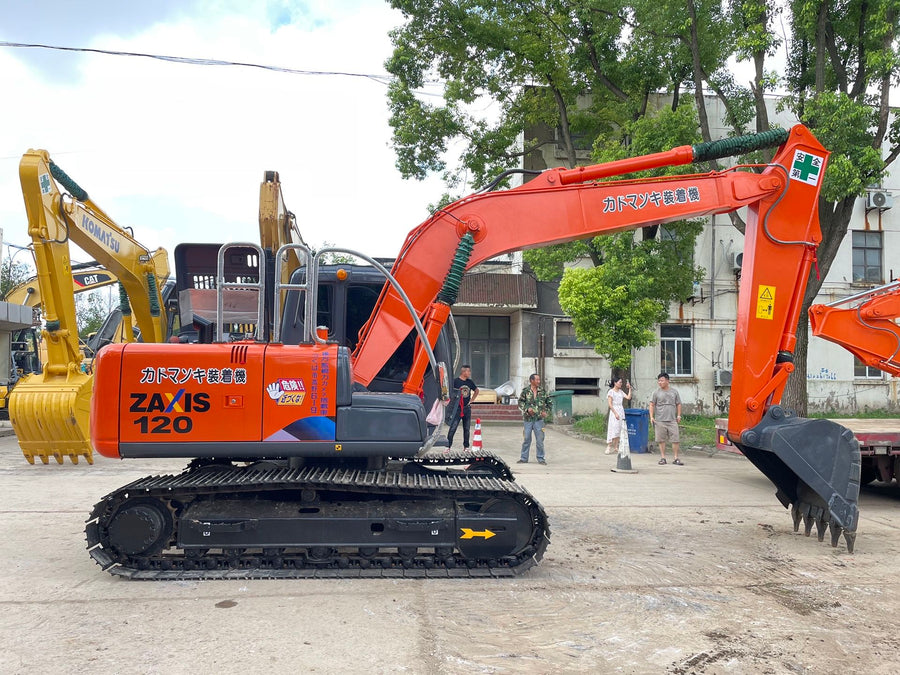

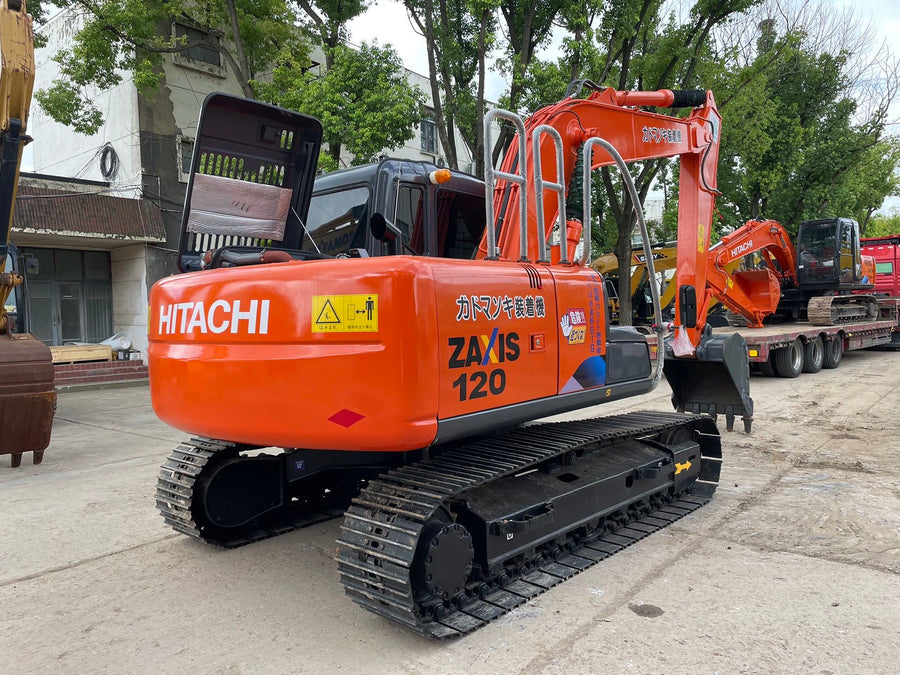

Used Hitachi EX120
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: HTCEX120RNM502683
MACHINE REFERENCE PRICE
USD 12,500.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2022
- Meter hours
- 2,439 h
- Condition
- Used
- Machine type
- Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
Hitachi Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Hitachi EX120 crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems

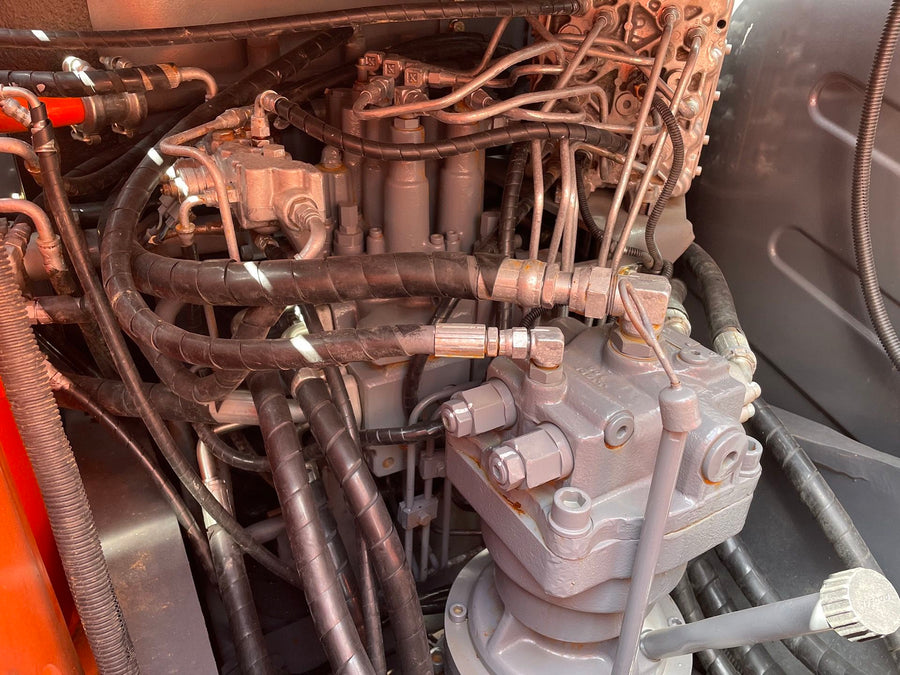

Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work; projects where track undercarriage stability is important. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response, boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, leakage points, and cab condition
CONFIGURATION
Hitachi EX120 specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
HTCEX120RNM502683
- Engine
- Model: Isuzu A-4BG1T (4-cylinder, water-cooled, turbocharged diesel) Rated Net Power: 63 kW (85 hp) @ 2200 rpm (SAE J1349) Displacement: 4.329 L (264 cu in) Max Torque: 290 N·m @ 1600 rpm Bore×Stroke: 102 mm×118 mm Aspiration: Turbocharged
- Rated Power
- 63 kW (85 hp) @ 2200 rpm (SAE J1349)
- Operating Weight
- 11800 kg (26,014 lbs) (standard configuration with bucket and arm)
- Reference Bucket Capacity
- 0.45-0.65 m3, depending on bucket
Full listing reference specifications
- Reference Max. Digging Depth
- about 5.0-5.8 m class, confirm by boom/stick
- Reference Undercarriage
- Crawler track system; track shoes, rollers, idlers, sprockets and chain should be inspected
- Hydraulic System
- Type: Open-center, two-pump, two-circuit Main Pumps: 2 variable-displacement axial-piston pumps Max Pump Flow: 2×89 L/min (2×23.5 US gal/min), total 178 L/min (47 US gal/min) Relief Valve Pressure: 31.4 MPa (4550 psi) Hydraulic Fluid Capacity: 140 L (37 US gal)
- Bucket (Standard)
- Capacity: 0.45 m³ (0.59 yd³) (heaped) Max Digging Depth: 5160 mm (16.9 ft) Max Loading Height: 5940 mm (19.5 ft) Max Reach Along Ground: 7770 mm (25.5 ft) Max Digging Height: 8350 mm (27.4 ft)
- Dimensions
- Overall Length: 7580 mm (24.9 ft) Overall Width (over tracks): 2490 mm (8.2 ft) Overall Height (top of cab): 2720 mm (8.9 ft) Rear Swing Radius: 2130 mm (7.0 ft) Track Gauge: 1990 mm (6.5 ft) Ground Clearance: 460 mm (1.5 ft)
- Undercarriage
- Track Shoe Width: 500 mm (19.7 in) Ground Contact Length: 2880 mm (9.5 ft) Ground Pressure: 37.2 kPa (5.4 psi) Max Travel Speed: 5.5 kph (3.4 mph)
- Capacities
- Fuel Tank: 250 L (66 US gal) Engine Oil: 16 L (4.2 US gal) Coolant: 19 L (5 US gal)
- Swing Mechanism
- Swing Speed: 13.5 rpm Swing Drive Fluid Capacity: 3.2 L (0.85 US gal)
- Rated Net Power
- 63 kW (85 hp) @ 2200 rpm (SAE J1349)
- Hydraulic Fluid Capacity
- 140 L (37 US gal)
- Capacity
- 0.45 m³ (0.59 yd³) (heaped)
- Engine Oil
- 16 L (4.2 US gal)
- Swing Drive Fluid Capacity
- 3.2 L (0.85 US gal)
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. The stock yard location is Hefei, Anhui. Buyer-arranged inspection, video call inspection, or extra photos can be supported before purchase.
Can you provide working video before payment?
Yes. We can provide a walk-around video, operating video, and key condition photos for remote buyers.
Can you help with export and shipping?
Yes. We support loading, export documents, customs clearance assistance, and shipping quotation to your destination port or country.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this Hitachi EX120
Destination port · Application · Preferred condition
