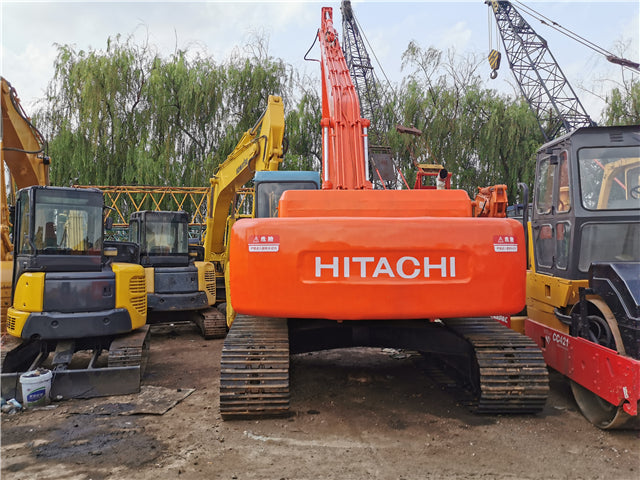

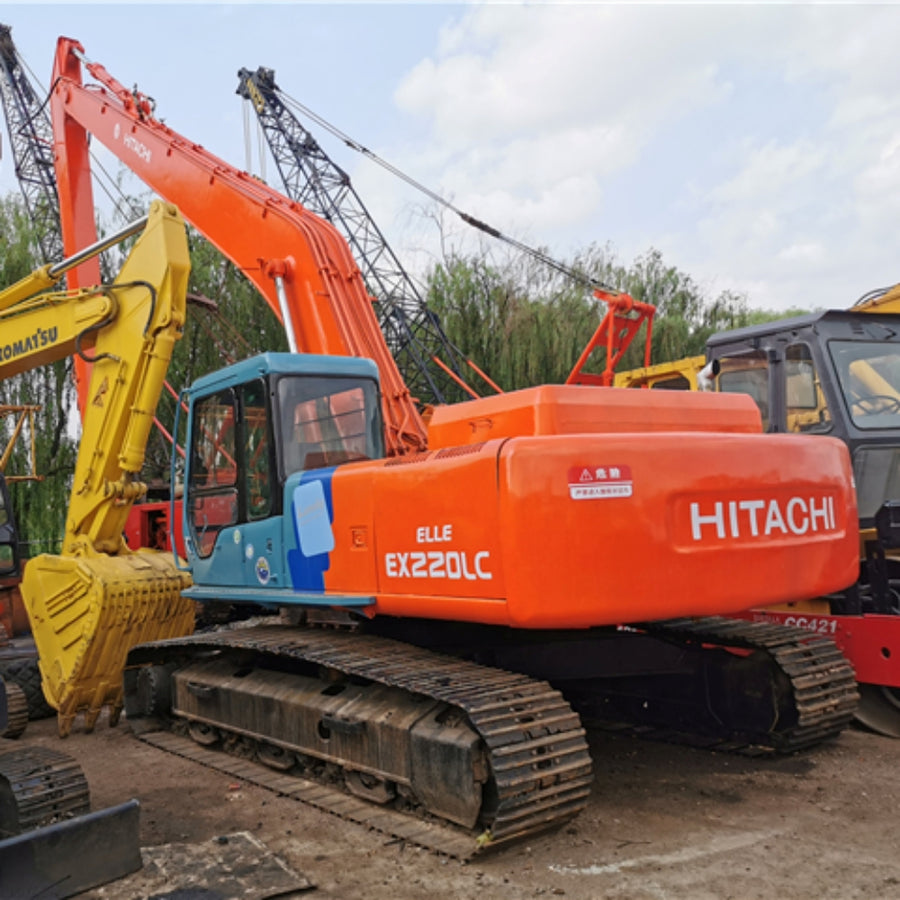

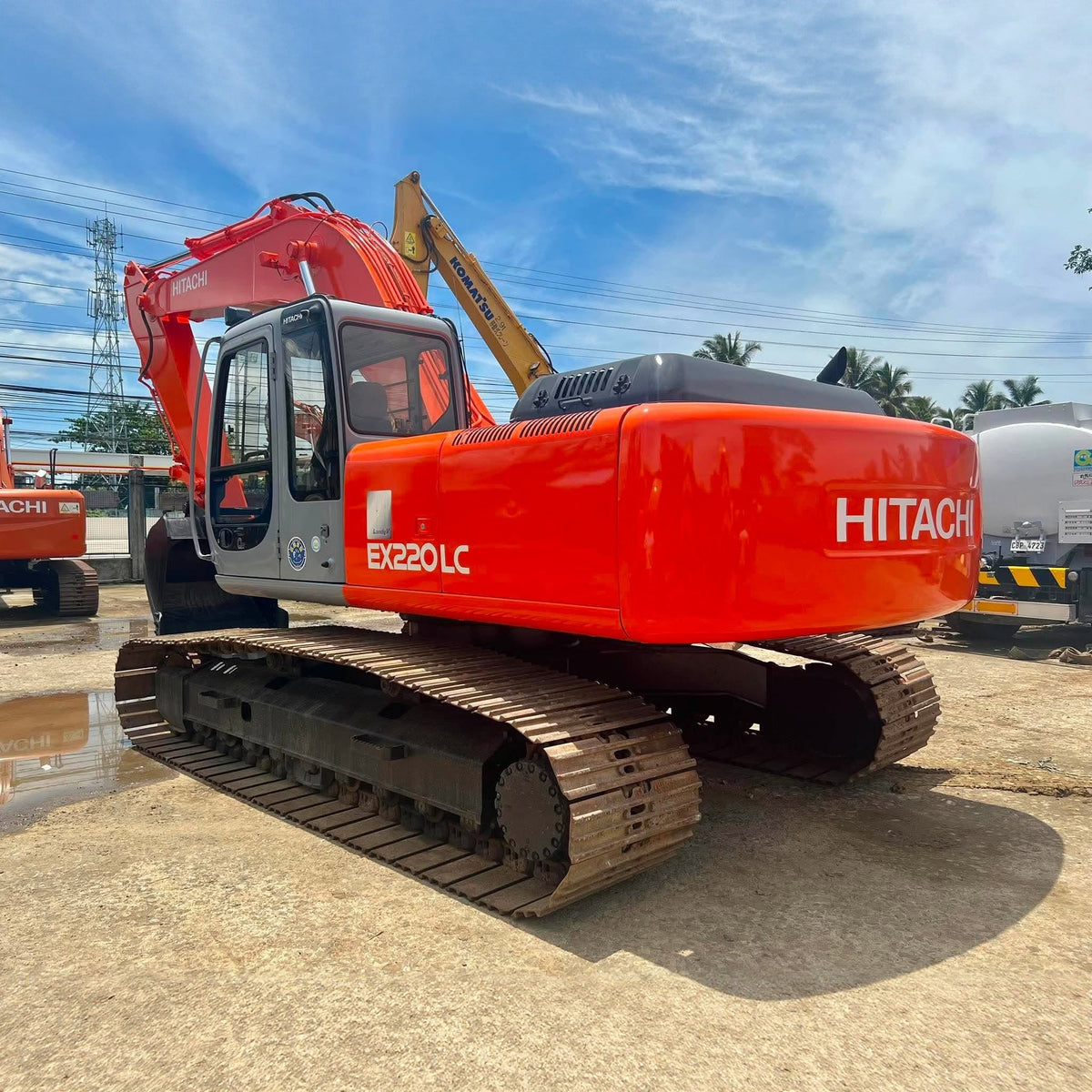

USED HITACHI EX220LC

USED HITACHI EX220LC

$21,000.00 USD
$21,000.00 USD
Sale Sold out


Parameter Details
Model HITACHI EX220LC-5 (long - carriage crawler excavator)
Engine Model: Hino H07C-TD (6-cylinder, water-cooled, turbocharged diesel)

Rated Net Power: 118 kW (158 hp) @ 2000 rpm

Displacement: 6.69 L (408 cu in)

Bore × Stroke: 108 mm × 125 mm

Max Torque: 530 N·m (391 lb·ft) @ 1600 rpm

Aspiration: Turbocharged
Hydraulic System Type: Open-center, two variable-displacement axial-piston pumps

Main Pump Flow: 2×185 L/min (2×48.9 US gal/min), total 370 L/min (97.8 US gal/min)

Relief Valve Pressure: 34.3 MPa (4980 psi)

Hydraulic Fluid Capacity: 239 L (63 US gal)
Operating Weight 23,814 kg (52,500 lbs) (standard configuration with bucket and boom)
Bucket (Standard) Capacity: 1.0 m³ (1.31 yd³) (heaped); Optional: 0.8-1.4 m³

Max Digging Depth: 6,000 mm (19.7 ft)

Max Loading Height: 6,650 mm (21.8 ft)

Max Reach Along Ground: 9,140 mm (30.0 ft)

Max Digging Height: 9,200 mm (30.2 ft)
Dimensions Overall Length: 9,620 mm (31.6 ft)

Overall Width (over tracks): 2,990 mm (9.8 ft)

Height (top of cab): 3,090 mm (10.1 ft)

Rear Swing Radius: 2,750 mm (9.0 ft)

Track Gauge: 2,200 mm (7.2 ft)

Ground Clearance: 450 mm (1.5 ft)
Undercarriage & Travel Track Shoe Width: 600 mm (23.6 in)

Ground Contact Length: 4,140 mm (13.6 ft)

Ground Pressure: 42.1 kPa (6.1 psi)

Max Travel Speed: 5.5 kph (3.4 mph) (high); 3.4 kph (2.1 mph) (low)
Capacities Fuel Tank: 380 L (100.4 US gal)

Engine Oil: 26 L (6.9 US gal)

Coolant: 23 L (6.1 US gal)
Swing Mechanism Swing Speed: 13.5 rpm

Swing Drive Fluid Capacity: 13 L (3.5 US gal)
