| Model |

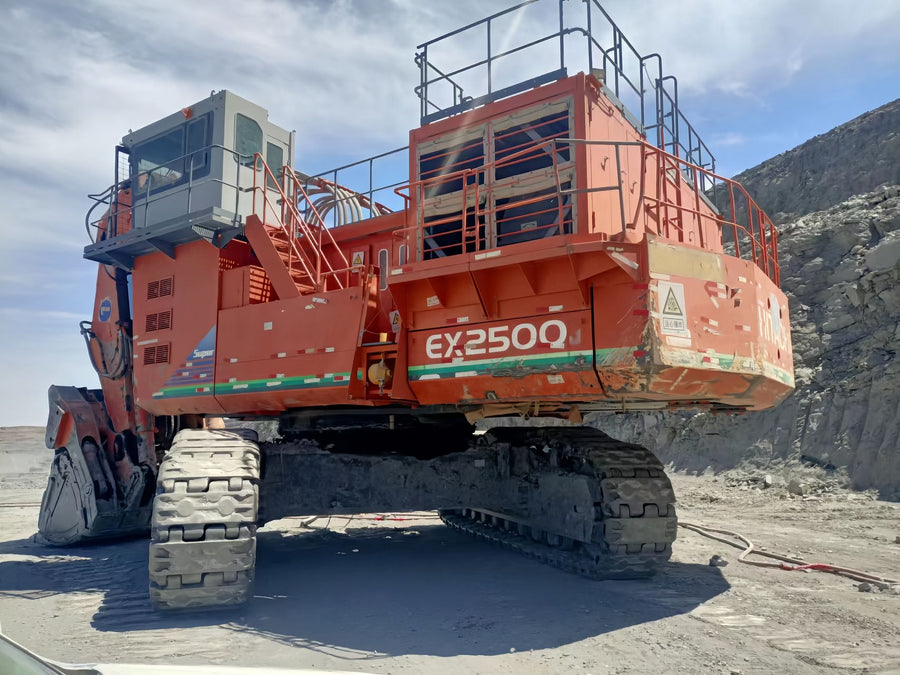

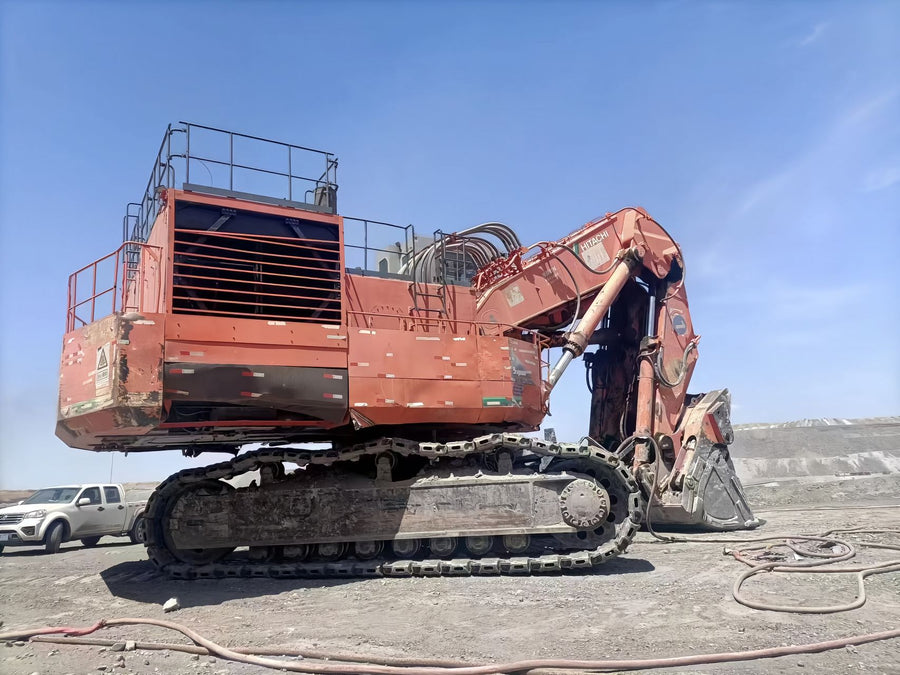

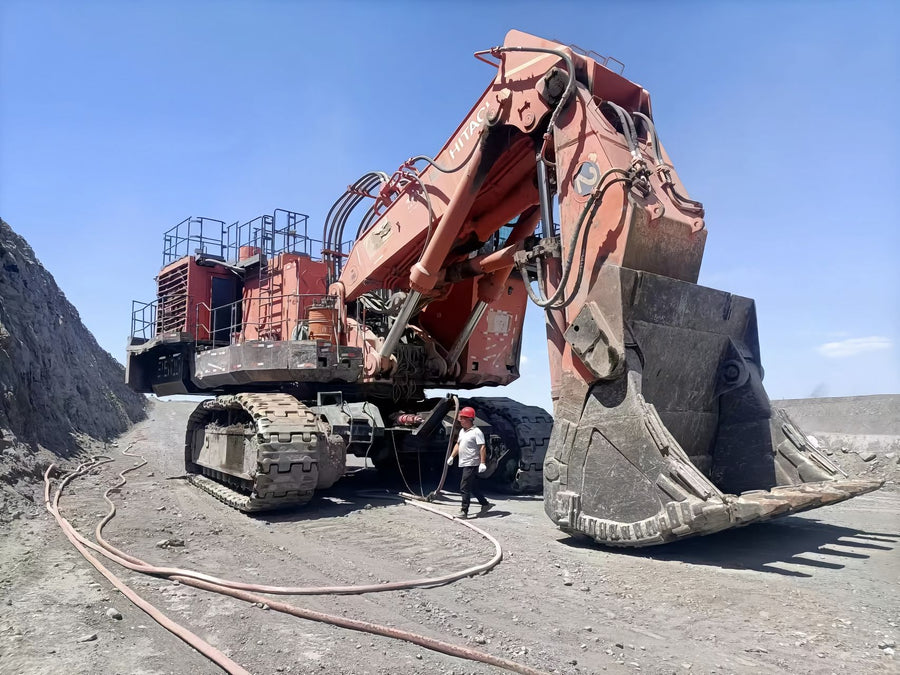

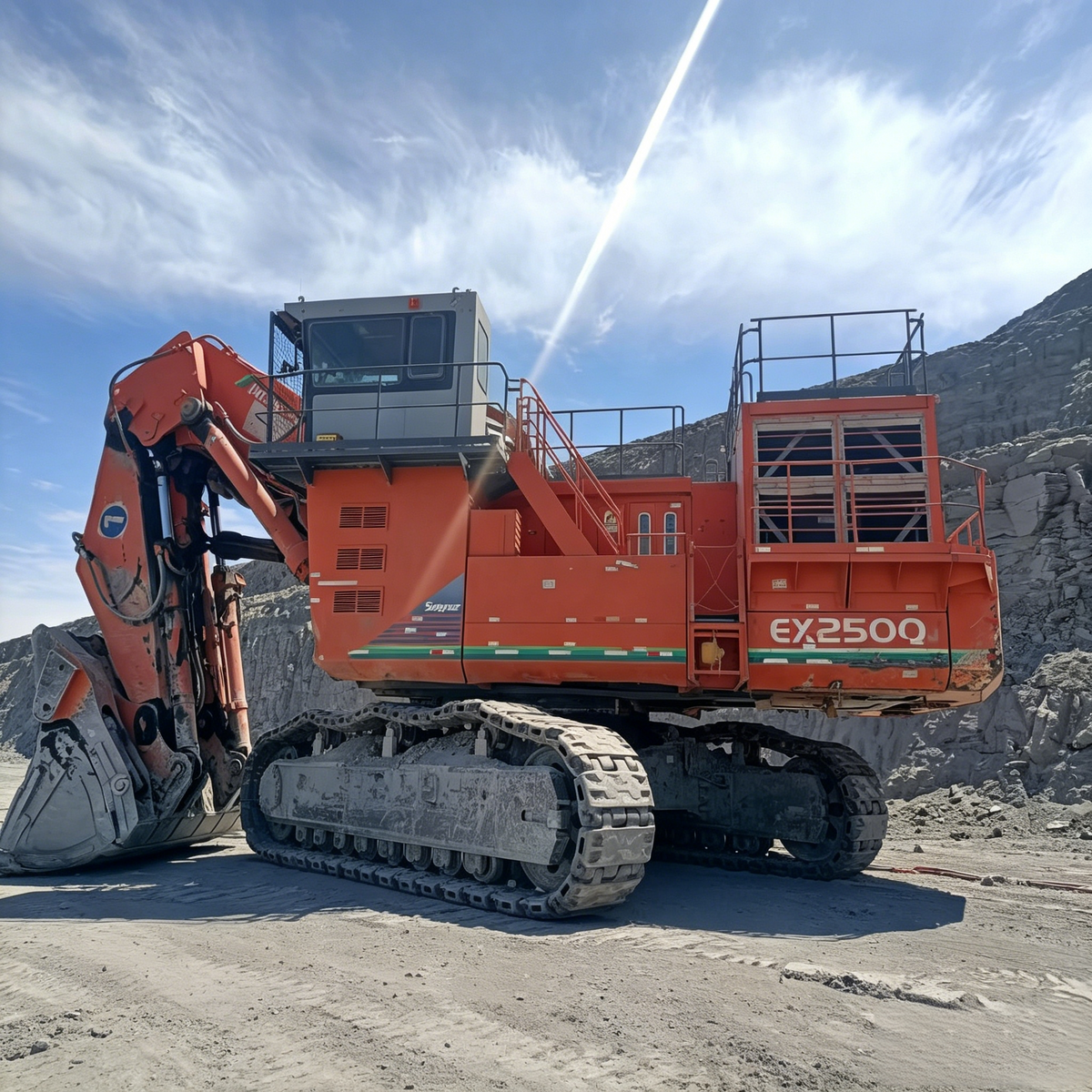

Hitachi EX2500‑6 (Backhoe / Loading Shovel) |
| Operating Weight |
Backhoe: 248,000 kg / Loading Shovel: 249,000 kg |

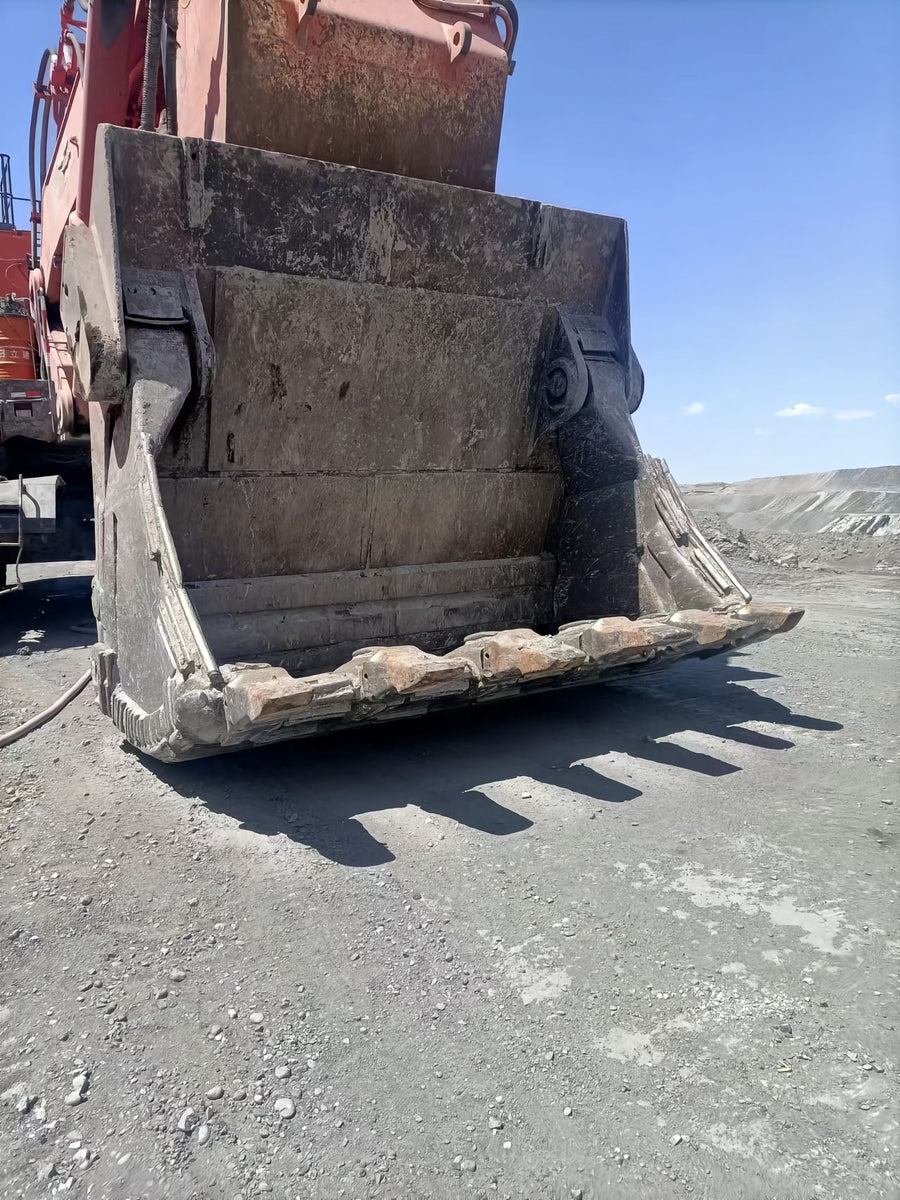

| Standard Bucket Capacity (ISO Heaped) |
15.0 m³ (16.5 m³ max) |
| Overall Dimensions (L×W×H) |
17,870 × 6,000 × 7,250 mm |
| Track Shoe Width |
1,000 mm |
| Track Gauge |
5,000 mm |
| Min. Ground Clearance |
800 mm |
| Track Length on Ground |
6,120 mm |
| Engine Model |
Cummins QSKTA50‑CE (16‑cylinder, turbocharged) |
| Rated Gross Power |
1,044 kW (1,400 HP) @ 1,800 rpm |
| Rated Net Power |
994 kW (1,333 HP) @ 1,800 rpm |
| Displacement |
50 L |
| Emission Standard |
Tier 2 |
| Fuel Tank Capacity |
5,000 L |
| Hydraulic System Capacity |
2,950 L |
| Max Digging Depth (Backhoe) |
8,600 mm |
| Max Digging Radius (Ground Level) |
16,530 mm |
| Max Cutting Height |
16,060 mm |
| Max Dumping Height |
10,330 mm |
| Bucket Digging Force |
890 kN |
| Arm Digging Force |
780 kN |
| Max Traction Force |
1,250 kN |
| Travel Speed (Low/High) |
2.3 km/h |
| Swing Speed |
3.8 rpm |
| Gradeability |
35° (70%) |
| Ground Pressure |
181 kPa |
