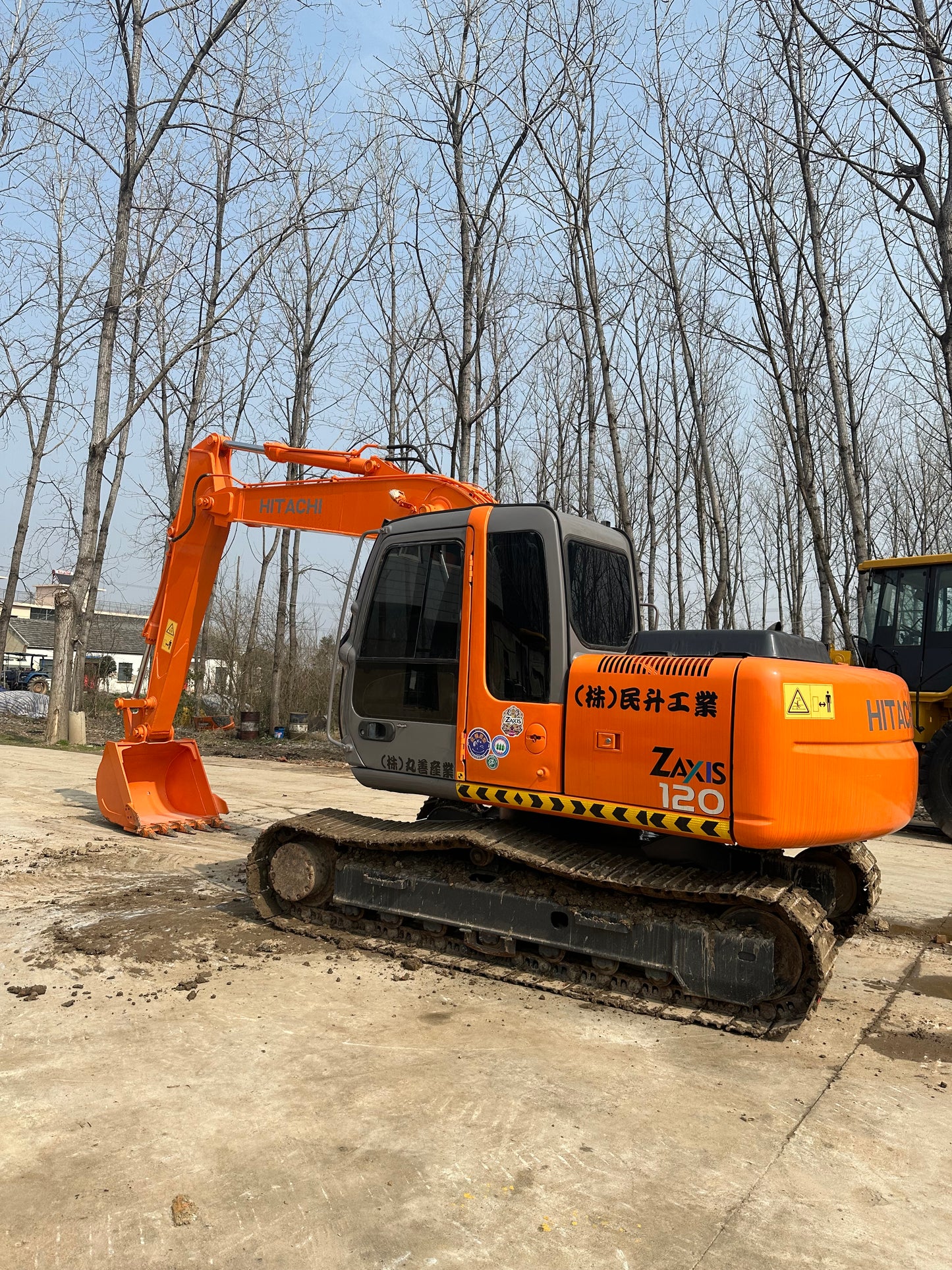

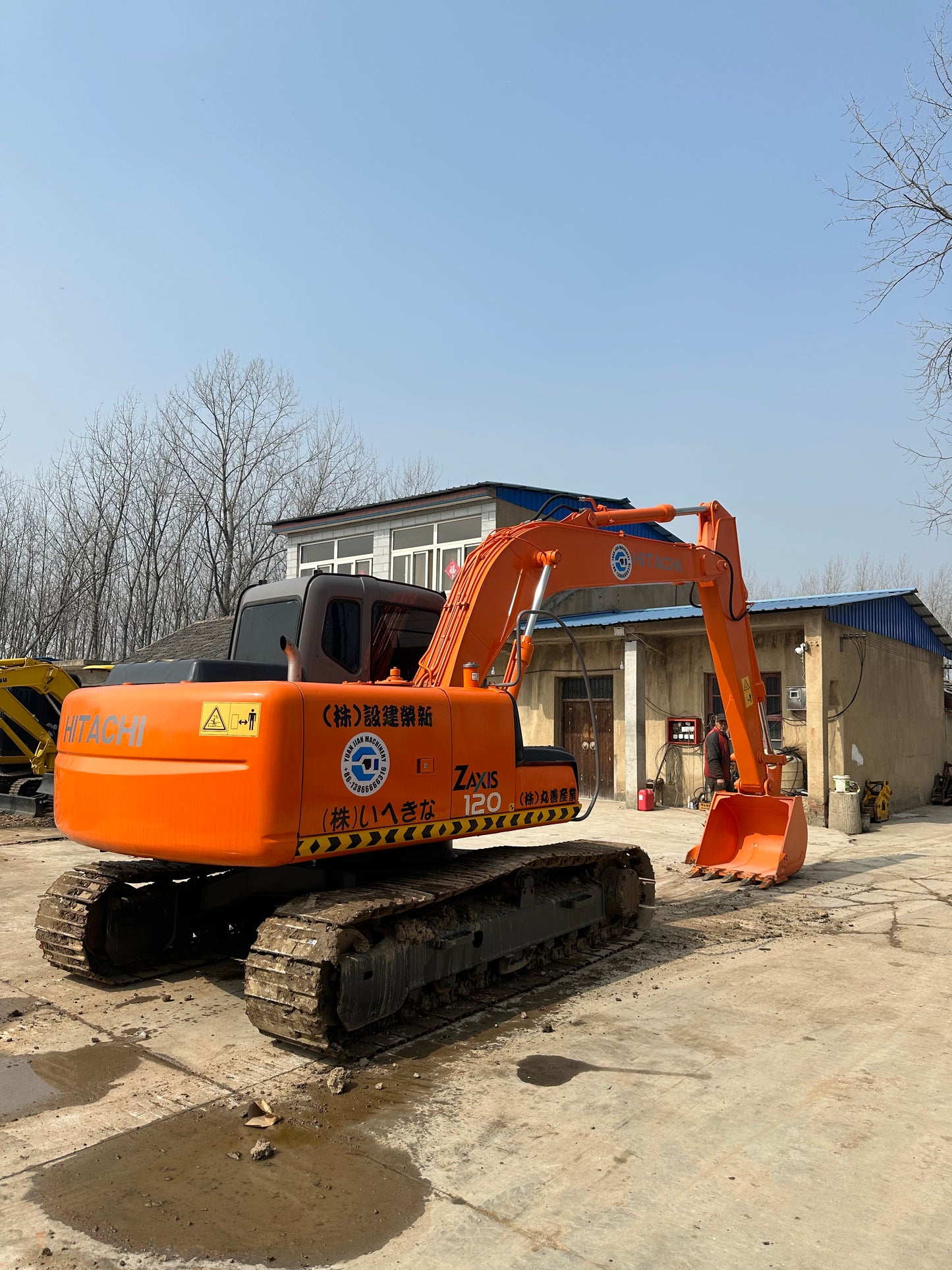

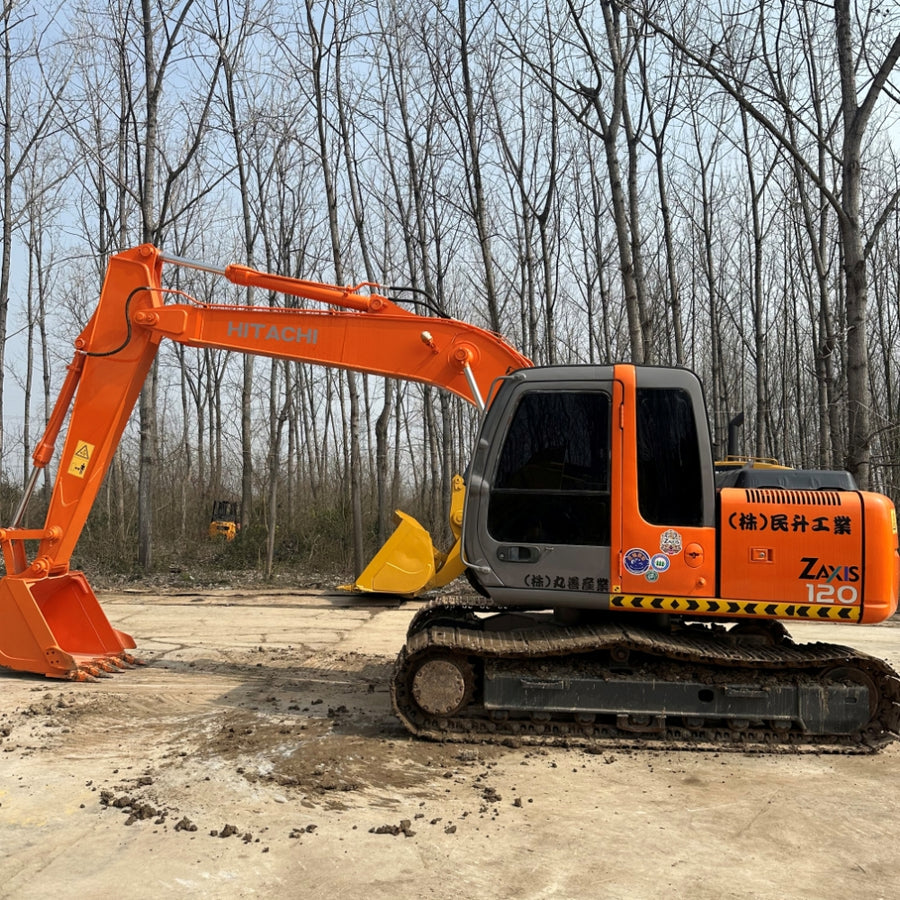

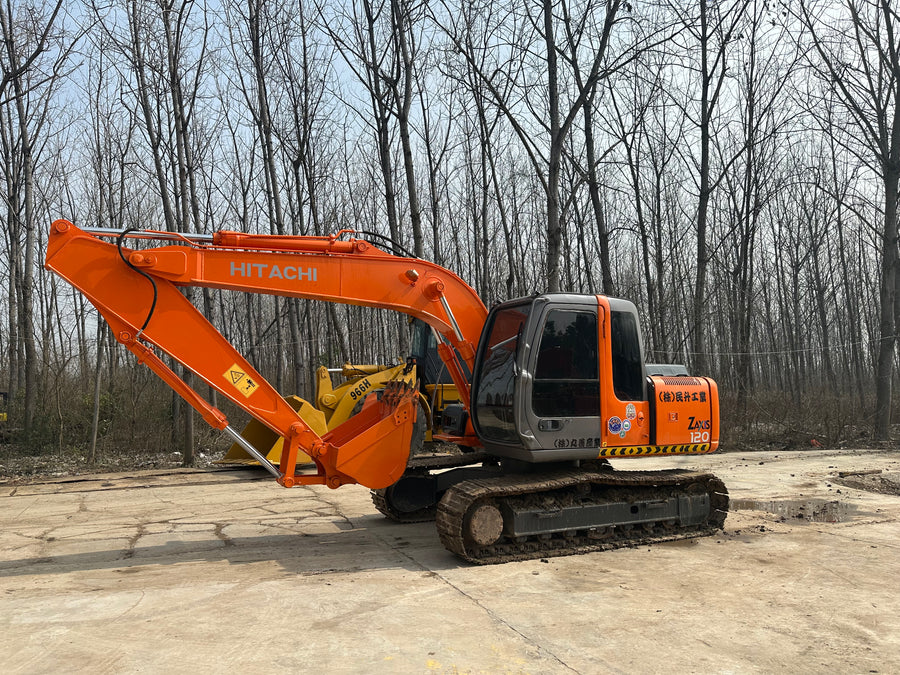

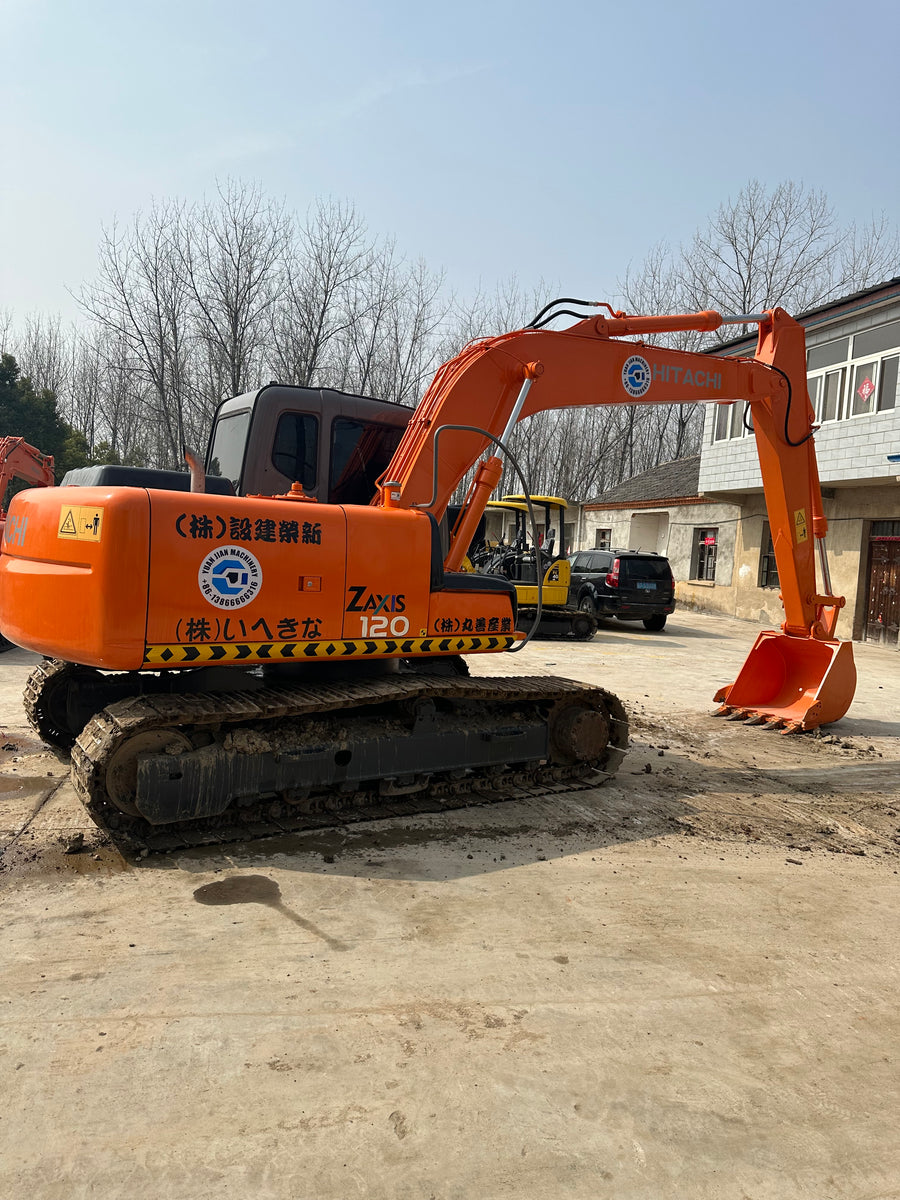

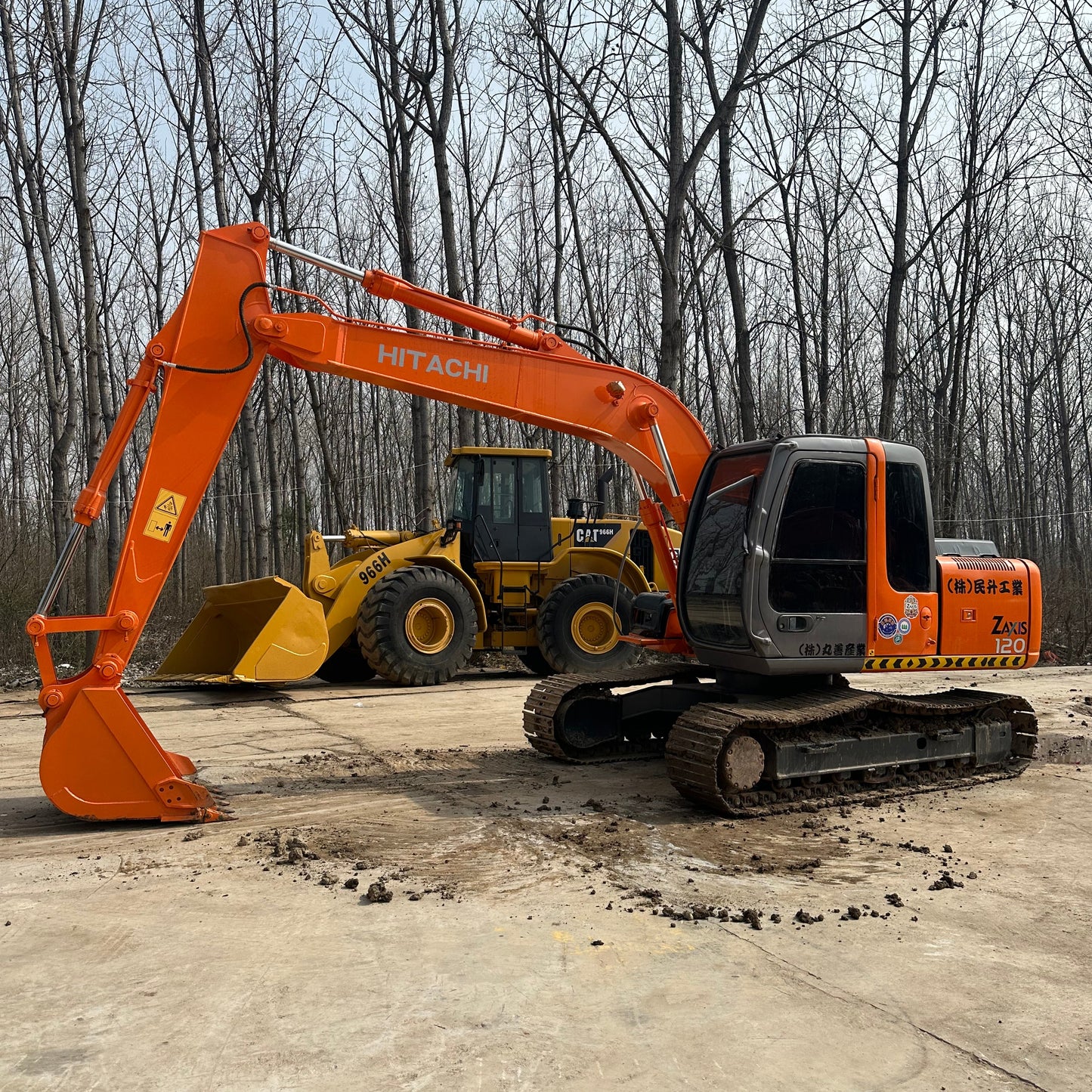

USED HITACHI ZX120

USED HITACHI ZX120

$15,000.00 USD
$15,000.00 USD
Sale Sold out

HITACHI ZX120 Core Specifications (Base Model)


Category Parameters Details
Engine Make Isuzu
Model CC - 4BG1TC (turbocharged, intercooled)
Net Power 66 kW (88 hp) @ 2150 rpm
Displacement 4.329 L (264 cu in)
Max Torque 340 Nm (251 lb - ft) @ 1600 rpm
Operation Operating Weight 12,200 kg (26,896 lbs)日立建机
Bucket Capacity (ISO Heaped) 0.26-0.81 m³ (0.34-1.06 yd³), standard 0.52 m³日立建机
Fuel Capacity 250 L (66.1 gal)
Hydraulic System Fluid Capacity 130 L (34.4 gal)
Swing Speed 13.7 rpm
Max Travel Speed 3.4/5.5 km/h (2.1/3.4 mph)
Ground Pressure 37 kPa (5.37 psi)
Digging Performance Max Digging Depth 5,570 mm (18'3")
Max Digging Reach 8,270 mm (27'2")
Max Cutting Height 8,570 mm (28'1")
Max Dump Height 6,160 mm (20'3")
Digging Force (ISO) Bucket Digging Force 99 kN (22,255 lbs)
Arm Digging Force 65 kN (14,613 lbs)
