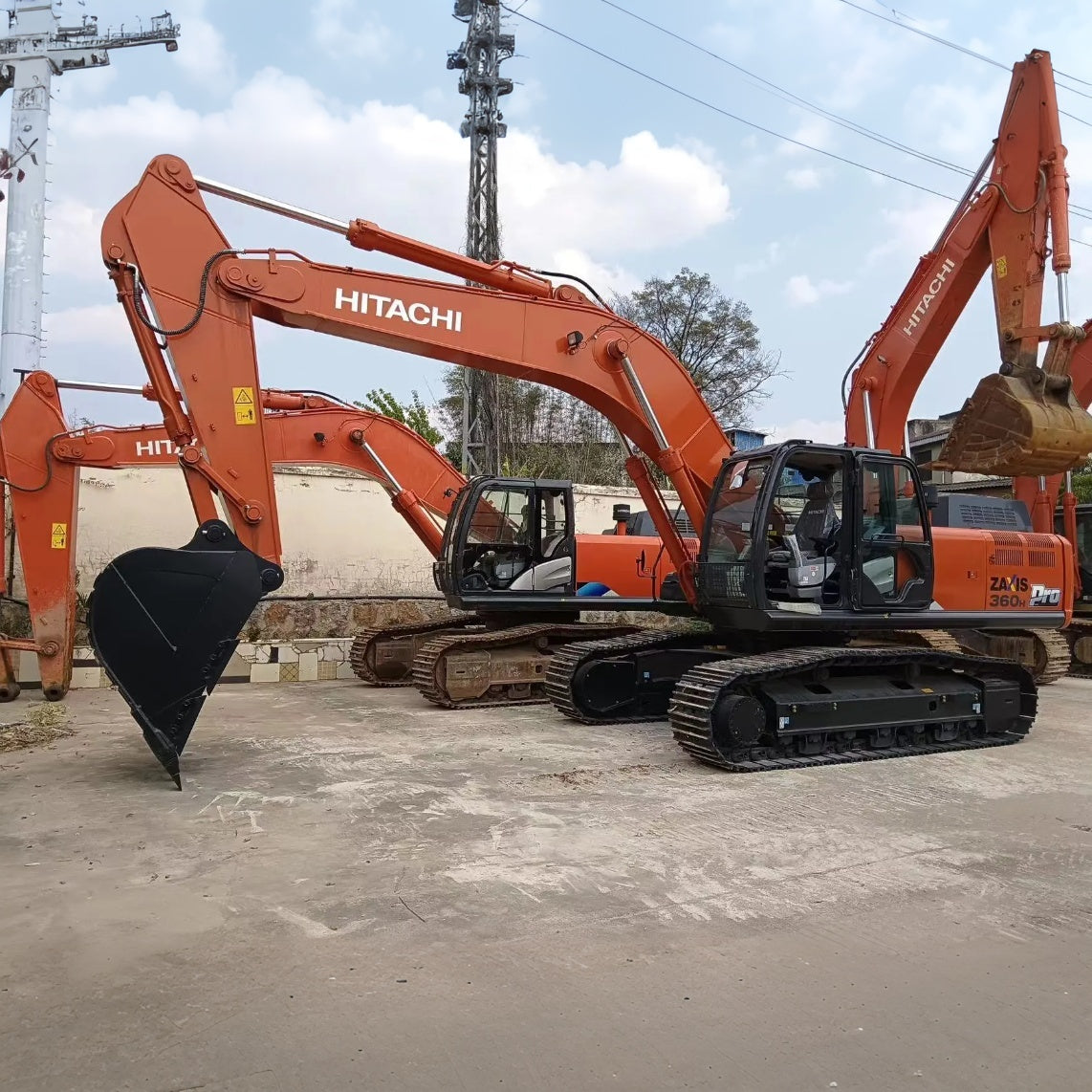

Used HITACHI ZX360H-5A
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: HTCZX360DPL252104
MACHINE REFERENCE PRICE
USD 36,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2023
- Meter hours
- 1753 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
Hitachi Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used HITACHI ZX360H-5A crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: projects that require stable crawler undercarriage performance; earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
CONFIGURATION
HITACHI ZX360H-5A specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
HTCZX360DPL252104
- Listed Price
- USD $36,000
- Full Model Name
- HITACHI ZX360H-5A Heavy-Duty Mining Hydraulic Crawler Excavator
- Operating Weight (Standard Cab + 600mm Steel Track)
- 34200 kg
- Standard Heaped Bucket Capacity (ISO Rock Bucket)
- 1.6 m³ (Optional:1.6~2.0 m³)
Full listing reference specifications
- Overall Transport Length
- 11010 mm
- Overall Transport Width
- 3190 mm
- Overall Transport Height (Cab Top)
- 3270 mm
- Full Transport Height (With Boom Assembly)
- 3520 mm
- Standard Track Shoe Width
- 600 mm
- Track Gauge
- 2590 mm
- Track Length on Ground
- 3910 mm
- Minimum Ground Clearance
- 500 mm
- Rear Swing Radius
- 3590 mm
- Engine Model
- ISUZU GH-6HK1XKSA-01 6-Cylinder Turbocharged Intercooled Diesel Engine
- Engine Type
- Water-cooled, 4-stroke, in-line, turbocharged common rail direct injection diesel
- Rated Net Power (ISO 9249)
- 190 kW @ 1900 rpm
- Engine Displacement
- 7.79 L
- Max Engine Torque
- 1037 N·m @1500 rpm
- Fuel Tank Capacity
- 630 L
- Hydraulic Tank Capacity
- 297 L
- Main Hydraulic Relief Pressure (Standard / Power Boost)
- 34.3 MPa / 38.0 MPa
- Total Main Pump Flow
- 2×184 L/min
- Max Digging Reach (Ground Level)
- 10360 mm
- Max Total Digging Reach
- 11100 mm
- Max Digging Depth
- 6840 mm
- Max Vertical Wall Digging Depth
- 5510 mm
- Max Digging Height
- 9990 mm
- Max Dumping Height
- 6940 mm
- Bucket Digging Force (ISO Standard)
- 246 kN
- Arm Digging Force (ISO Standard)
- 195 kN
- Max Drawbar Pull Force
- 268 kN
- Swing Rotation Speed
- 10.5 rpm
- Travel Speed (Low / High Gear)
- 3.3 km/h / 5.5 km/h
- Gradeability
- 35° (70%)
- Ground Contact Pressure
- 69.0 kPa
- Standard Boom Length
- 6470 mm
- Standard Stick Length
- 3200 mm
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui, China?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
