USED HITACHI ZX470

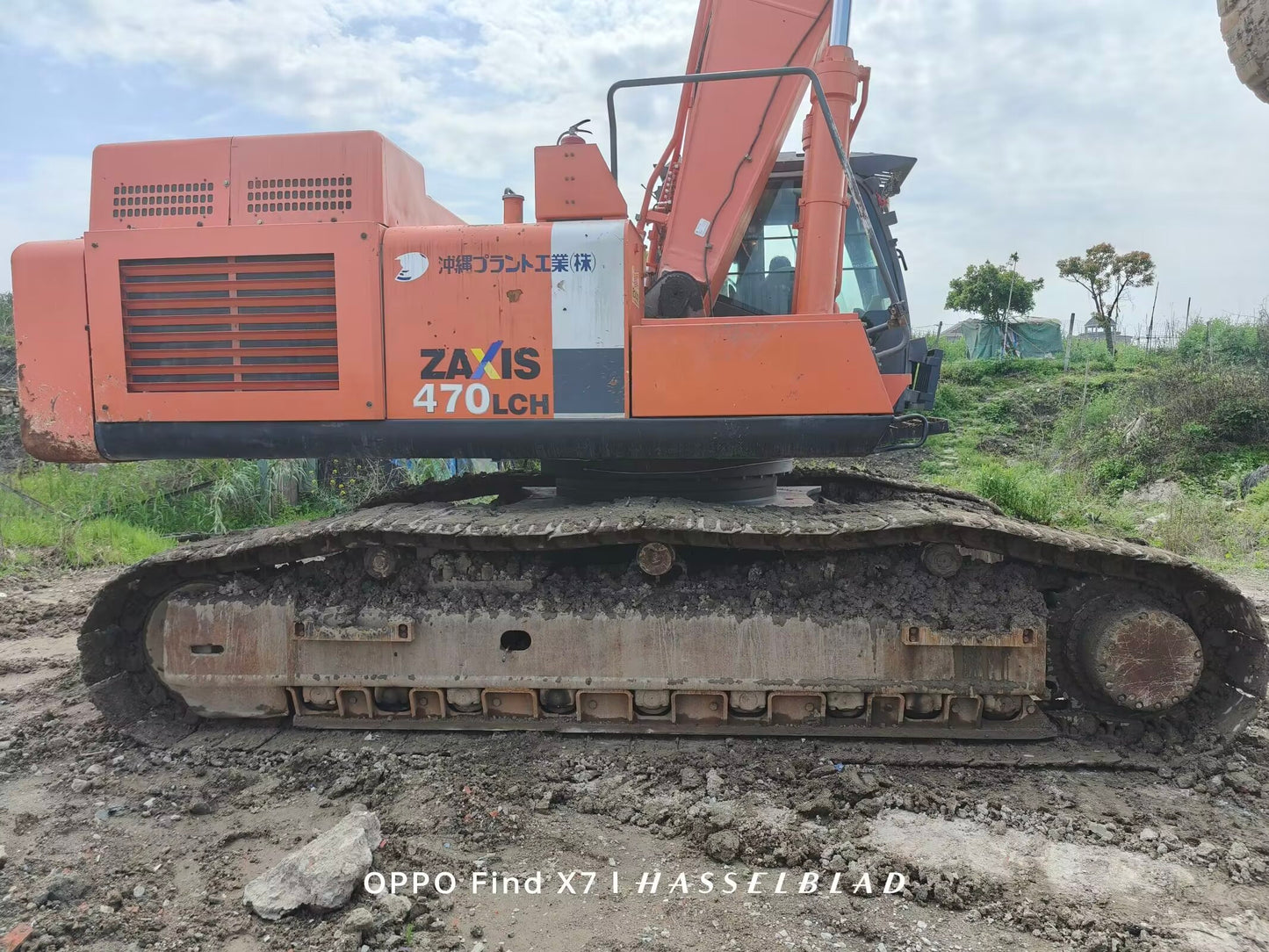

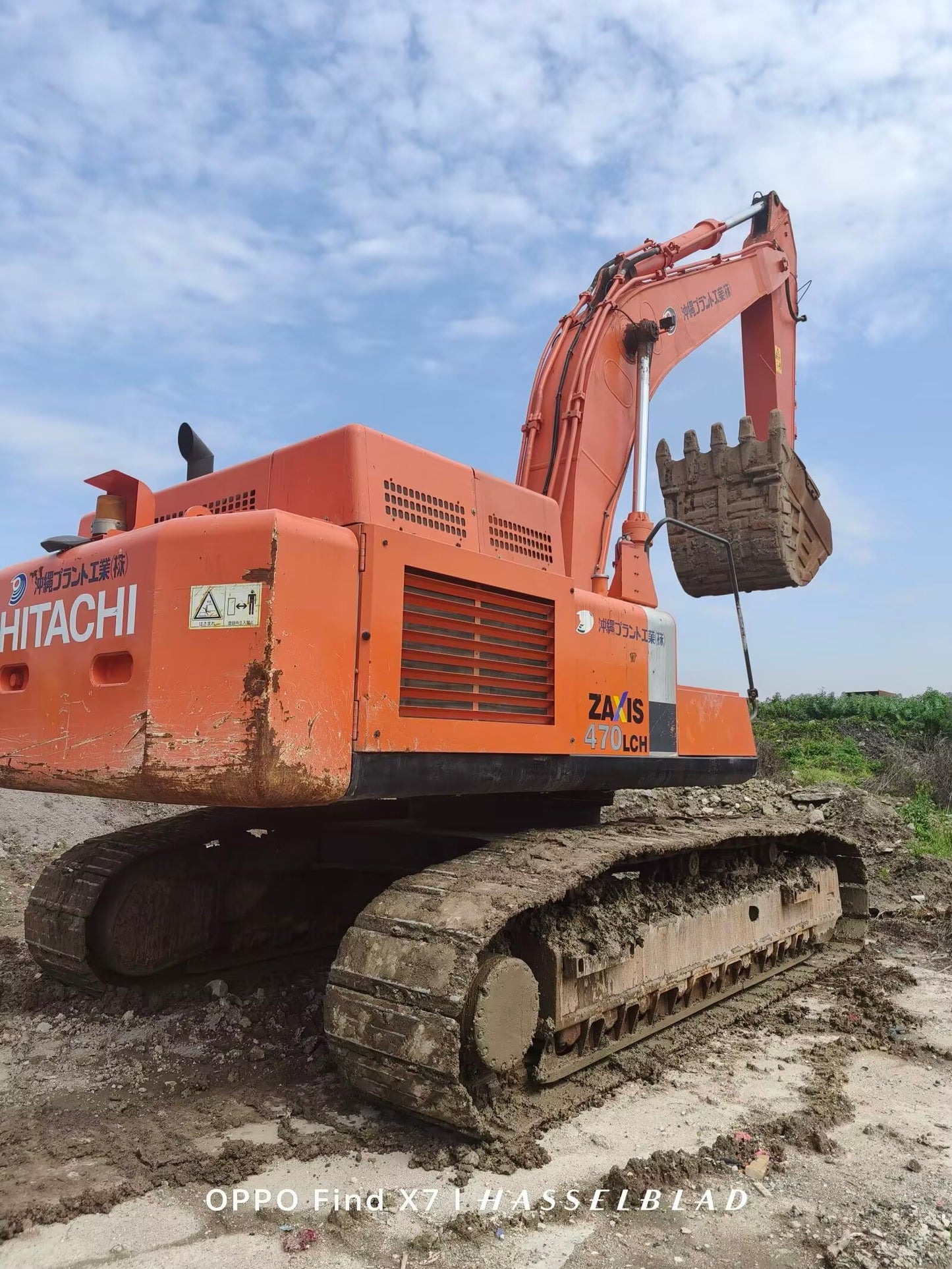

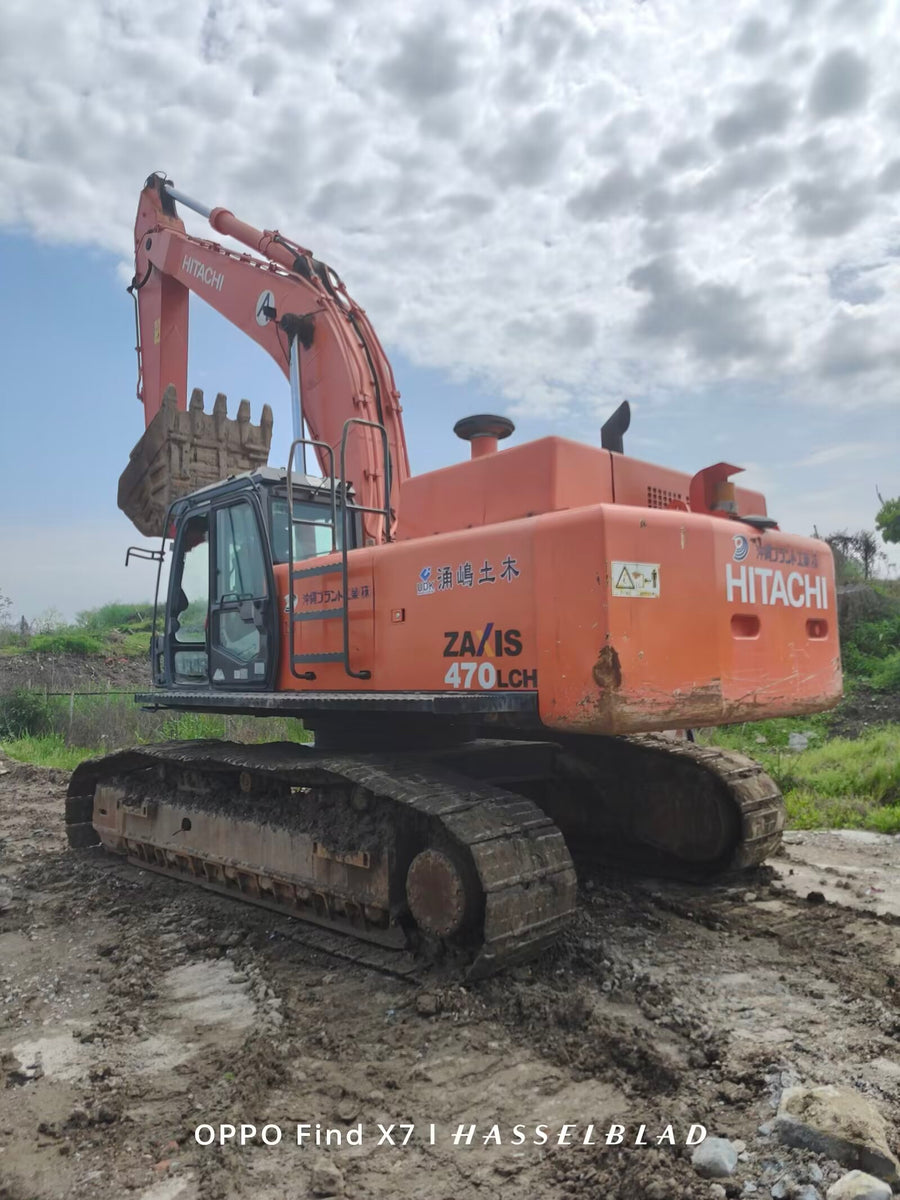

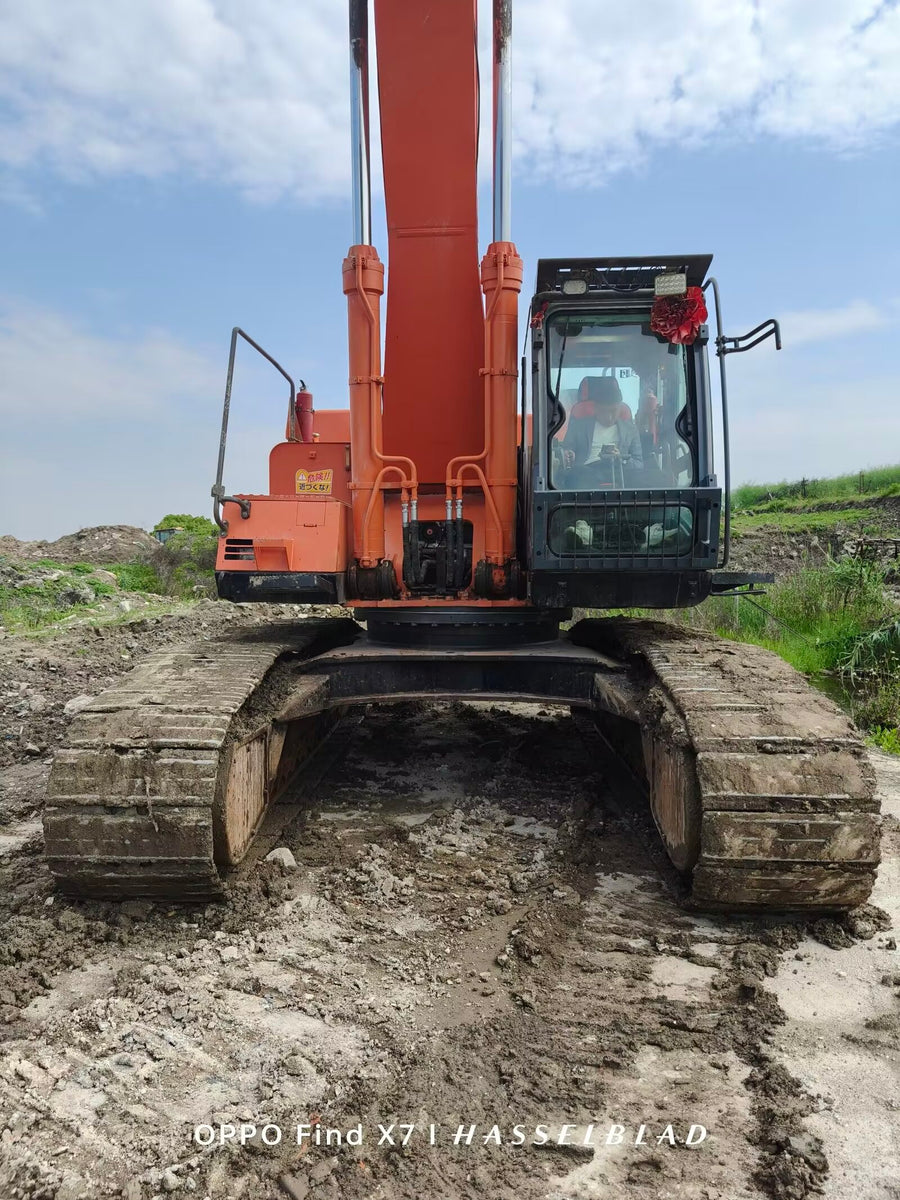

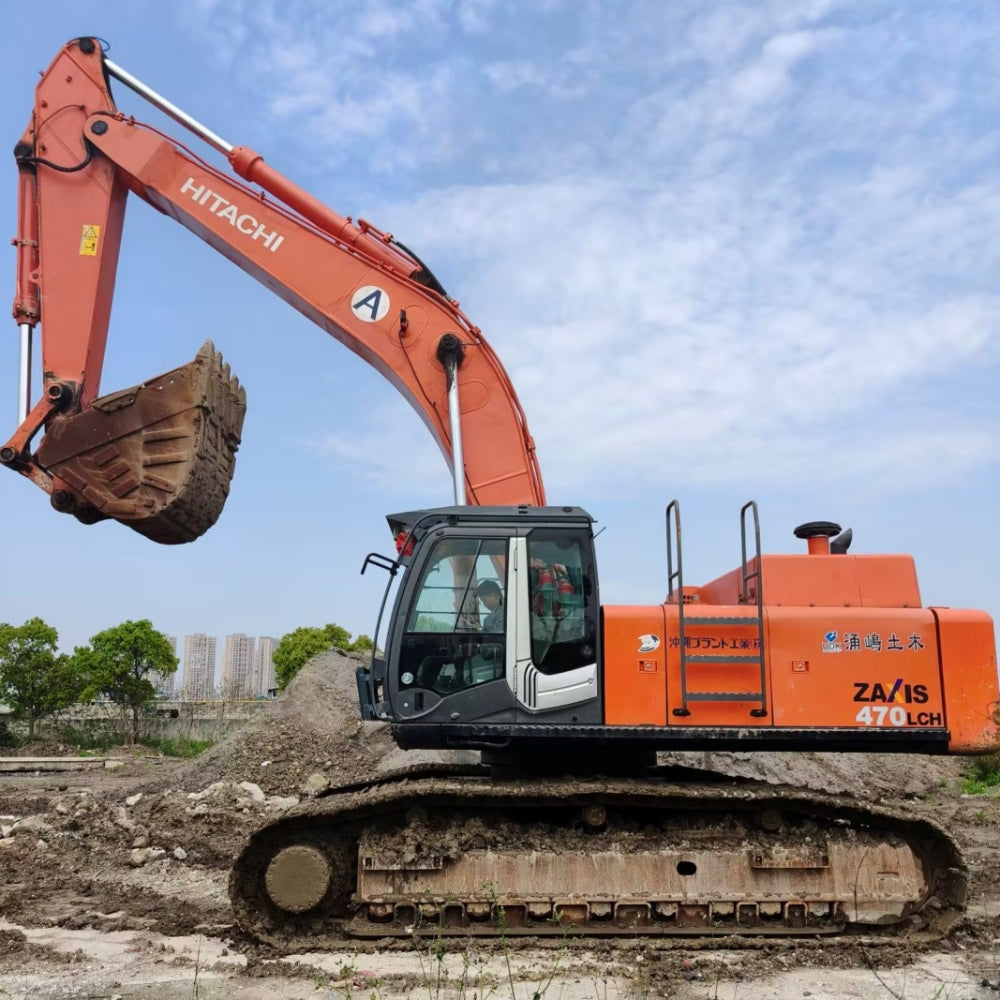

Name: USED HITACHI ZX470
Brand: HITACHI
Price: 42000.00 USD
Availability: InStock

$42,000.00 USD

Sale Sold out

HITACHI ZX470LCH-3 Core Specifications

Category	Parameter	Specification
Basic Model	Model Name	HITACHI ZX470LCH-3 (Crawler Excavator)
Engine	Engine Model	Isuzu AH-6WG1XYSA-01 (Turbocharged & Intercooled)
	Rated Power	260 kW (348 HP) @ 1800 rpm
	Displacement	15.681 L (957 cu in)
	Emission Standard	EU Stage IIIA / EPA Tier 3
Operating Performance	Operating Weight	48100 kg (typical)
	Max. Bucket Capacity (ISO Heaped)	2.5 m³ (standard); 2.1-2.6 m³ (optional)
	Max. Digging Depth	7770 mm (7.77 m)
	Max. Digging Radius	12060 mm (12.06 m)
	Bucket Digging Force (ISO)	296 kN
	Swing Speed	9 rpm
Dimensions	Transport Length	11910 mm (11.91 m)
	Transport Width	3770 mm (3.77 m)
	Transport Height	3450 mm (3.45 m)
Mobility	Travel Speed	3.4/5.5 km/h
	Gradeability	70%
Hydraulic System	Main Pump Flow	720 L/min (189.9 gal/min)
	System Pressure	34.3 MPa (4980 psi)
