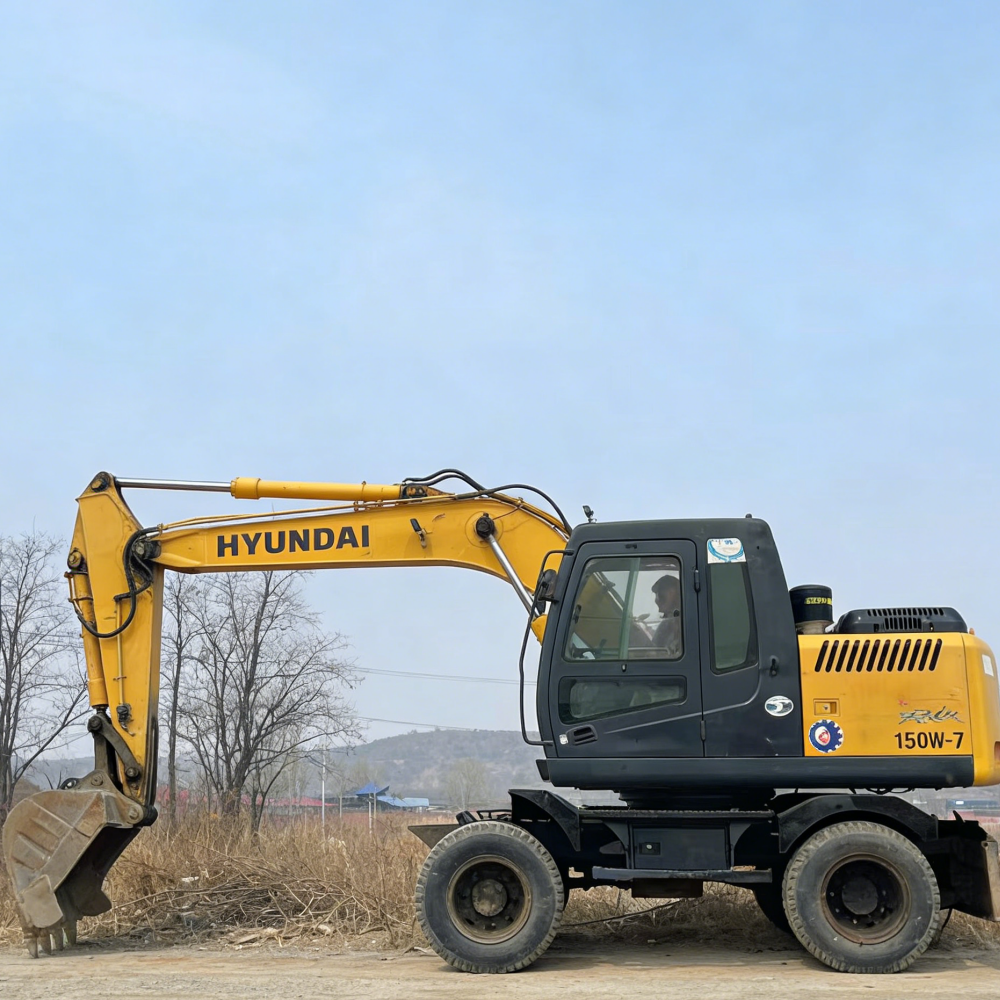

Used HYUNDAI R150W
Wheel Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: HCER150WNMV516996
MACHINE REFERENCE PRICE
USD 15,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2021
- Meter hours
- 3,124 h
- Condition
- Used
- Machine type
- Wheel Excavator
- Power · reference
- 113 hp (84 kW) @ 2,100 rpm
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
HYUNDAI Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used HYUNDAI R150W wheel excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: urban construction, road maintenance, and municipal repair work; jobs requiring faster road transfer between nearby work sites; drainage, utility, and light earthmoving projects; contractors comparing tire condition, steering, and hydraulic response. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- engine start, hydraulic pump response, boom, arm, bucket, and swing movement
- tire condition, axle, steering, brake response, and travel drive
- outrigger or dozer blade function when the machine is equipped
- bucket, pins, hoses, cylinders, leakage points, and cab condition
CONFIGURATION
HYUNDAI R150W specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
HCER150WNMV516996
- Engine
- Model: Cummins B3.9-C Type: 4-cylinder, water - cooled diesel Displacement: 3.9 L (237.9 cu in) Rated Power: 113 hp (84 kW) @ 2,100 rpm
- Rated Power
- 113 hp (84 kW) @ 2,100 rpm
- Operating Weight
- 29,762 lb (13,500 kg)
- Bucket Capacity
- 0.55 m³ (0.72 yd³); Range: 0.23-0.71 m³ (0.30-0.93 yd³)
Full listing reference specifications
- Bucket Digging Force
- 83.4 kN (18,750 lbf)
- Reference Max. Digging Depth
- Reference class range, confirm by boom/stick configuration
- Reference Travel System
- Wheeled travel chassis; tires, axles, steering and brake system should be inspected
- Basic Info
- Model: Hyundai R150W-7 Type: Hydraulic Wheel Excavator Operating Weight: 29,762 lb (13,500 kg) Standard Bucket Capacity: 0.55 m³ (0.72 yd³); Range: 0.23-0.71 m³ (0.30-0.93 yd³) Boom Length: 15.09 ft (4,600 mm) Stick Length: 6.89 ft (2,100 mm)
- Hydraulics
- System Relief Pressure: 3,046 psi (21 MPa) Main Pump Type: 2×Variable Displacement Axial Piston Pump Main Pump Flow: 69.7 gal/min (264 L/min) (2×132 L/min) Hydraulic Fluid Capacity: 32.8 gal (124 L)
- Performance
- Max Travel Speed: 18.6 mph (30 km/h) (High gear); 4.9 mph (7.9 km/h) (Low gear) Swing Speed: 14.5 rpm Bucket Digging Force: 83.4 kN (18,750 lbf) Stick Digging Force: 71.6 kN (16,090 lbf) Max Digging Depth: 15.75 ft (4,800 mm) Max Digging Reach (Ground Level): 25.59 ft (7,800 mm) Max Loading Height: 17.72 ft (5,400 mm) Gradeability: 55% (28.8°)
- Capacities
- Fuel Tank: 71.3 gal (270 L) Engine Oil Capacity: 4.0 gal (15.3 L) Cooling System Fluid Capacity: 6.6 gal (25 L)
- Dimensions
- Transport Length×Width×Height: 25.59 ft×8.20 ft×11.48 ft (7,800×2,500×3,500 mm) Wheelbase: 8.53 ft (2,600 mm) Tire Size: 12.00-20-16PR Tail Swing Radius: 7.58 ft (2,310 mm) Min Ground Clearance: 1.43 ft (435 mm)
- Electrical System
- Voltage: 24 V Alternator Output: 50 A
- Boom Length
- 15.09 ft (4,600 mm)
- Hydraulic Fluid Capacity
- 32.8 gal (124 L)
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. The stock yard location is Hefei, Anhui. Buyer-arranged inspection, video call inspection, or extra photos can be supported before purchase.
Can you provide working video before payment?
Yes. We can provide a walk-around video, operating video, and key condition photos for remote buyers.
Can you help with export and shipping?
Yes. We support loading, export documents, customs clearance assistance, and shipping quotation to your destination port or country.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this HYUNDAI R150W
Destination port · Application · Preferred condition
