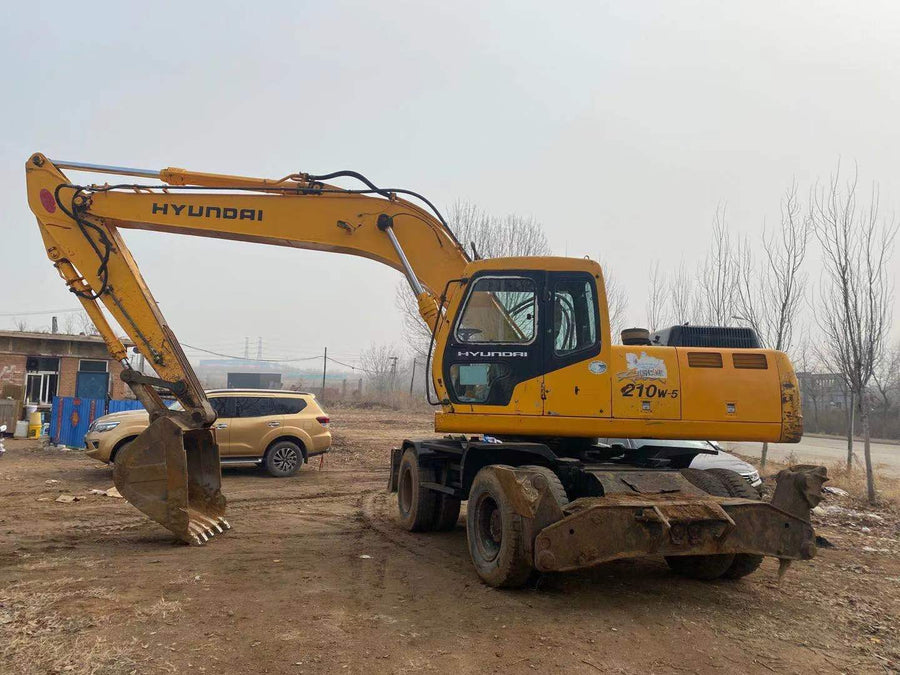

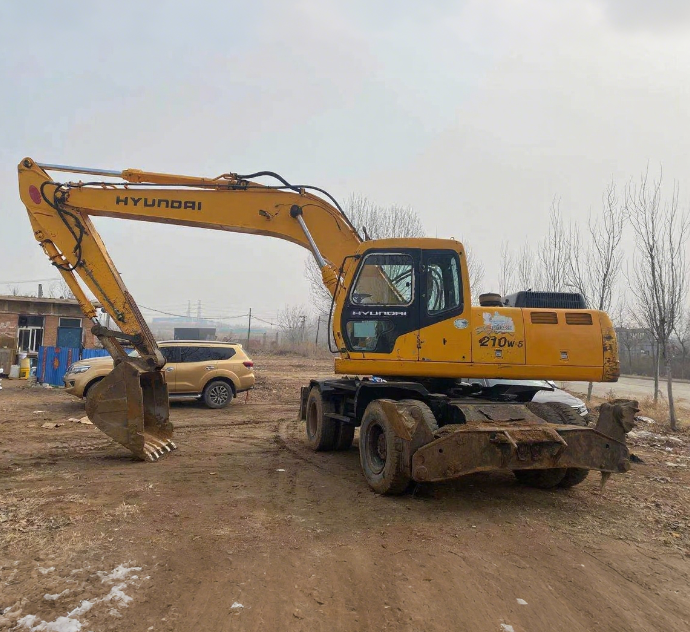

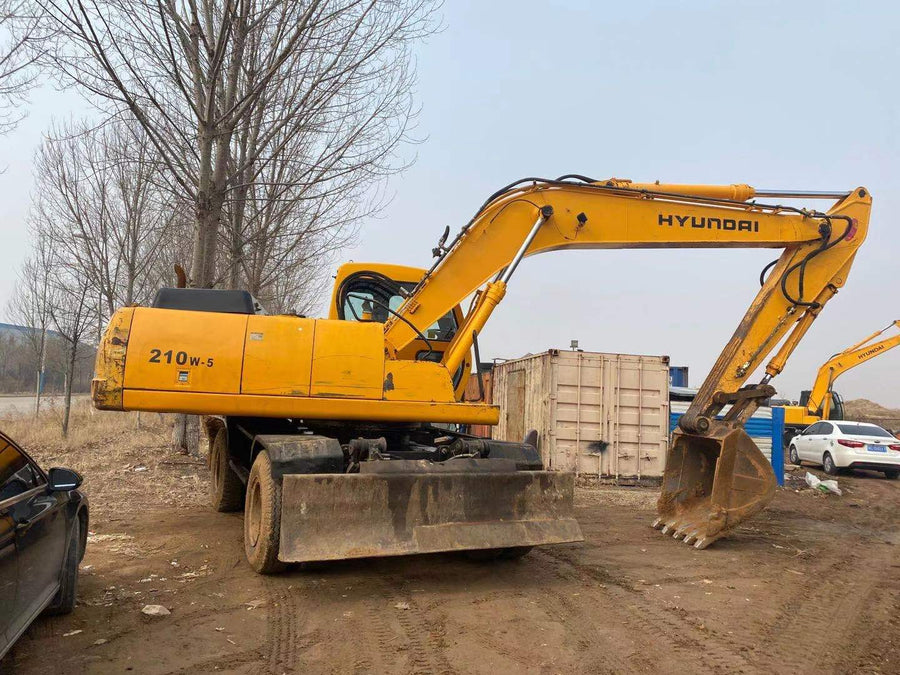

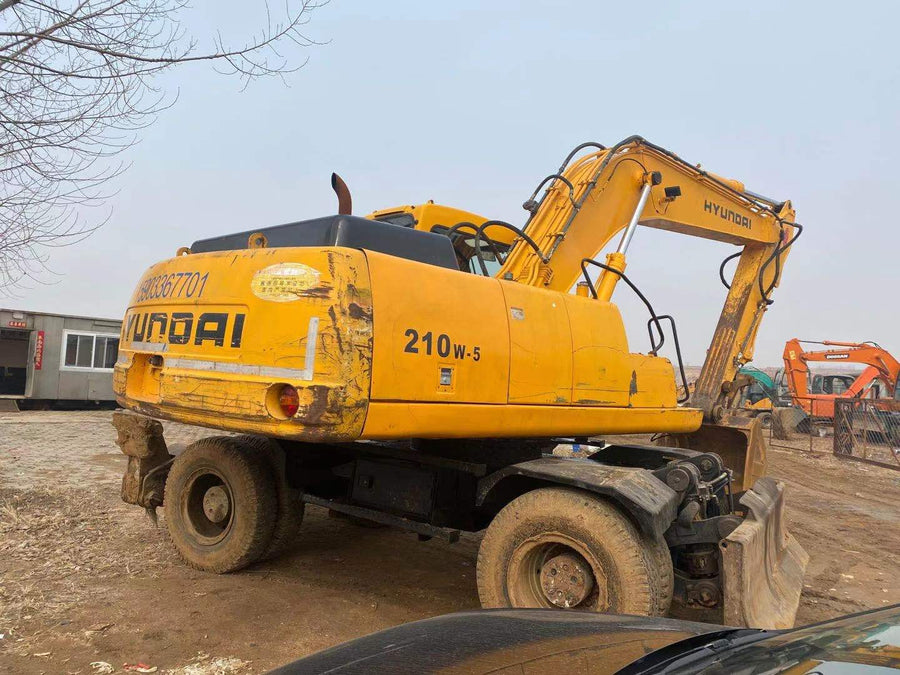

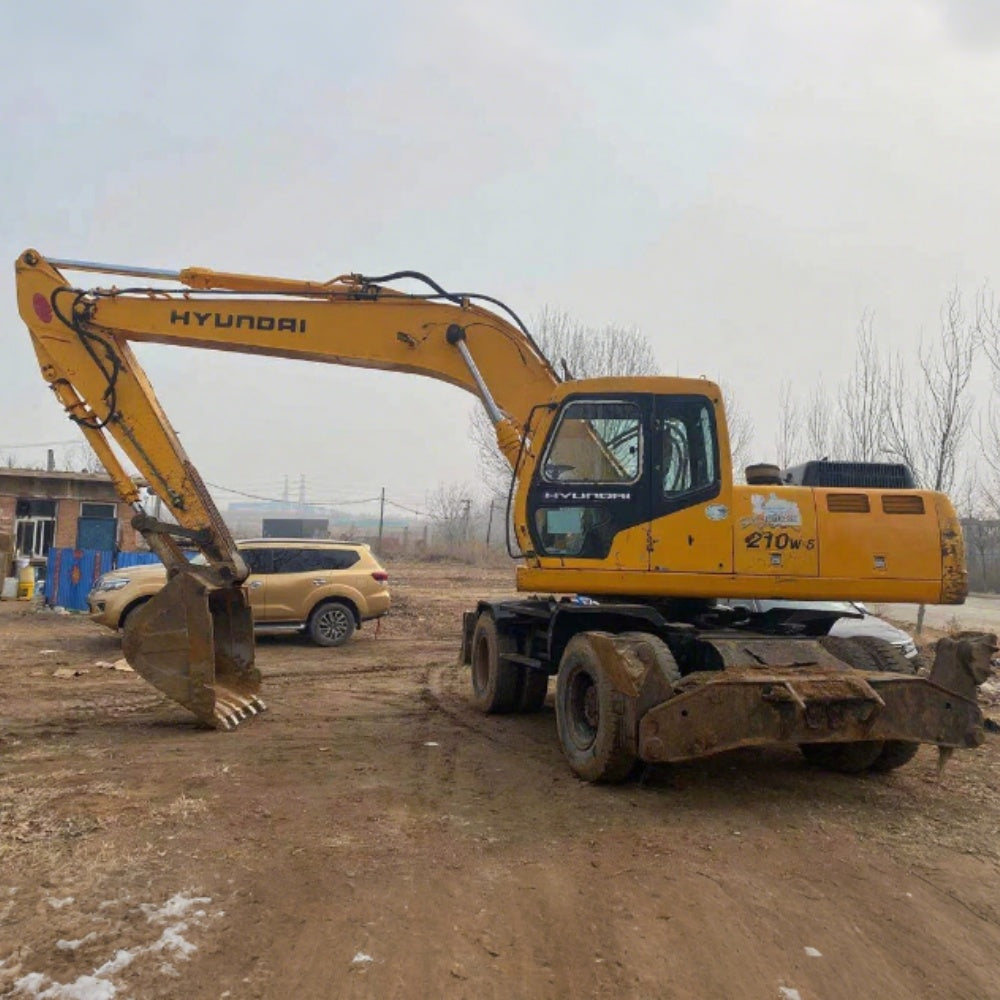

USED HYUNDAI R210W-5

USED HYUNDAI R210W-5

$21,000.00 USD
$21,000.00 USD
Sale Sold out
Category Parameters
Basic Info Model: Hyundai R210W-5

Type: Hydraulic Wheel Excavator

Operating Weight: 44,202 lb (20,050 kg)

Standard Bucket Capacity: 0.92 m³ (1.20 yd³); Range: 0.51-1.16 m³ (0.67-1.52 yd³)

Boom Length: 18.64 ft (5,680 mm)

Stick Length: 9.58 ft (2,920 mm)
Engine Model: Cummins B5.9-C

Type: 6-cylinder, water-cooled, 4-stroke turbocharged diesel

Displacement: 359.9 cu in (5.9 L)

Rated Power: 167 hp (124 kW) @ 1,950 rpm

Max Torque: 487.5 lbf-ft (661 N•m) @ 1,500 rpm

Cooling System: Water-cooled
Hydraulics System Relief Pressure: 5,076 psi (35 MPa)

Main Pump Flow: 149.3 gal/min (565 L/min) (2×222 L/min)

Hydraulic Fluid Capacity: 52.8 gal (200 L)

Main Pump Type: 2×Variable Displacement Axial Piston Pumps
Performance Max Travel Speed: 19.9 mph (32 km/h) (High gear); 5.0 mph (8 km/h) (Low gear)

Swing Speed: 12.5 rpm

Bucket Digging Force: 142.4 kN (32,013 lbf)

Stick Digging Force: 105.3 kN (23,672 lbf)

Max Digging Depth: 21.49 ft (6,550 mm)

Max Digging Reach (Ground Level): 32.55 ft (9,920 mm)

Max Digging Height: 31.40 ft (9,570 mm)

Max Loading Height: 22.28 ft (6,790 mm)

Gradeability: 35% (19.3°)
Capacities Fuel Tank: 92.5 gal (350 L)

Engine Oil Capacity: 4.8 gal (18 L)

Cooling System Fluid Capacity: 7.9 gal (30 L)
Dimensions Transport Length×Width×Height: 30.74 ft×8.73 ft×10.40 ft (9,370×2,660×3,170 mm)

Wheelbase: 9.58 ft (2,920 mm)

Tire Size: 14.00-24-20PR

Tail Swing Radius: 8.86 ft (2,700 mm)

Min Ground Clearance: 1.54 ft (470 mm)
Electrical System Voltage: 24 V

Alternator Output: 50 A
