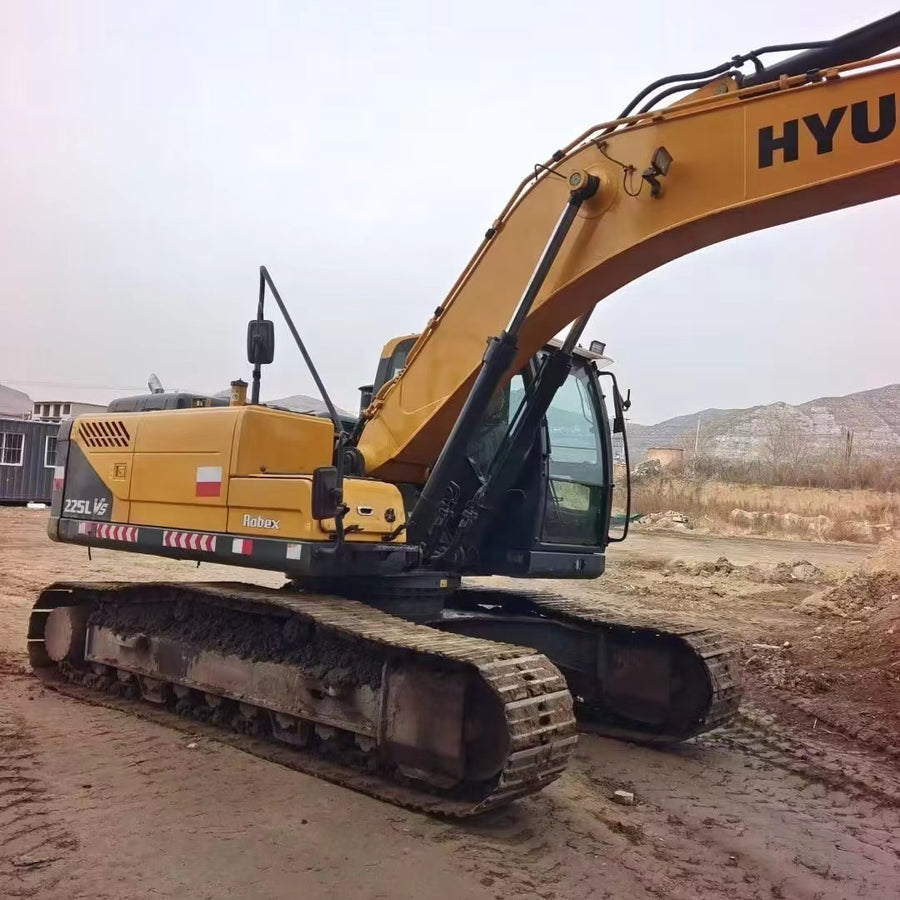

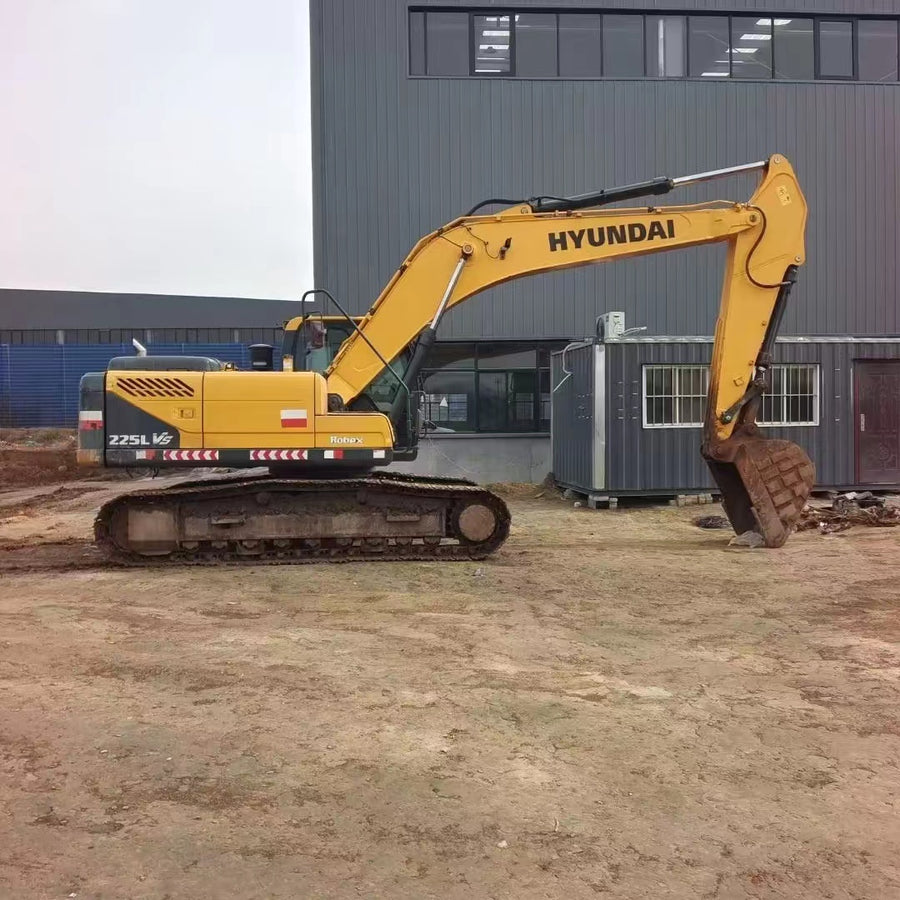

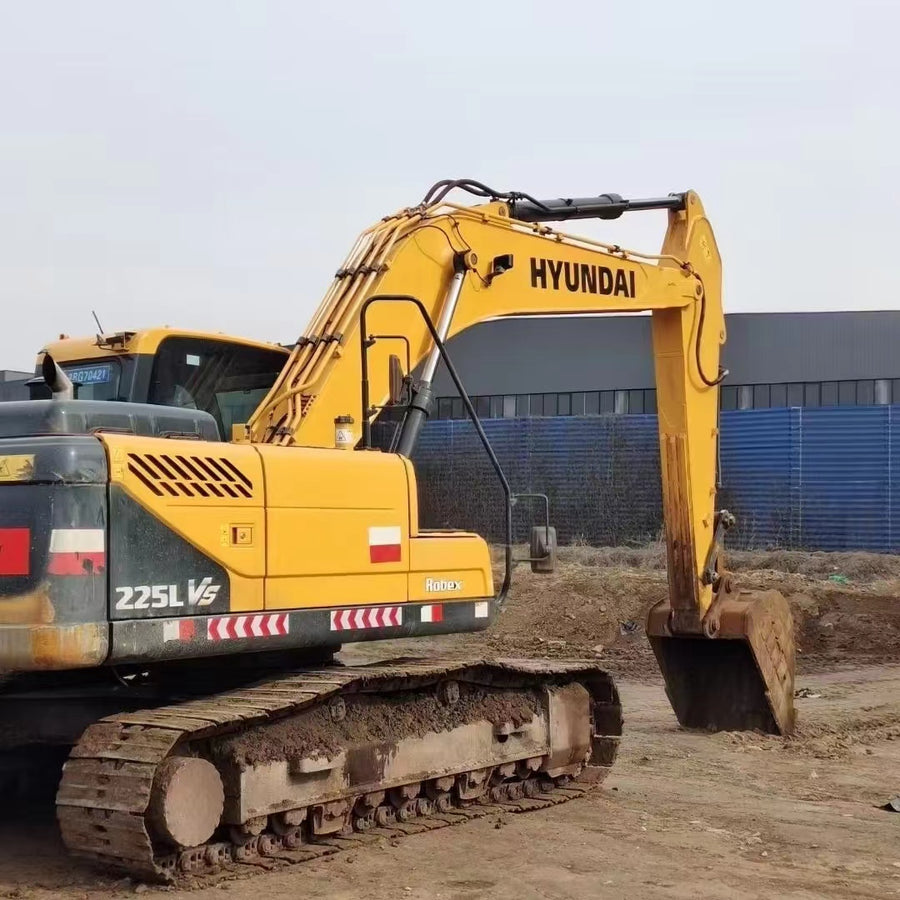

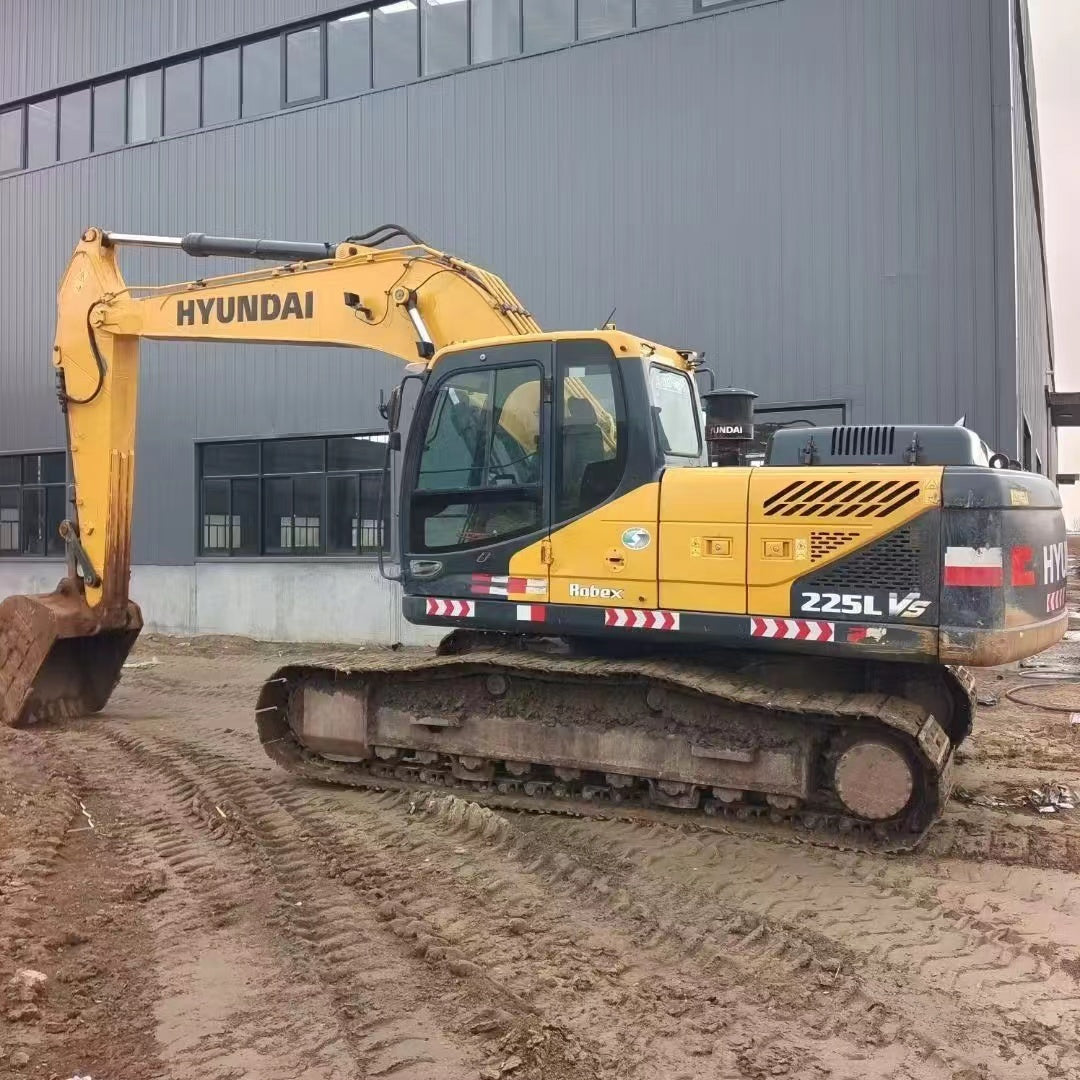

USED HYUNDAI R225LVS
USED HYUNDAI R225LVS
Regular price
$22,000.00 USD
Regular price
Sale price
$22,000.00 USD
Quantity
Couldn't load pickup availability
HYUNDAI R225LVS Core Specifications (English)
| Category | Parameter | Details |
|---|---|---|
| Model Identification | Model Name | HYUNDAI R225LVS (Crawler Excavator) |
| Basic Specifications | Operating Weight | 22,570 kg |
| Bucket Capacity | 1.05 m³ | |
| Boom Length | 5,680 mm | |
| Stick Length | 2,920 mm | |
| Transport Dimensions (L×W×H) | 9,550×2,990×3,080 mm | |
| Engine System | Engine Model | HYUNDAI HE6.7 / CUMMINS QSB7 (varies by region) |
| Rated Power | 113 kW (151.4 HP) / 1,900 rpm | |
| Displacement | 6.7 L | |
| Max. Torque | 630 N·m / 1,500 rpm (corrected from original data) | |
| Cooling Method | Water - cooled | |
| Performance | Travel Speed (High/Low) | 5.3/3.4 km/h |
| Gradeability | 35° (70%) | |
| Bucket Digging Force | 152.0 kN | |
| Stick Digging Force | 109.8 kN | |
| Hydraulic System | Main Pump Type | Variable displacement piston pump (2 units) |
| Main Pump Max. Flow | 222 L/min × 2 | |
| Main Relief Valve Pressure | 35 MPa | |
| Swing Circuit Pressure | 26.5 MPa | |
| Fuel & Hydraulic Tank | Fuel Tank Capacity | 400 L |
| Hydraulic Oil Tank Capacity | 160 L |
