| Model |

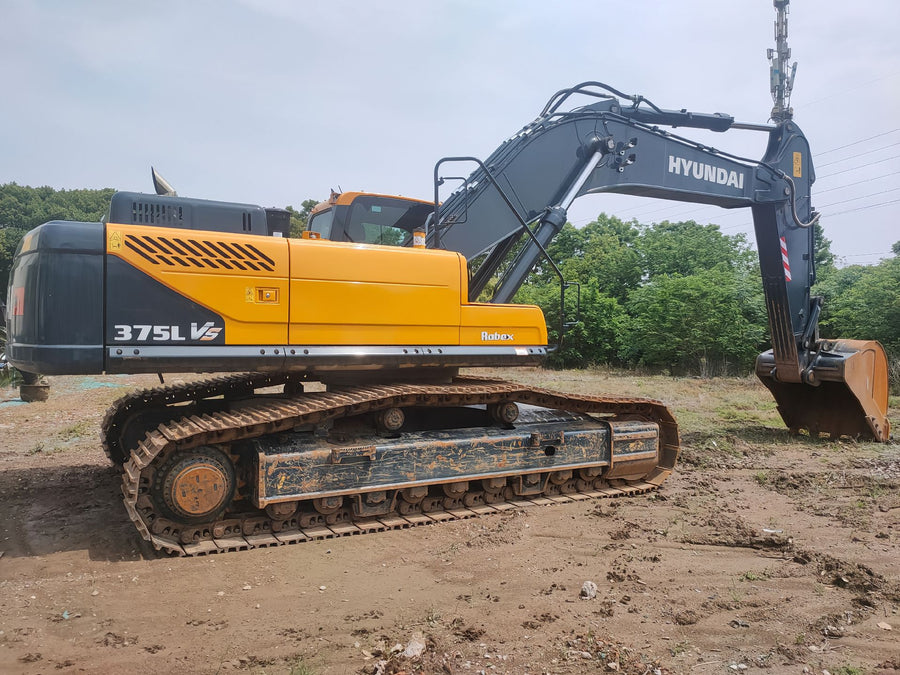

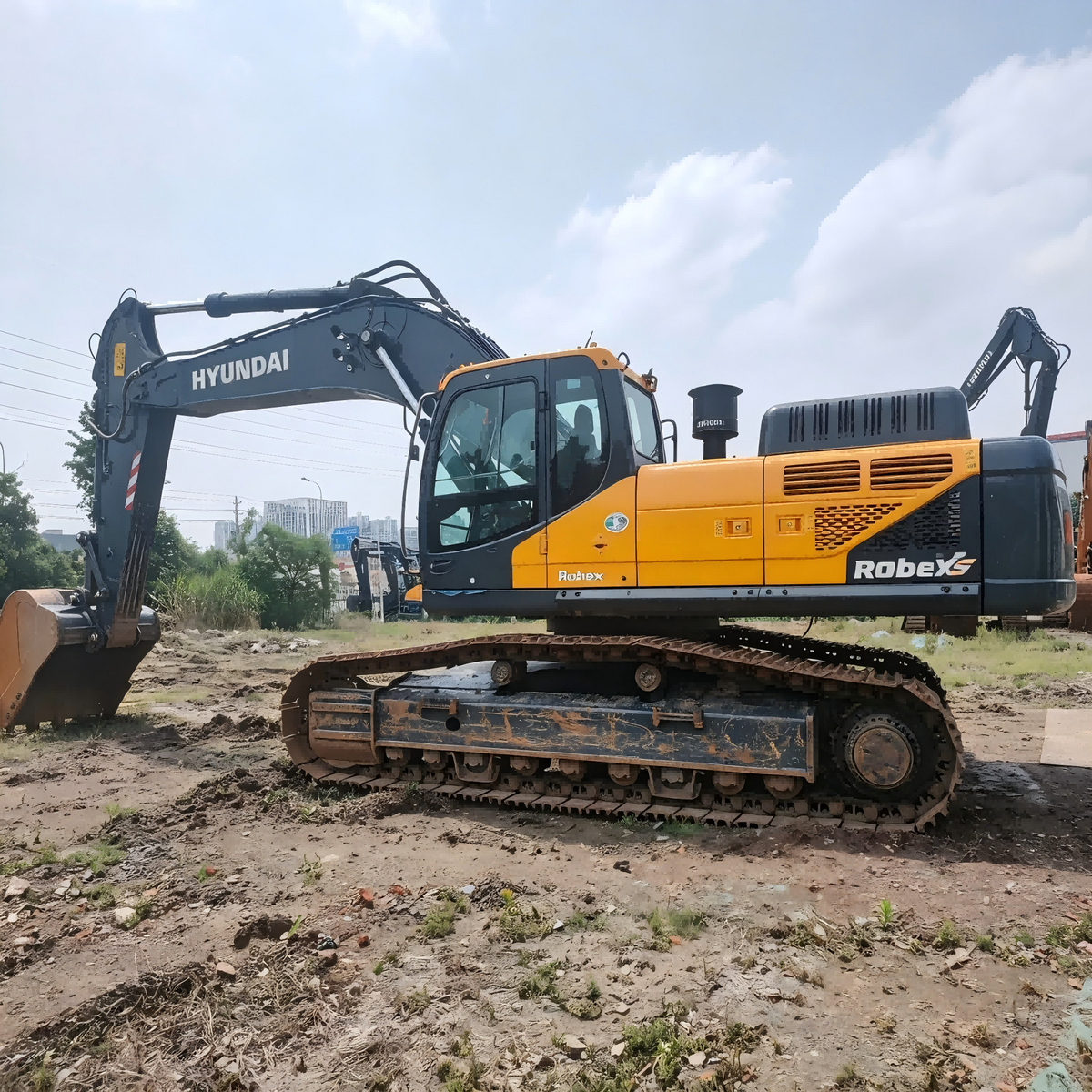

HYUNDAI ROBEX R375LVS (38t Crawler Excavator) |
| Operating Weight |
38,700 kg (85,320 lb) |
| Bucket Capacity (Std) |
1.90 m³ (2.49 yd³) |
| Engine Model |

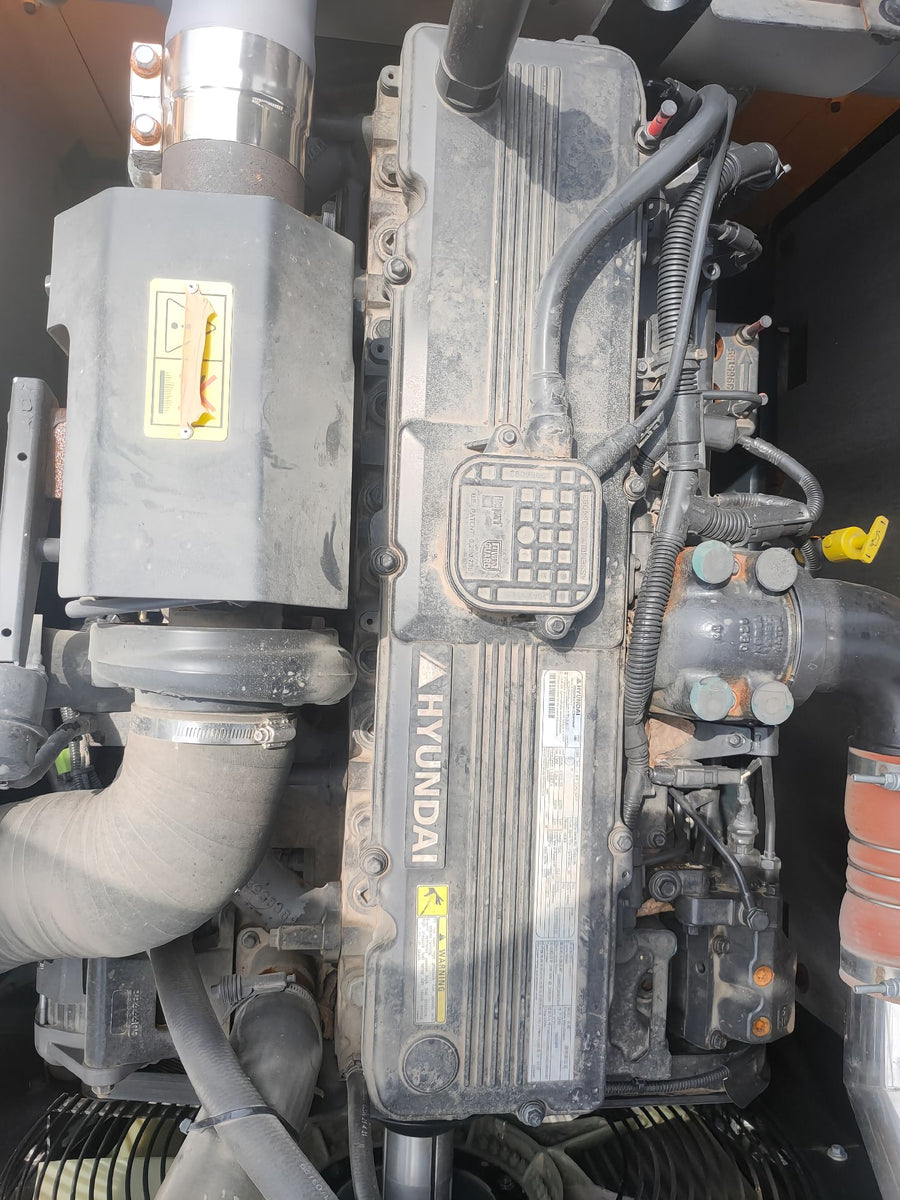

HYUNDAI HE8.9 / Cummins L9（6‑cyl turbo diesel） |
| Rated Power |
232 kW / 311 HP @ 1,700 rpm |
| Emission |
Euro 3 / Tier 3 / 国四 |
| Max Digging Depth |
6,590 mm (21.6 ft) |
| Max Reach (Ground) |
10,570 mm (34.7 ft) |
| Max Dump Height |
7,450 mm (24.4 ft) |
| Max Digging Height |
10,450 mm (34.3 ft) |
| Bucket Digging Force |
228 kN (23.2 tf) |
| Arm Digging Force |
182 kN (18.6 tf) |
| Travel Speed (High/Low) |
5.0 / 3.2 km/h (3.1 / 2.0 mph) |
| Swing Speed |
9.8 rpm |
| Gradeability |
35° (70%) |
| Ground Pressure |
68 kPa |
| Main Pump Flow |
2 × 315 L/min |
| Relief Pressure |
35 MPa (5,075 psi) |
| Fuel Tank |
610 L (161 gal) |
| Hydraulic Tank |
210 L (55 gal) |
| Dimensions (L×W×H) |
10,850 × 3,340 × 3,540 mm |
| Track Width |
600 mm |
| Key Features |
38t heavy mining, 311HP, 1.9m³ HD bucket, IPC+VPC, heavy‑duty undercarriage, quarry/rock/overburden |
