| Basic Information |
|
| Model |

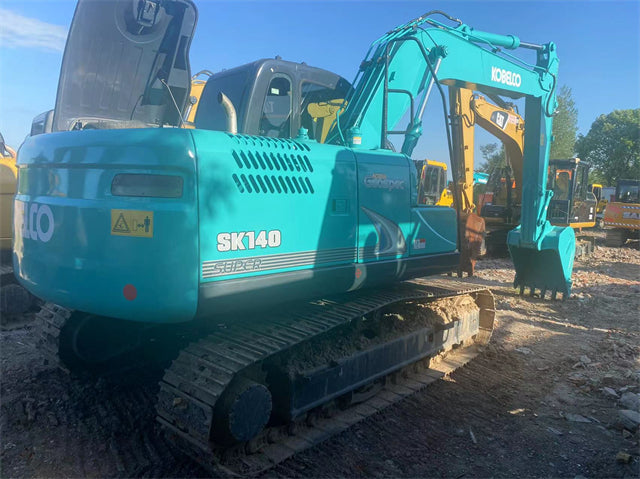

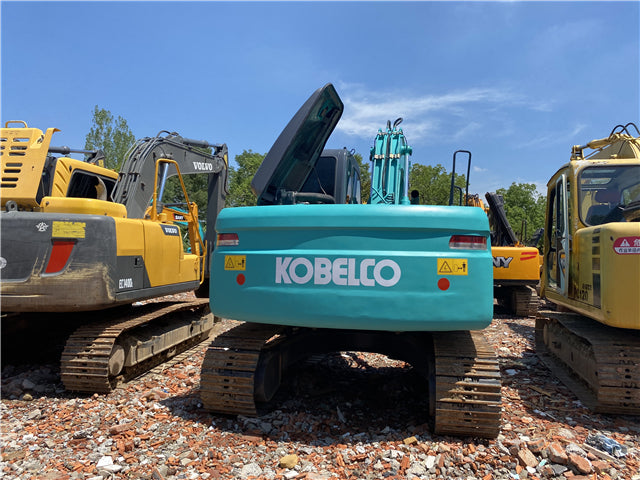

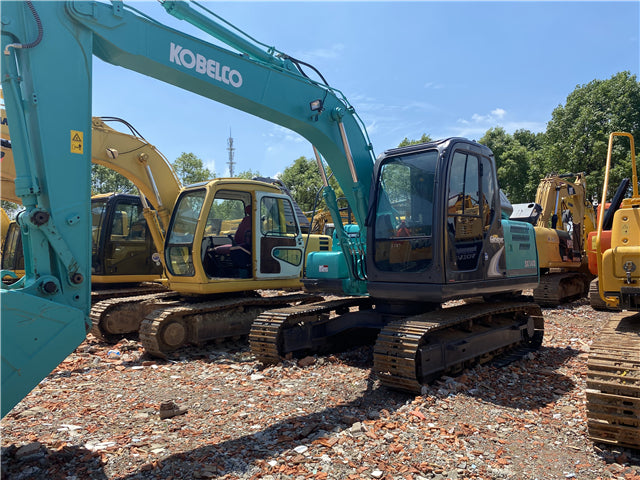

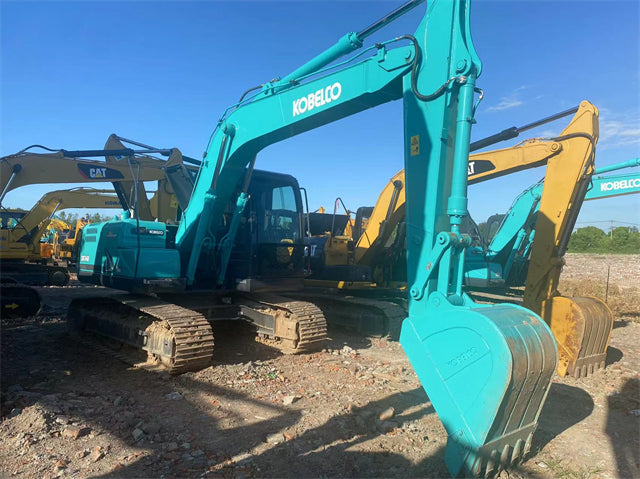

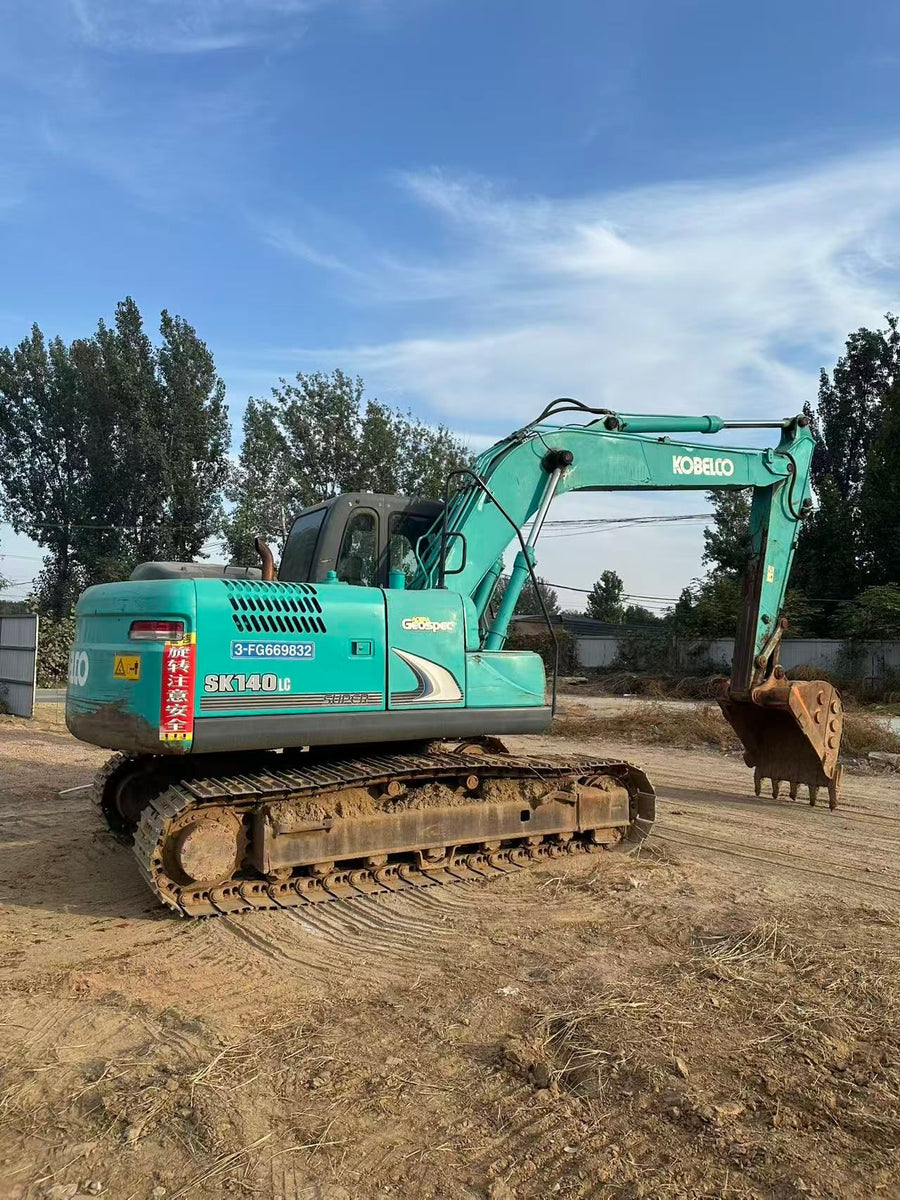

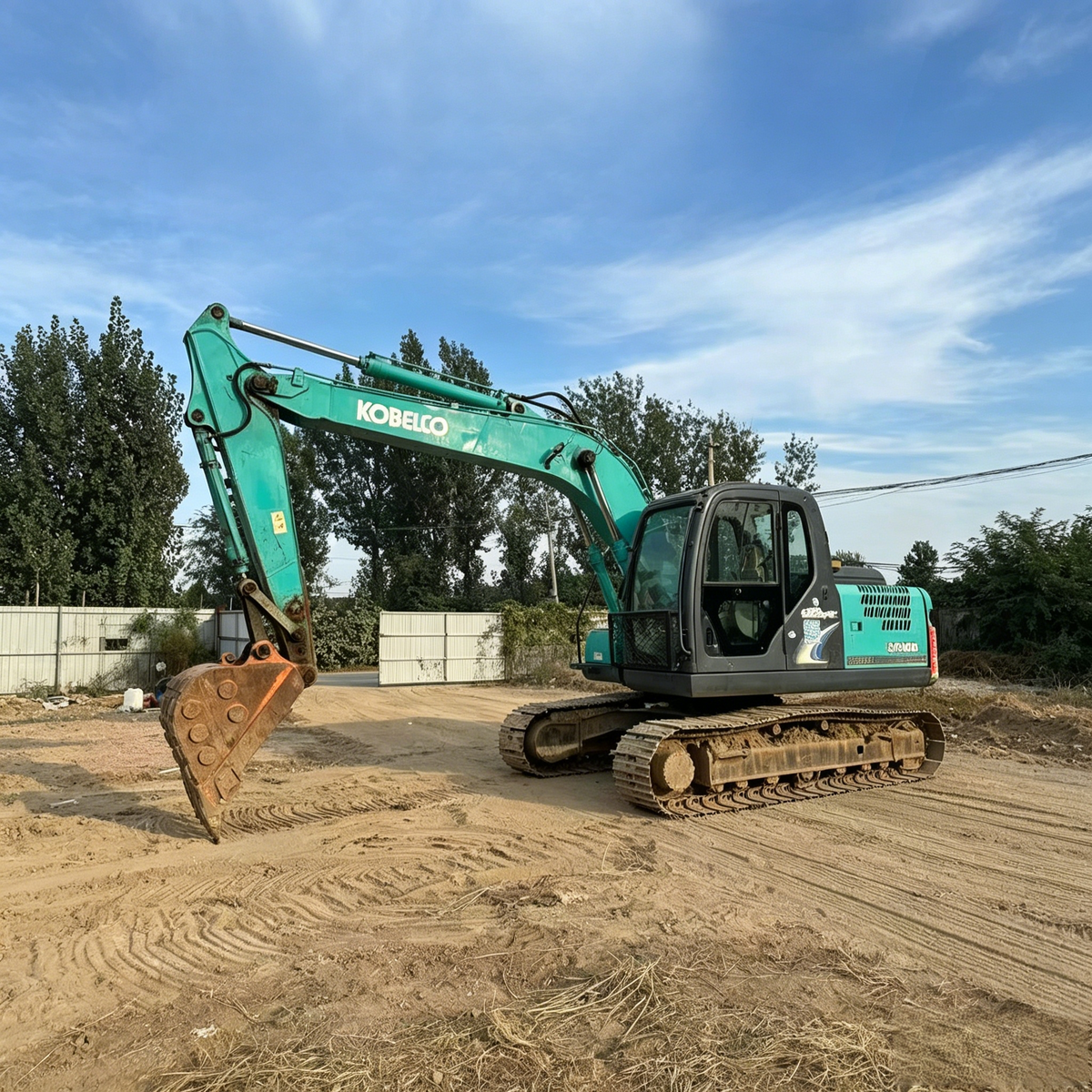

KOBELCO SK140 (SK140LC Standard Edition) |
| Engine Model |

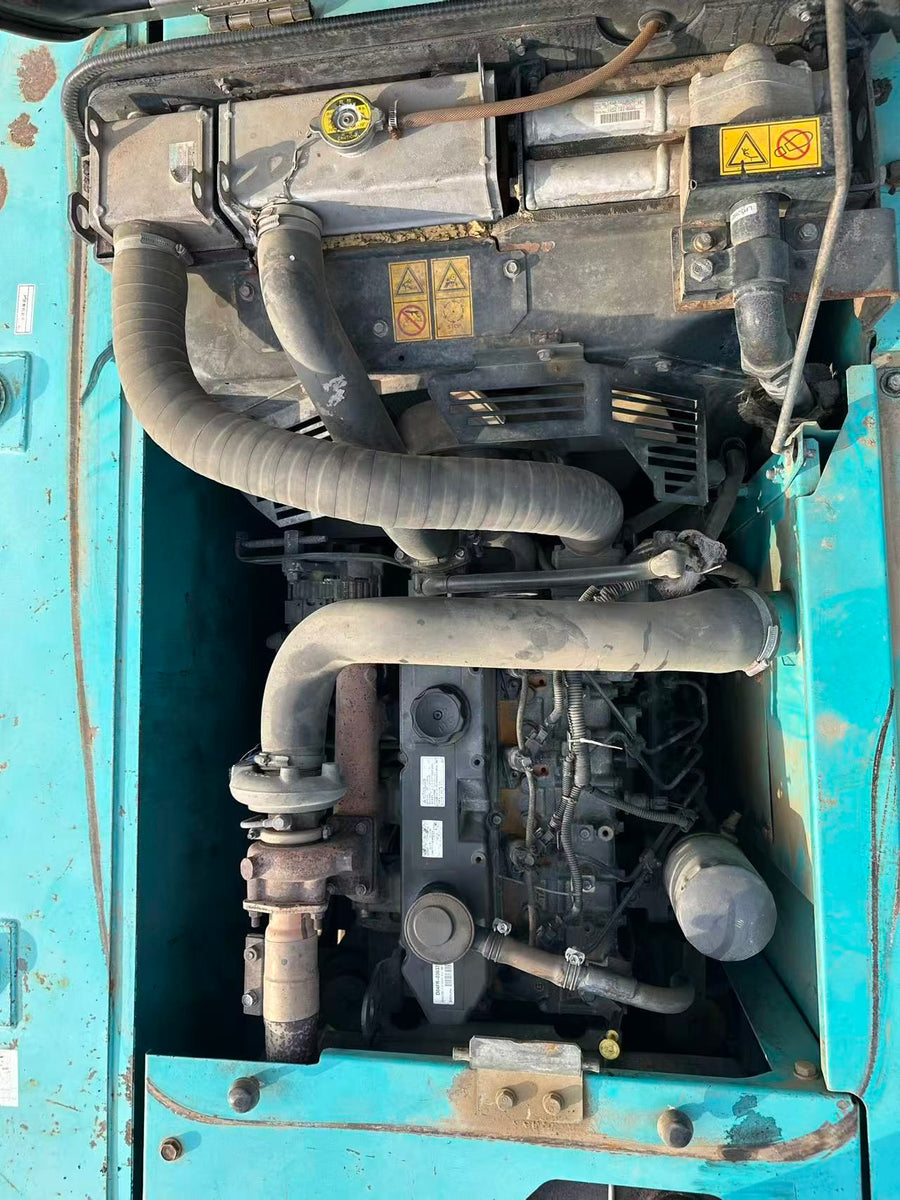

Mitsubishi D04FR-KDP2TAAC (4-cylinder, water-cooled, turbocharged with intercooler, direct-injection diesel) |
| Displacement |
4.249 L (259.3 cu in) |
| Net Power |
74 kW (100 HP) @ 2000 rpm (ISO 9249/SAE J1349) |
| Max Torque |
375 N·m (276.6 lb·ft) @ 1600 rpm |
| Operating Weight |
13,200 kg (29,101 lbs) (standard with dozer) |
| Standard Bucket Capacity |
0.57 m³ (0.746 cu yd, heaped); 0.45 m³ (0.589 cu yd, struck) |
| Performance |
|
| Max Travel Speed |
5.6 km/h (3.5 mph) (high); 3.4 km/h (2.1 mph) (low) |
| Max Digging Depth |
5,520 mm (18.11 ft) |
| Max Digging Height |
8,500 mm (27.89 ft) |
| Max Dumping Height |
6,090 mm (19.98 ft) |
| Max Digging Reach |
8,370 mm (27.46 ft) |
| Swing Speed |
11 rpm |
| Bucket Digging Force |
90.1 kN (9,190 kgf) |
| Arm Crowding Force |
64.4 kN (6,570 kgf) |
| Climbing Ability |
35° (70%) |
| Drawbar Pull |
139 kN (14,177 kgf) (SAE) |
| Dimensions |
|
| Track Width |
600 mm (23.62 in) (standard); optional 500 mm (19.69 in) |
| Track Gauge |
2,200 mm (7.22 ft) |
| Overall Length (with bucket on ground) |
7,980 mm (26.18 ft) |
| Overall Width |
2,590 mm (8.50 ft) |
| Overall Height (top of cab) |
2,810 mm (9.22 ft) |
| Min Ground Clearance |
450 mm (17.72 in) |
| Rear Swing Radius |
1,800 mm (5.91 ft) |
| Capacities |
|
| Fuel Tank |
275 L (72.6 US gal) |
| Hydraulic System Fluid Capacity |
Approx. 176 L (46.5 US gal) |
| Hydraulic Tank Capacity |
Approx. 90 L (23.8 US gal) |
| Hydraulic System |
|
| Main Relief Pressure |
34.3 MPa (4,264 psi) (boom, arm, bucket, travel); 29.4 MPa (3,553 psi) (swing circuit) |
| Main Pump Flow |
2 × 142 L/min (2 × 37.51 gpm); pilot pump: 17 L/min (4.49 gpm) |
