Komatsu

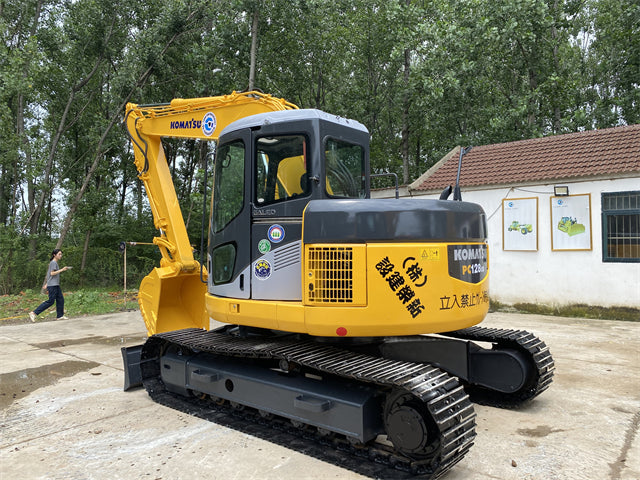

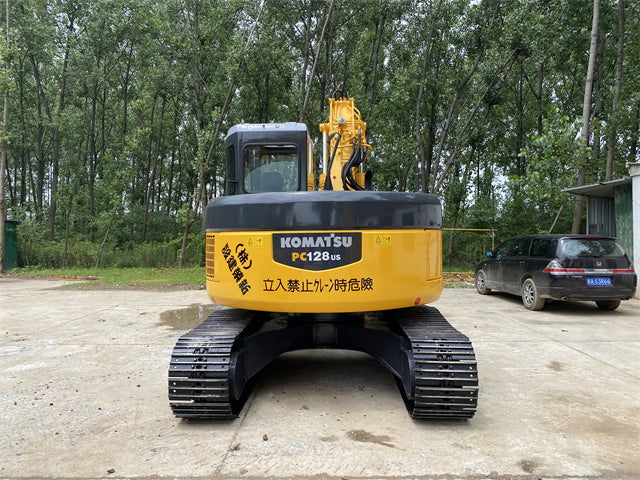

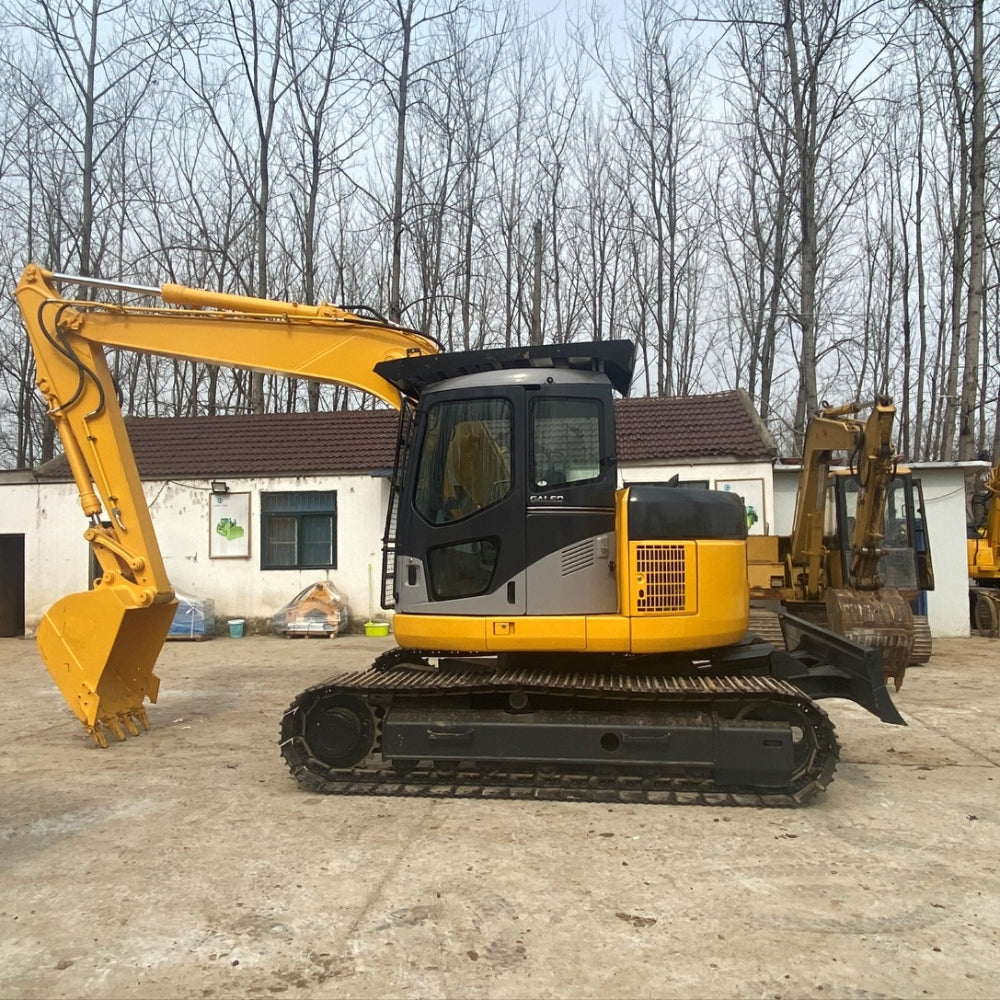

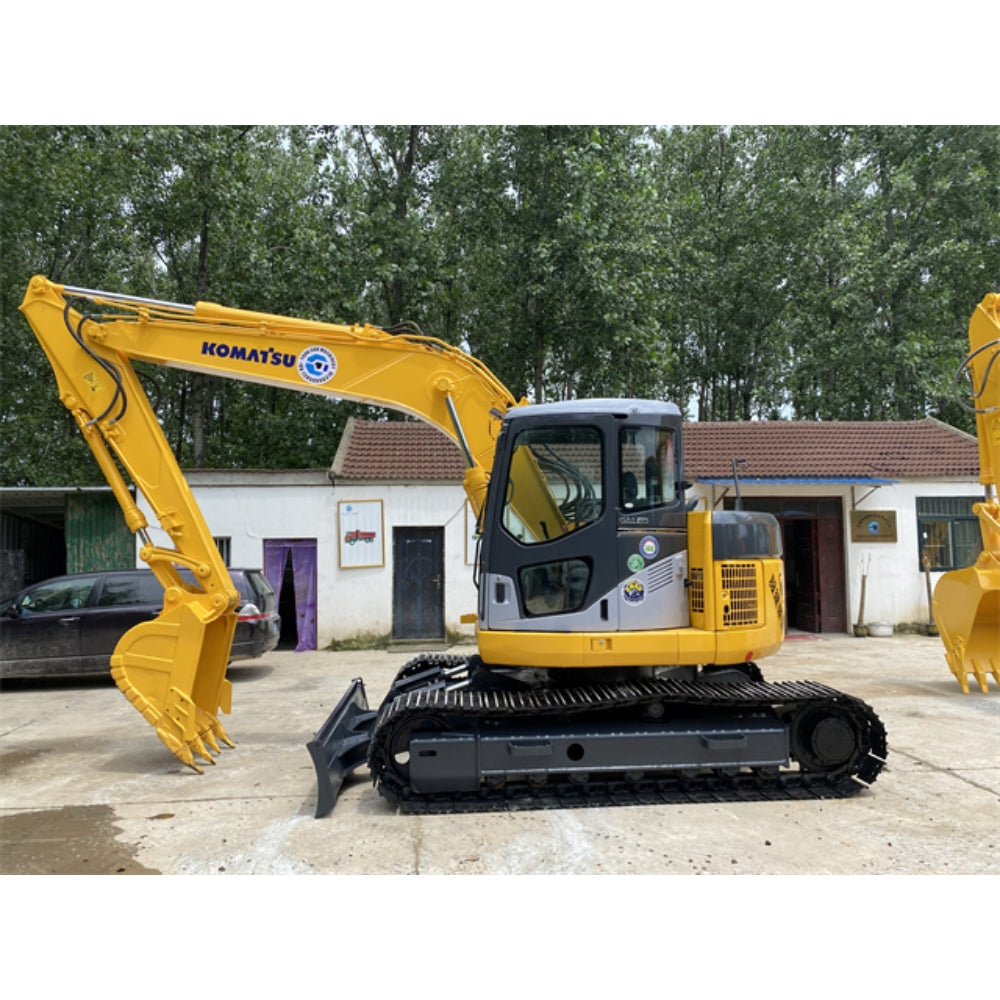

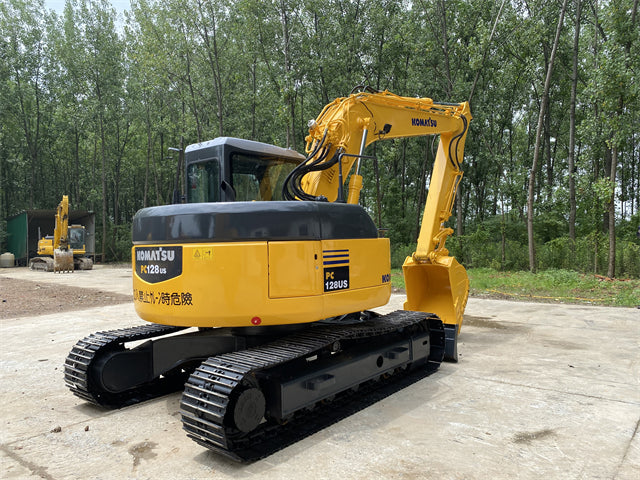

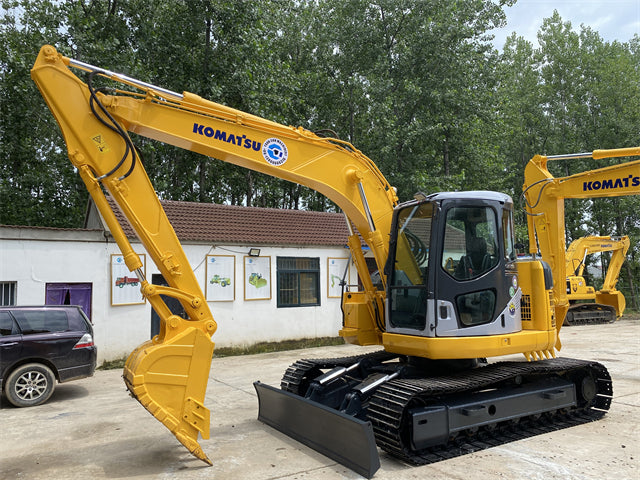

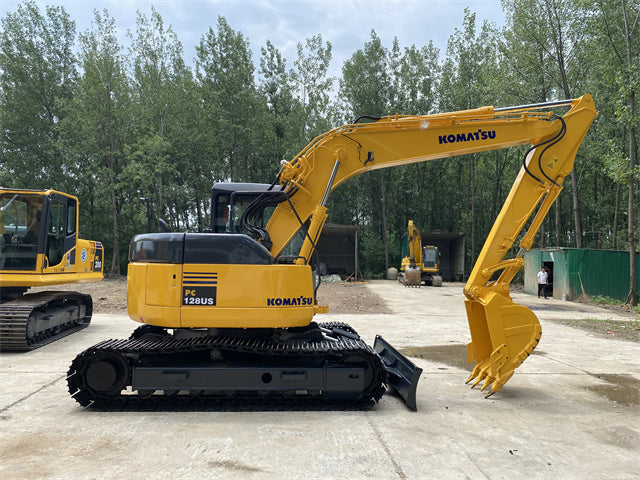

USED KOMATSU PC128US-2e1

$16,000.00 USD

Sale Sold out

Category	Specifications
Basic Information
Model	Komatsu PC128US-2E1
Engine Model	Komatsu S4D102E (4-cylinder, turbocharged, water-cooled diesel, low-emission “E1” variant)
Displacement	3.92 L (239.3 cu in)
Net Power	64 kW (86 HP) @ 2200 rpm (ISO 9249/SAE J1349)
Operating Weight	12,950 kg (28,550 lbs)
Standard Bucket Capacity	0.45 m³ (0.40-0.90 m³ optional)
Performance
Max Travel Speed	5.1 km/h (high); 3.2 km/h (low)
Max Bucket Digging Force (ISO)	90.0 kN (9,180 kgf)
Max Arm Digging Force (ISO)	65.0 kN (6,630 kgf)
Swing Speed	11 rpm
Ground Pressure	41.2 kPa (5.97 psi)
Tail Swing Radius	1,465 mm (short tail swing design)
Dimensions
Transport Length	7,835 mm
Transport Width	2,460 mm
Transport Height	2,775 mm
Max Digging Depth	5,445 mm
Max Dumping Height	6,980 mm
Max Digging Radius	8,085 mm
Capacities
Fuel Tank	200 L (52.8 gal)
Hydraulic System Fluid Capacity	69 L (18.2 gal)
Engine Oil Capacity	17 L (4.5 gal)
Coolant Capacity	18.2 L (4.8 gal)
Hydraulic System
Main Relief Pressure	34.8 MPa (5050 psi)
Main Pump Flow	226 L/min (59.7 gpm)
