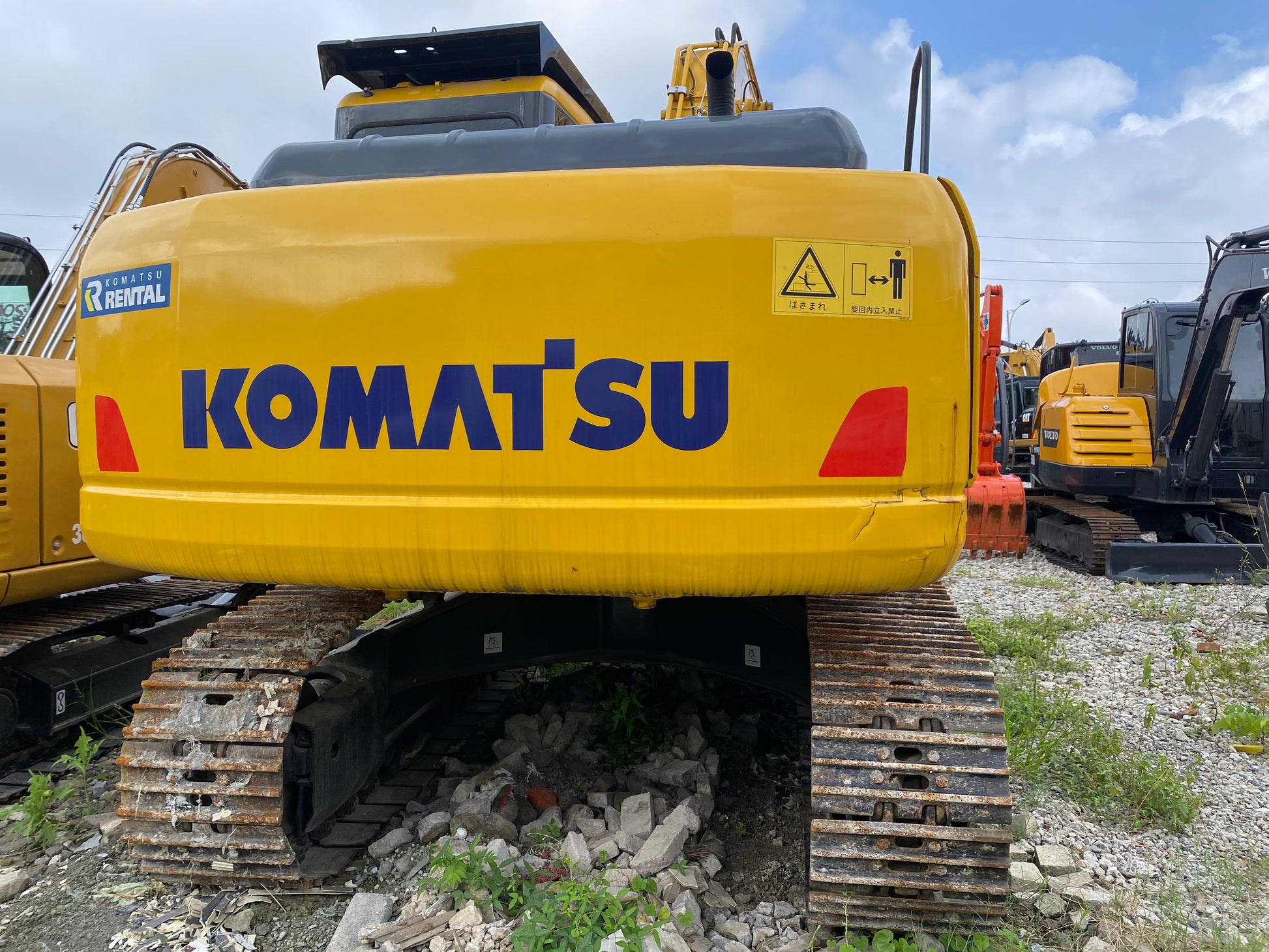

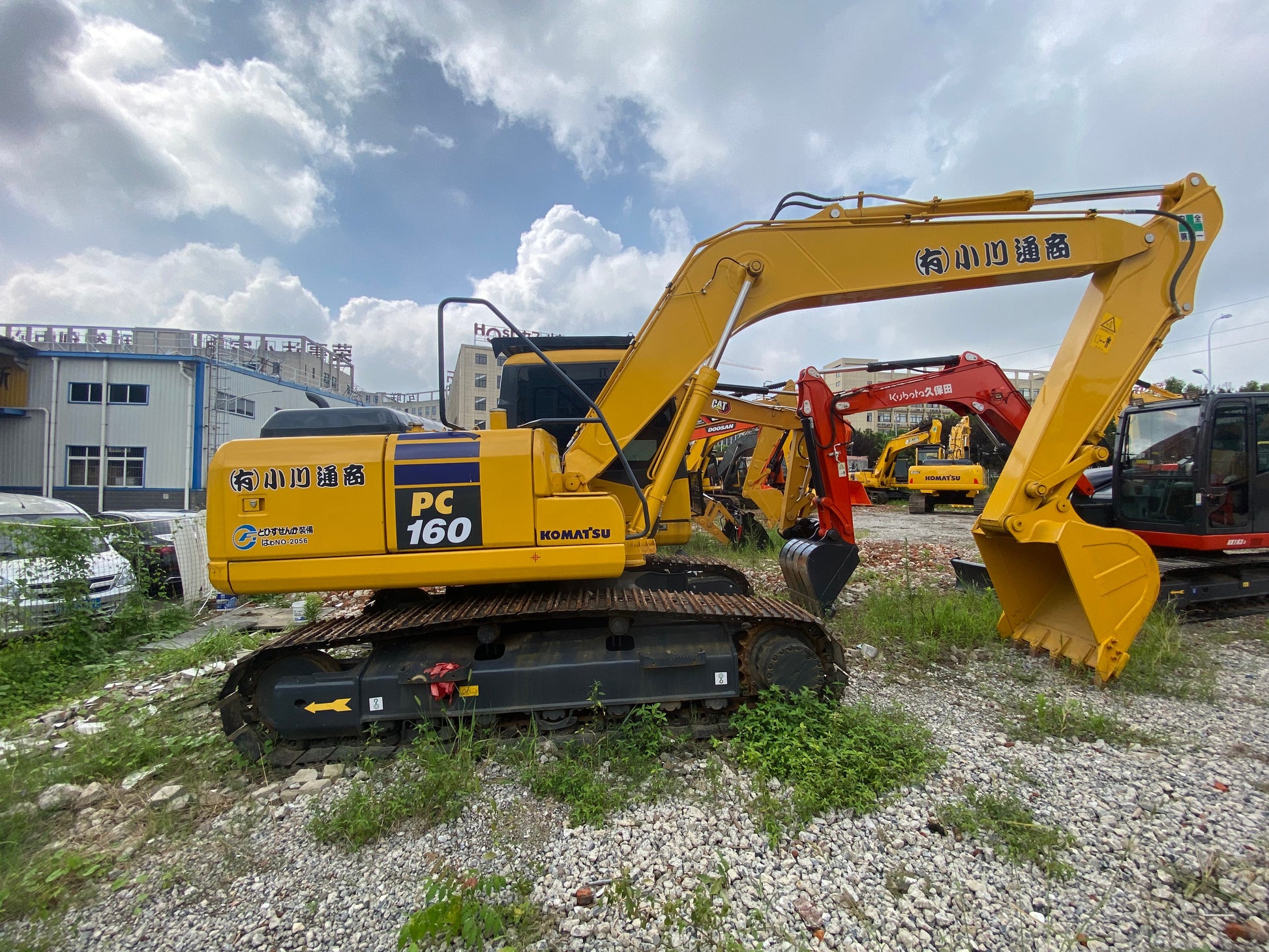

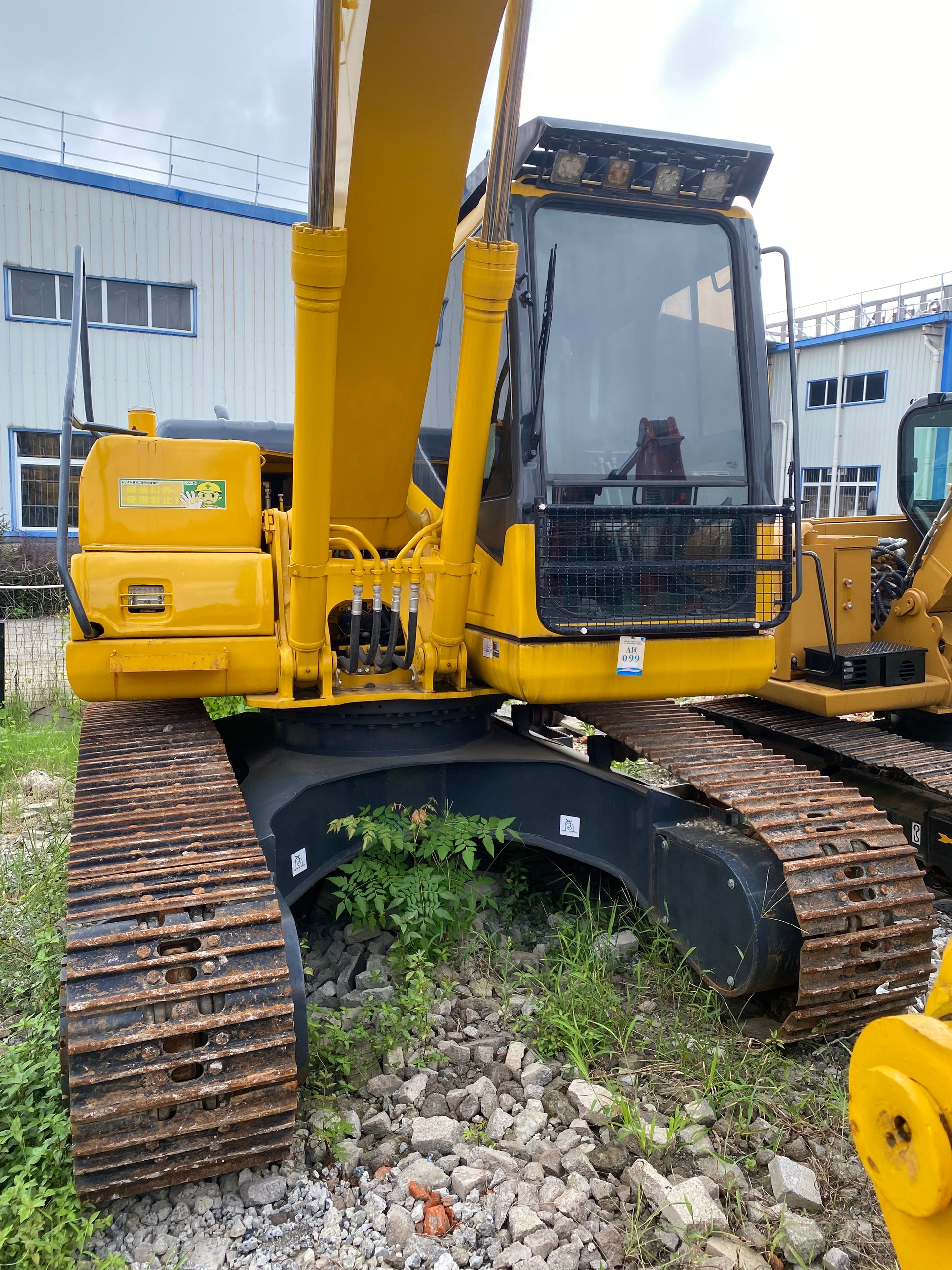

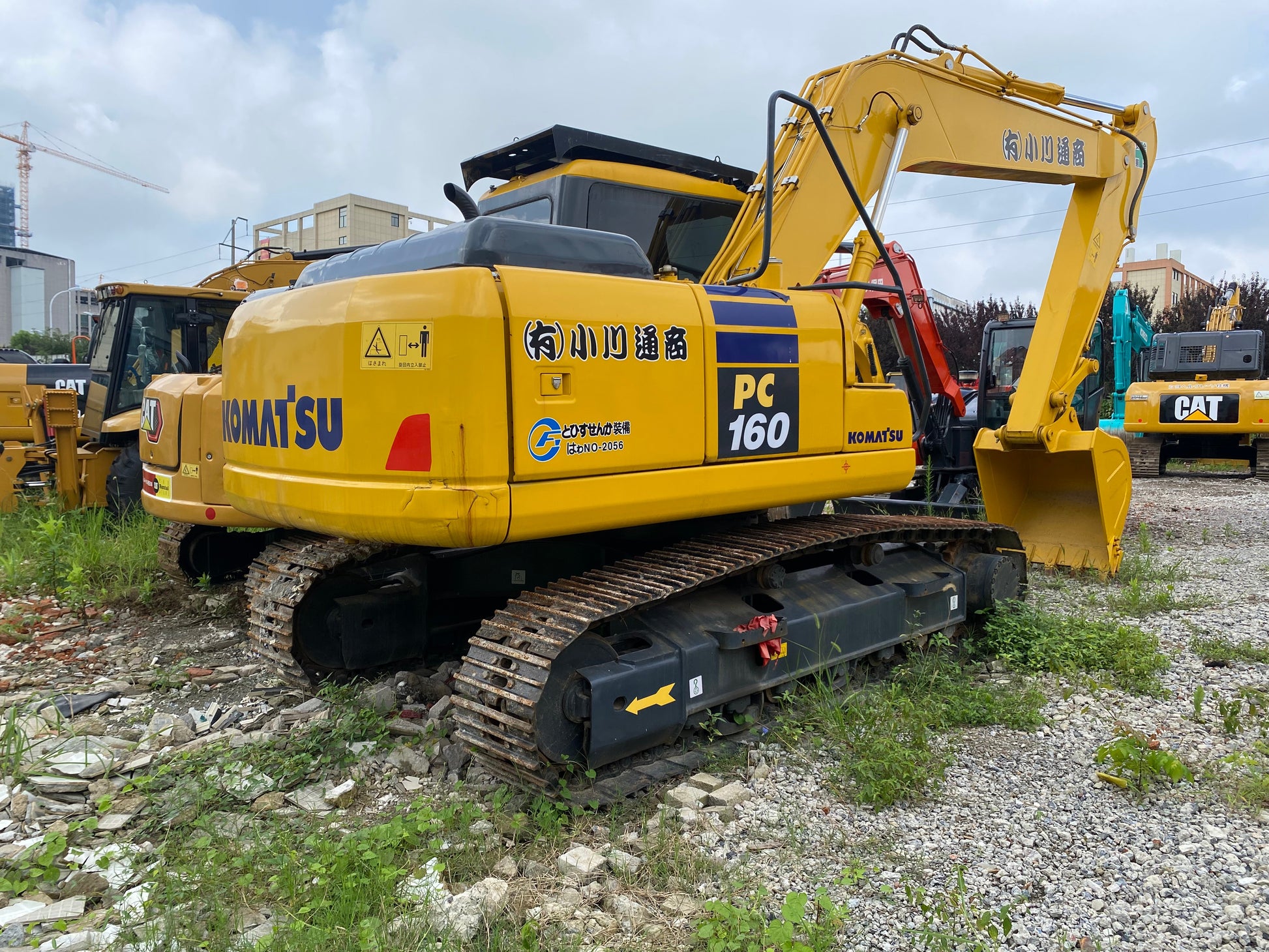

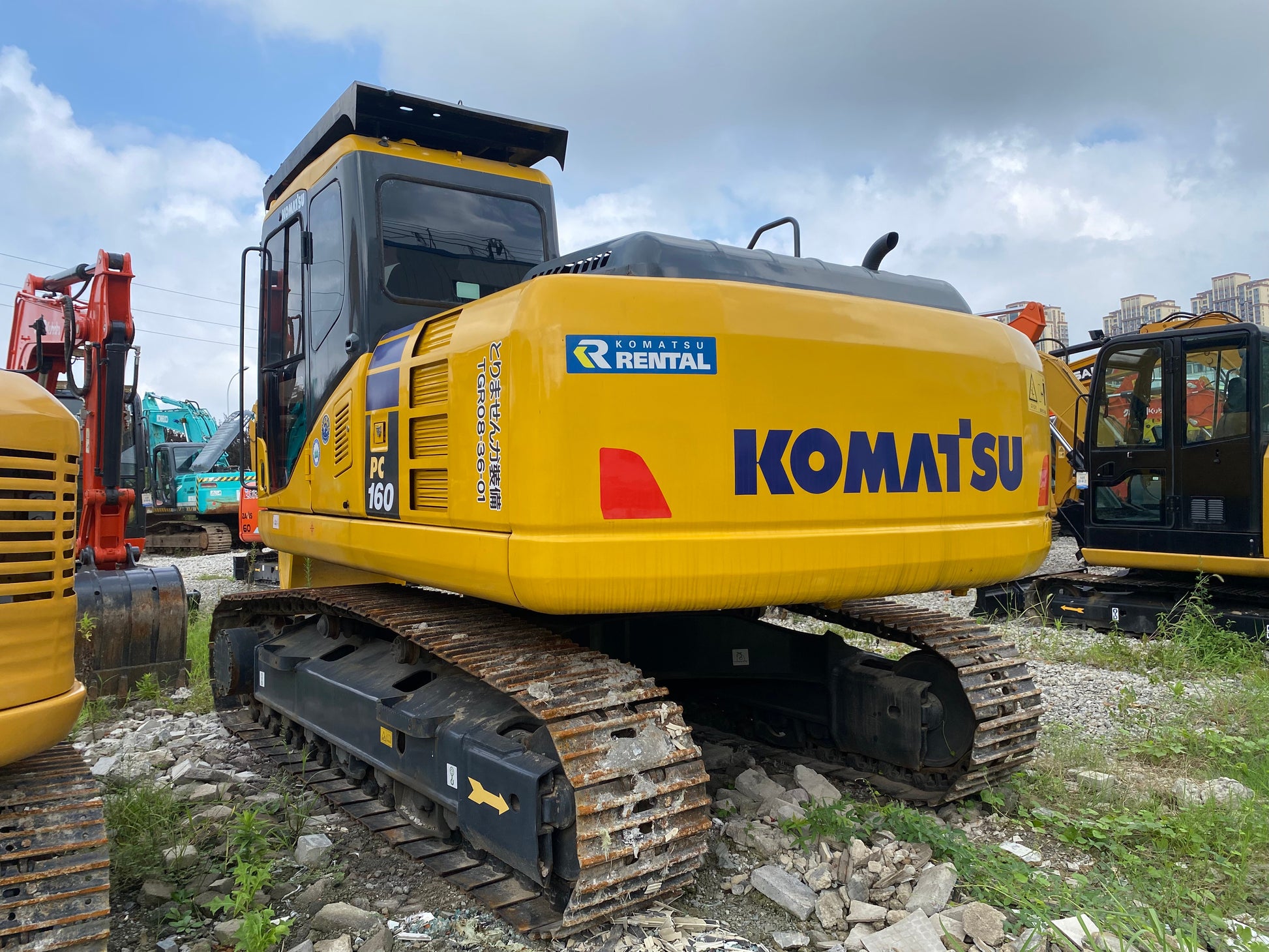

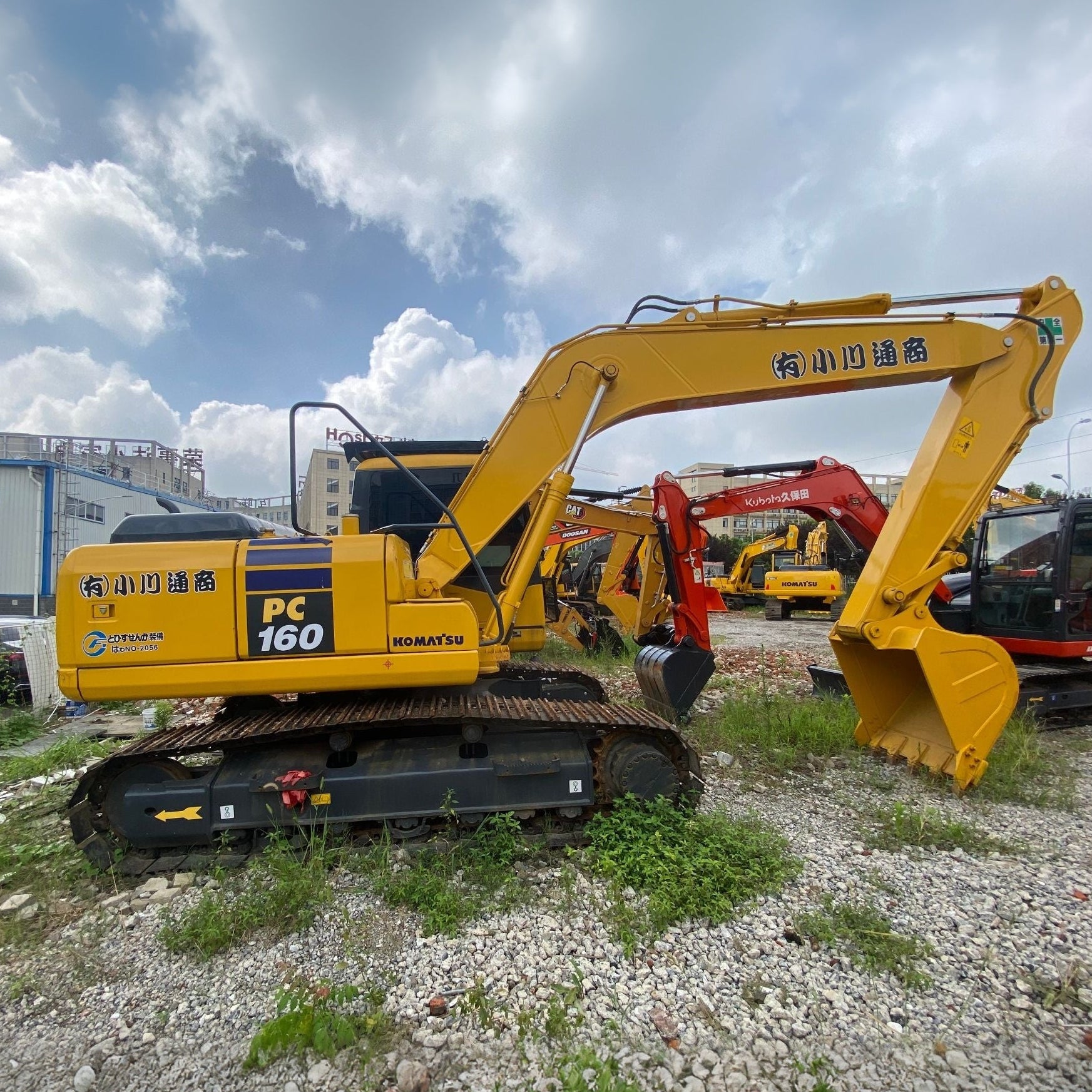

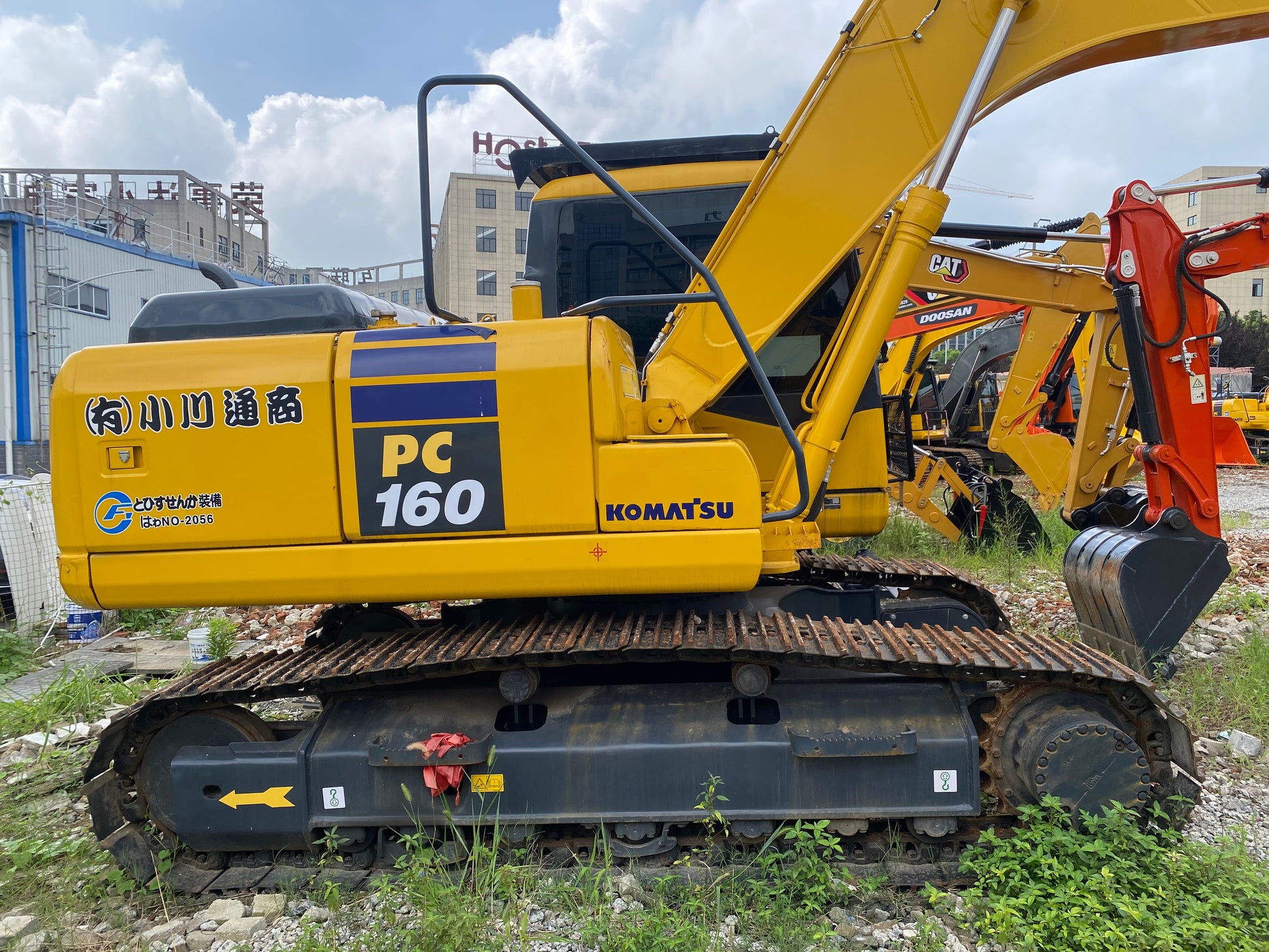

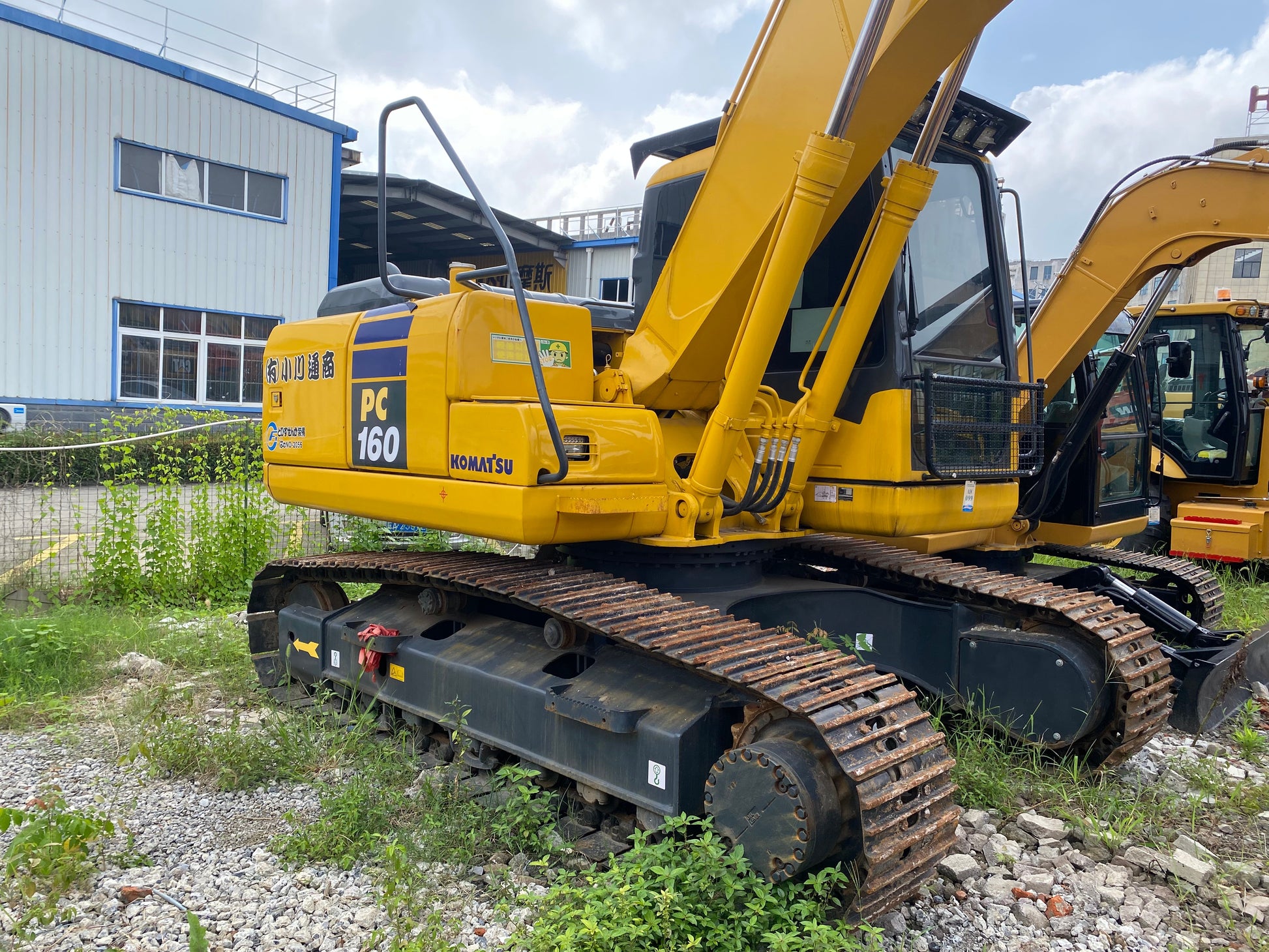

Used Komatsu PC160
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: KMTPC160SPR558037
MACHINE REFERENCE PRICE
USD 18,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2023
- Meter hours
- 1020 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
KOMATSU Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Komatsu PC160 crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: projects that require stable crawler undercarriage performance; earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
CONFIGURATION
Komatsu PC160 specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
KMTPC160SPR558037
- Listed Price
- USD $18,000
- Engine Model
- Komatsu SAA4D107E‑1, 4‑cylinder turbocharged & aftercooled
- Net Power
- 86 kW (115 HP) @ 2200 rpm
- Displacement
- 4.46 L
Full listing reference specifications
- Emission Standard
- EPA Tier3 / EU Stage 3A
- Operating Weight
- 16680‑17120 kg (36770‑37740 lb)
- Standard Bucket Capacity
- 0.65 m³ (0.85 yd³)；Range:0.37‑0.95 m³
- Boom / Stick Length
- 5150 mm / 2610 mm
- Bucket Digging Force
- 123 kN
- Stick Digging Force
- 86.3 kN
- Max Digging Depth
- 5960 mm
- Max Digging Reach
- 8960 mm
- Max Digging Height
- 8980 mm
- Max Dumping Height
- 6370 mm
- Max Vertical Wall Digging Depth
- 5040 mm
- System Type
- HydrauMind closed‑center load‑sensing system
- Main Pump Flow
- 312 L/min
- Working Pressure
- 37.3 MPa
- Swing Speed
- 12 rpm
- Travel Speed (Low/High)
- 3.4 km/h / 5.5 km/h
- Gradeability
- 70 % (35°)
- Drawbar Pull
- 151 kN
- Track Shoe Width
- 600 mm triple grouser
- Track Gauge
- 1990 mm
- Ground Pressure
- 40.3 kPa (600 mm shoe)
- Overall Length
- 8565 mm
- Overall Width
- 2490 mm
- Overall Height (Cab Top)
- 3015 mm
- Tail Swing Radius
- 2390 mm
- Ground Clearance
- 440 mm
- Fuel Tank
- 280 L
- Hydraulic Tank
- 121 L
- Engine Oil
- 14 L
- Coolant
- 17.3 L
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui, China?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this Komatsu PC160
Destination port · Application · Preferred condition
