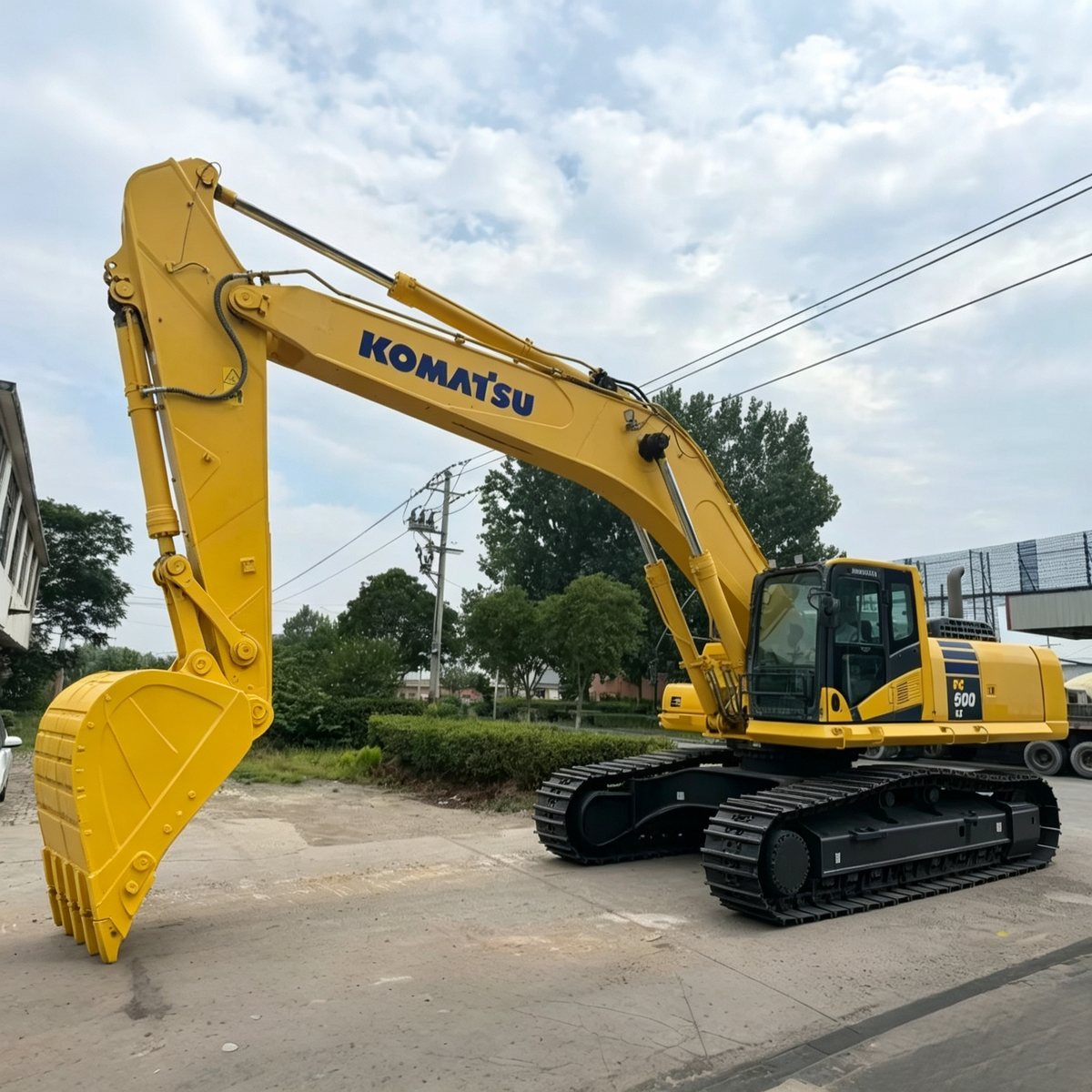

Used Komatsu PC500LC-10M0
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: KMTPC500TP6173891
MACHINE REFERENCE PRICE
USD 48,000.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2023
- Meter hours
- 1985 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
KOMATSU Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Komatsu PC500LC-10M0 crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: earthmoving, trenching, and foundation excavation; road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work; projects that require stable crawler undercarriage performance. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- engine start, idle sound, smoke condition, and dashboard display
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
CONFIGURATION
Komatsu PC500LC-10M0 specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
KMTPC500TP6173891
- Listed Price
- USD $48,000
- Full Model Name
- KOMATSU PC500LC-10M0 Large Heavy-Duty Mining Crawler Excavator
- Operating Weight (Standard Cab + 600mm Steel Track)
- 49400 kg
- Standard Heaped Bucket Capacity (ISO)
- 3.2 m³ (Optional:2.5–4.0 m³)
Full listing reference specifications
- Overall Transport Length
- 11855 mm
- Overall Transport Width
- 3580 mm
- Overall Transport Height (Cab Top)
- 3360 mm
- Standard Track Shoe Width
- 600 mm
- Track Gauge
- 2740 mm
- Track Length on Ground
- 4350 mm
- Minimum Ground Clearance
- 570 mm
- Rear Swing Radius
- 3765 mm
- Engine Model
- KOMATSU SAA6D125E-5 6-Cylinder Turbocharged Aftercooled Diesel Engine
- Engine Type
- Water-cooled, 4-stroke, in-line, turbocharged & aftercooled direct injection diesel
- Rated Net Power
- 269 kW @1900 rpm (ISO 9249)
- Engine Displacement
- 11.04 L
- Fuel Tank Capacity
- 640 L
- Hydraulic Tank / Full System Volume
- 279 L / 485 L
- Main Hydraulic Relief Pressure
- 37.3 MPa
- Total Main Pump Flow
- 2×310 L/min
- Max Digging Reach (Ground Level)
- 11135 mm
- Max Total Digging Reach
- 11350 mm
- Max Digging Depth
- 7150 mm
- Max Vertical Wall Digging Depth
- 6280 mm
- Max Digging Height
- 10225 mm
- Max Dumping Height
- 6750 mm
- Bucket Digging Force (ISO Standard)
- 303 kN
- Arm Digging Force (ISO Standard)
- 235 kN
- Max Drawbar Pull Force
- 329 kN
- Swing Rotation Speed
- 8.8 rpm
- Travel Speed (Low/Mid/High Gear)
- 3.0 km/h / 4.2 km/h / 5.5 km/h
- Gradeability
- 35° (70%)
- Ground Contact Pressure
- 82.0 kPa
- Standard Boom Length
- 6670 mm
- Standard Stick Length
- 3400 mm
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui?
Yes. We can coordinate an in-person inspection, video call, or extra photos before purchase.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
