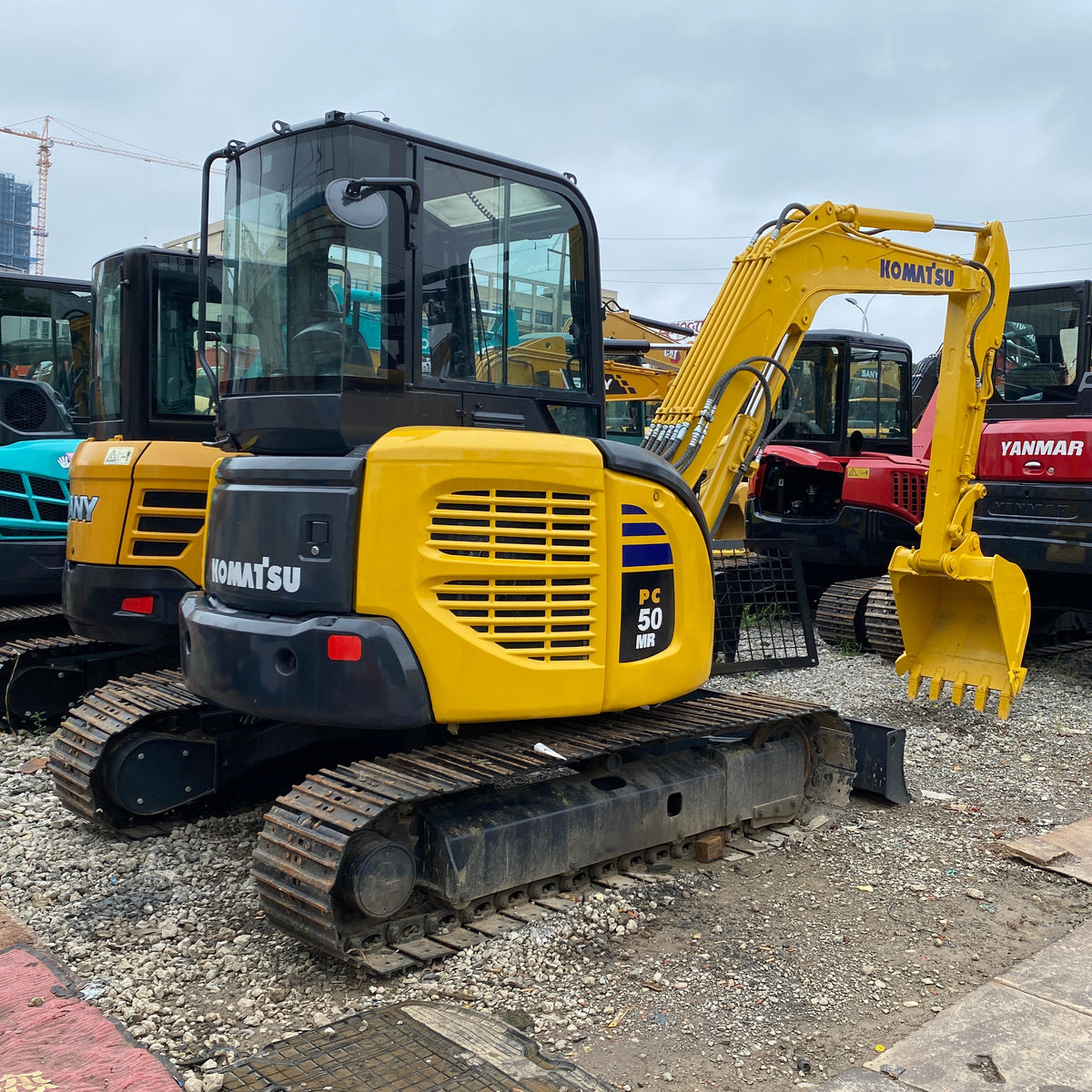

Used Komatsu PC50MR
Crawler Excavator for Sale
Product photos · Inspection before purchase · Export support
Confirm current photos for the selected unit. Listed serial: KMTPC50MBNJ247693
MACHINE REFERENCE PRICE
USD 8,500.00 / set
Not a confirmed FOB or CIF total. Exact unit, preparation and export terms are confirmed in writing.
- Listed year
- 2022
- Meter hours
- 2141 h
- Condition
- Used
- Machine type
- Used Crawler Excavator
- Inspection
- On request
- Stock yard
- Hefei, China
Confirm the year, meter reading, serial and fitted configuration for the selected machine. Other units of this model are quoted separately. Meter hours do not independently establish total lifetime use.
KOMATSU Excavator Technical Resources
Browse the catalogue and previews. Ask YUANJIAN for full documents matched to your machine's model, serial number and configuration.
BEFORE YOU BUY
Check the machine, not just the paint
YUANJIAN MACHINERY INTERNATIONAL TRADING LIMITED is a used excavator and construction machinery supplier in China. Discuss the actual condition of this used Komatsu PC50MR crawler excavator, your application and the agreed preparation scope before payment. These are requests for evidence, not completed inspection results.
Engine & working systems
Request cold start, smoke and dashboard footage, followed by hot hydraulic operation: boom, arm, bucket, travel and swing.
Fuel use & working test →Undercarriage & structure
Review the fitted travel system, pins, welds and hydraulic leakage. For tracked machines, check track shoes, rollers, sprockets and chain wear.
Swing-bearing checks →Original paint or refurbishment
Confirm the offered condition and any cosmetic or mechanical work. New paint alone does not prove a rebuild or accident-free history.
Compare purchase options →Typical work: road construction, drainage, and site preparation; truck loading, quarry support, and contractor fleet work; projects that require stable crawler undercarriage performance; earthmoving, trenching, and foundation excavation. Match the fitted configuration and actual condition to your job.
Model-specific inspection points
- hydraulic pump response and boom, arm, bucket, and swing movement
- track shoes, rollers, sprocket, idler, chain, and undercarriage wear
- bucket, pins, hoses, cylinders, visible leakage points, and cab condition
- engine start, idle sound, smoke condition, and dashboard display
CONFIGURATION
Komatsu PC50MR specifications
Listing reference values are not measurements of this used unit. Confirm model, engine plate, fitted equipment and configuration against the serial number.
Listed serial
KMTPC50MBNJ247693
- Working Hours
- 2141
- Listed Price
- USD $8,500
- Engine Model
- Komatsu 4D88E-7, water-cooled, 4-cycle direct injection
- Net power (ISO 14396)
- 29.1 kW / 39.0 HP @ 2400 rpm
Full listing reference specifications
- Net power (ISO 9249)
- 28.3 kW / 38.0 HP
- Displacement
- 2189 cm³ (Bore × stroke: 88 × 90 mm, 4 cyl.)
- Max. torque
- 139 Nm @ 1440 rpm
- Emissions
- EU Stage V compliant (DPF, HPCR)
- Rubber shoes
- 5,020 kg
- Steel shoes
- 5,100 kg
- Roadliner shoes
- 5,150 kg
- Bucket Capacity Range
- 0.055 – 0.16 m³
- Hydraulic System Type
- Komatsu CLSS (closed-centre load sensing)
- Main pump
- 2 × variable displacement, max. flow 53.5×2 + 33.8 + 12 L/min
- Max. operating pressure
- 26.5 MPa (265 bar)
- Bucket digging force
- 3,390 daN (3,460 kg)
- Arm crowd force (1375 mm arm)
- 2,160 daN (2,220 kg)
- Max. travel speeds
- Lo / Hi: 2.6 / 4.6 km/h
- Max. drawbar pull
- 4,200 daN (4,280 kgf)
- Ground pressure
- 0.30 kg/cm²
- Swing speed
- 9.0 rpm
- Tail swing radius
- 1,040 mm
- Max. digging depth (1770 mm arm)
- 3,705 mm
- Max. digging reach
- 6,130 mm
- Max. dumping height
- 4,060 mm
- Max. digging height
- 5,780 mm
- Overall length
- 5,300 mm
- Overall height
- 2,610 mm
- Overall width
- 1,960 mm
- Track length on ground
- 2,000 mm
- Track gauge
- 1,560 mm
- Shoe width
- 400 mm
- Width × height
- 1,960 × 355 mm
- Max. lifting height / digging depth
- 430 / 330 mm
- Fuel tank
- 65 L
- Hydraulic system
- 55 L
- Engine oil (refill)
- 7.5 L
- Radiator
- 8.8 L
- External (LwA)
- 96 dB(A)
- Operator ear (LpA)
- 77 dB(A)
- Hand/arm / body vibration
- ≤ 2.5 / ≤ 0.5 m/s²
Operating weight is not a verified packed shipping weight. Obtain actual transport dimensions and weight before booking.
SUPPLIER EVIDENCE
Workshop records & documented exports
COMPANY RECORD
LiuGong 856 shipped to Kenya
A company record from a separate machine or customer order. It is not an inspection result or delivery proof for this inventory unit.
View the record →EXPORT QUOTATION
From machine selection to shipment
Send your destination port, job and preferred condition. Confirm availability for the selected unit, inspection and preparation, then agree an itemized quotation.
Transport method, packed dimensions, freight, insurance, destination charges and import responsibilities are confirmed for each order. No fixed arrival date is promised on this page.
FOB quotation & shipping checklist →Can I inspect this machine in Hefei, Anhui, China?
Yes. We can coordinate an in-person inspection, video call, or extra photos of the listed unit.
Can you provide a working video before payment?
Yes. We can provide a walk-around video, operating video, and photos of key condition points.
Can you help with export and shipping?
Yes. We support loading, export documents, and freight quotation to your destination.
Is this an original-paint or refurbished machine?
Confirm the final condition and preparation scope for the selected unit. Ask what cosmetic and mechanical work was performed, what evidence is available and what remains outside the agreed scope.
Ask about this Komatsu PC50MR
Destination port · Application · Preferred condition
