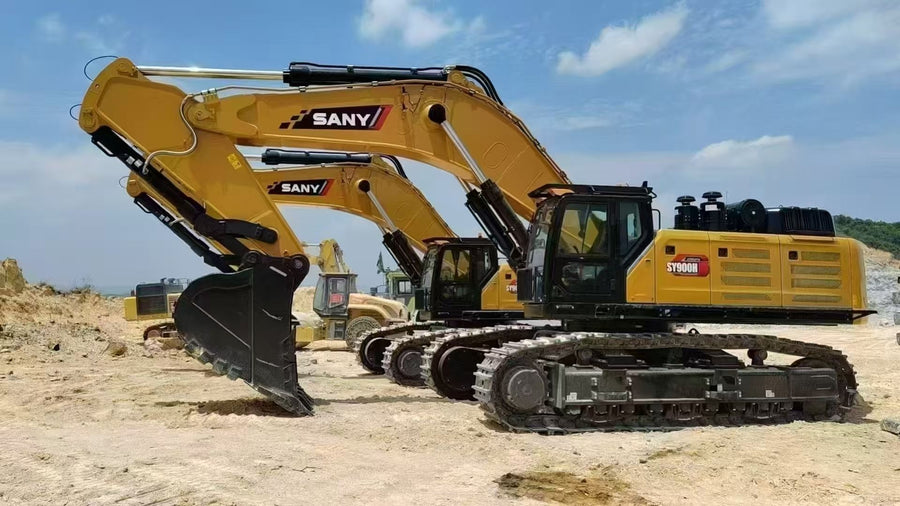

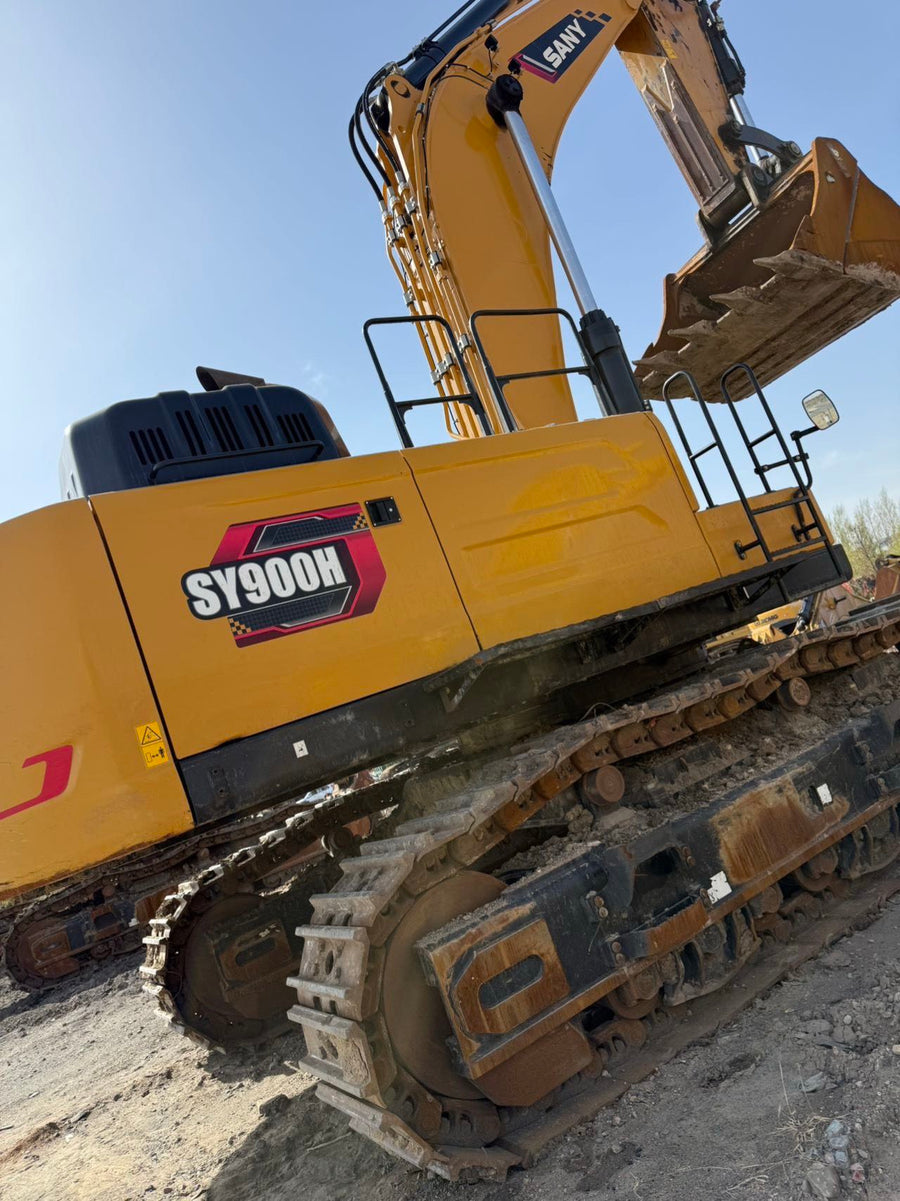

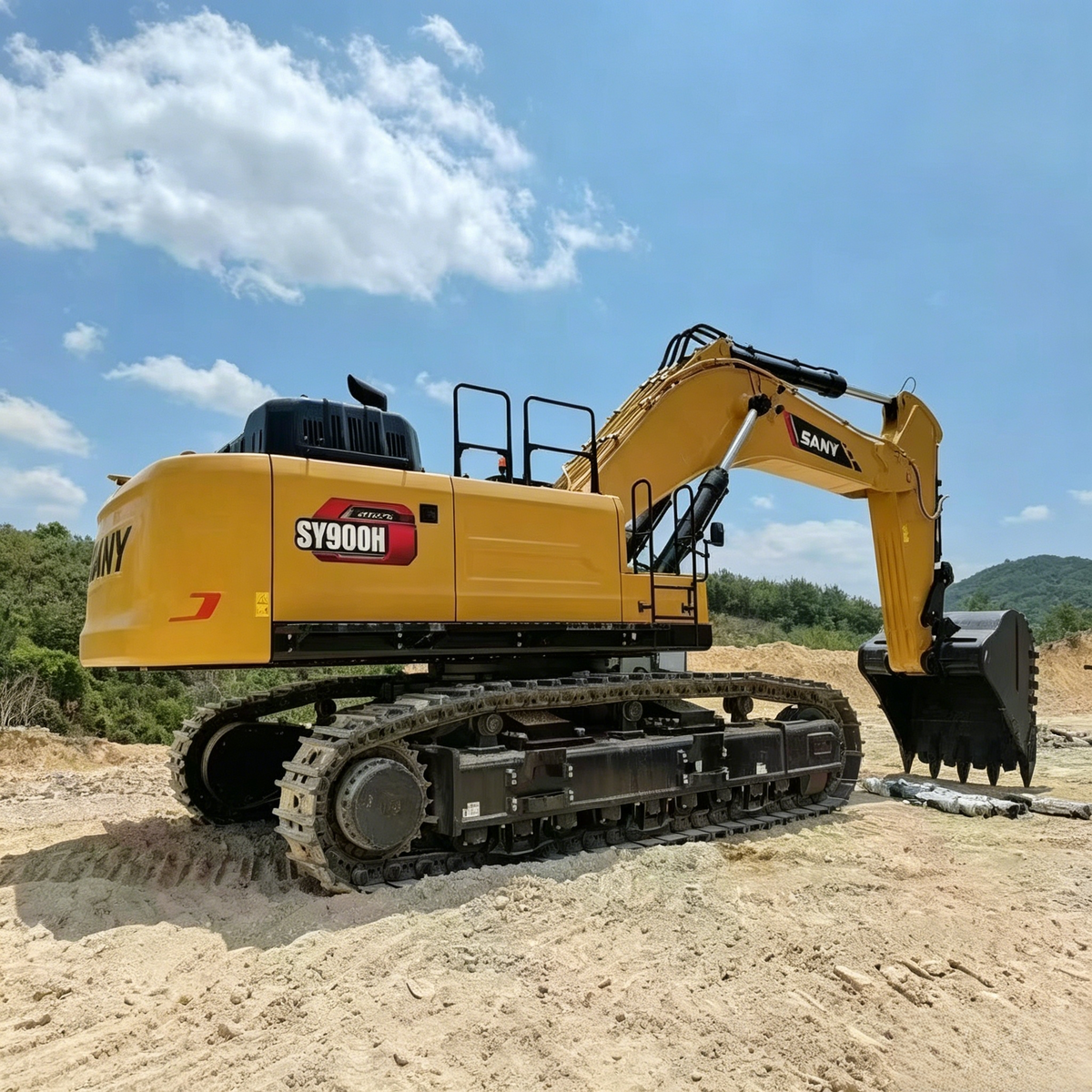

USED SANY SY900H

USED SANY SY900H

$85,000.00 USD
$85,000.00 USD
Sale Sold out
Parameter Value
Model SANY SY900H
Machine Type Mining Crawler Excavator
Operating Weight 90000 kg
Standard Bucket Capacity 5.5 m³
Engine Model Isuzu 6UZ1
Rated Power 470 kW @ 1800 rpm
Engine Displacement 18.0 L
High Travel Speed 4.5 km/h
Low Travel Speed 2.4 km/h
Swing Speed 7.2 rpm
Gradeability 70%
Bucket Digging Force 485 kN
Arm Digging Force 380 kN
Max Digging Depth 10100 mm
Max Digging Radius 15100 mm
Max Digging Height 14350 mm
Max Dumping Height 10050 mm
Overall Transport Length 14800 mm
Overall Width 4450 mm
Overall Height 4320 mm
Track Shoe Width 900 mm
Fuel Tank Capacity 1100 L
Hydraulic Working Pressure 37.5 MPa
Electrical System Voltage 24 V
