SHANTUI

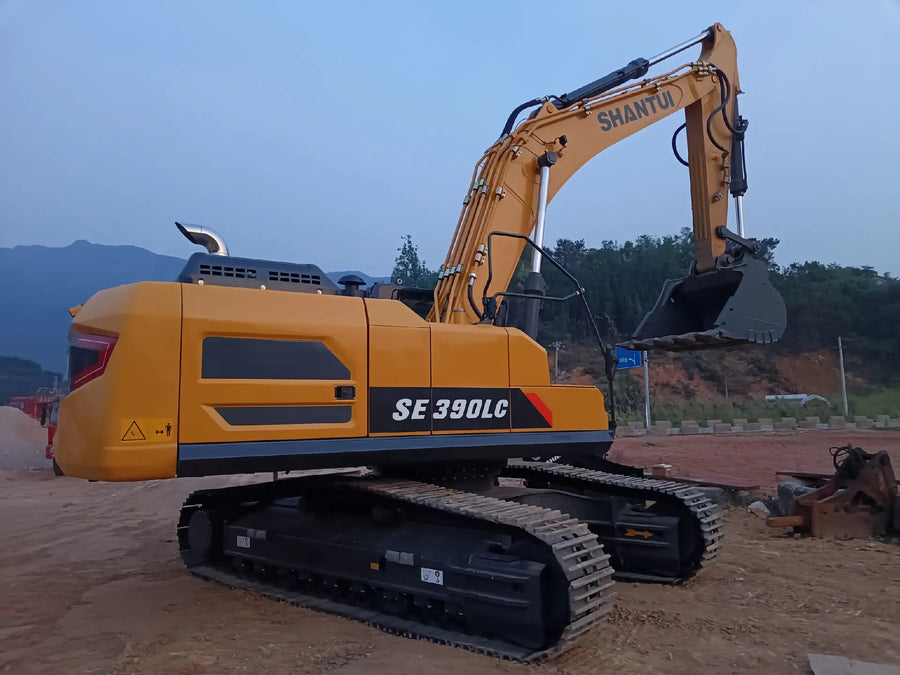

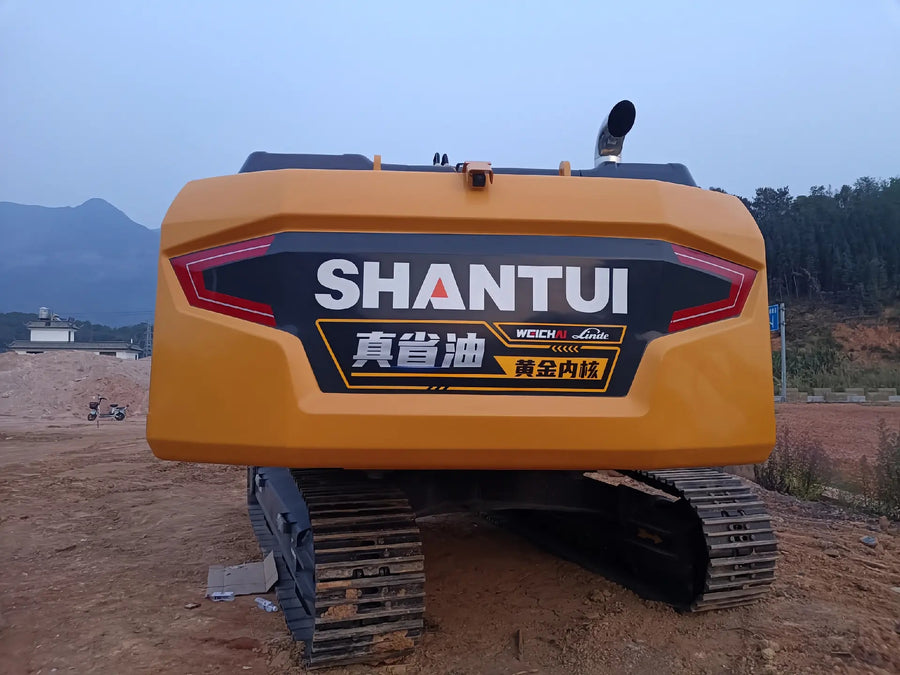

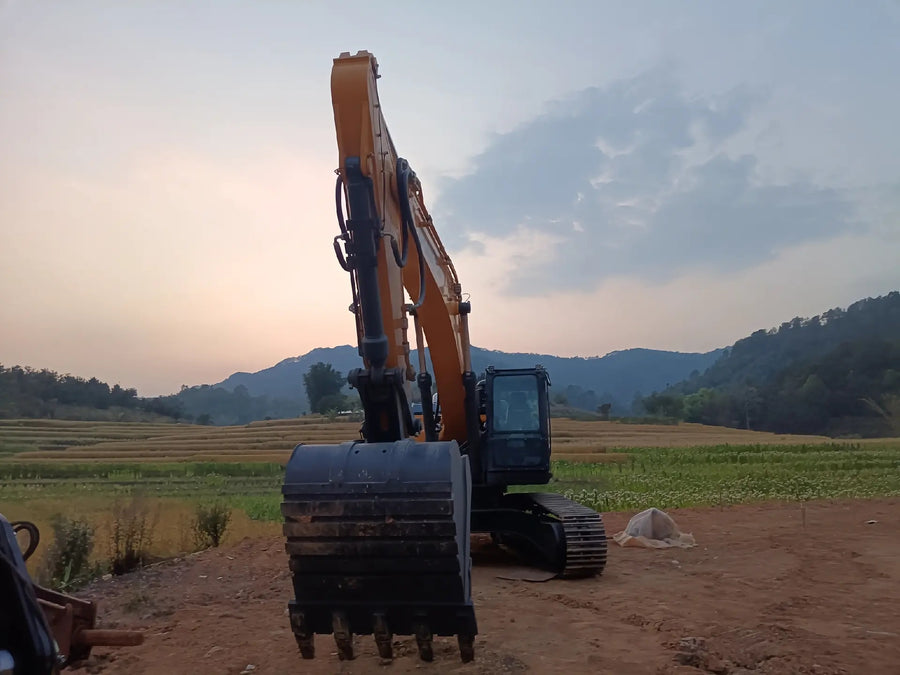

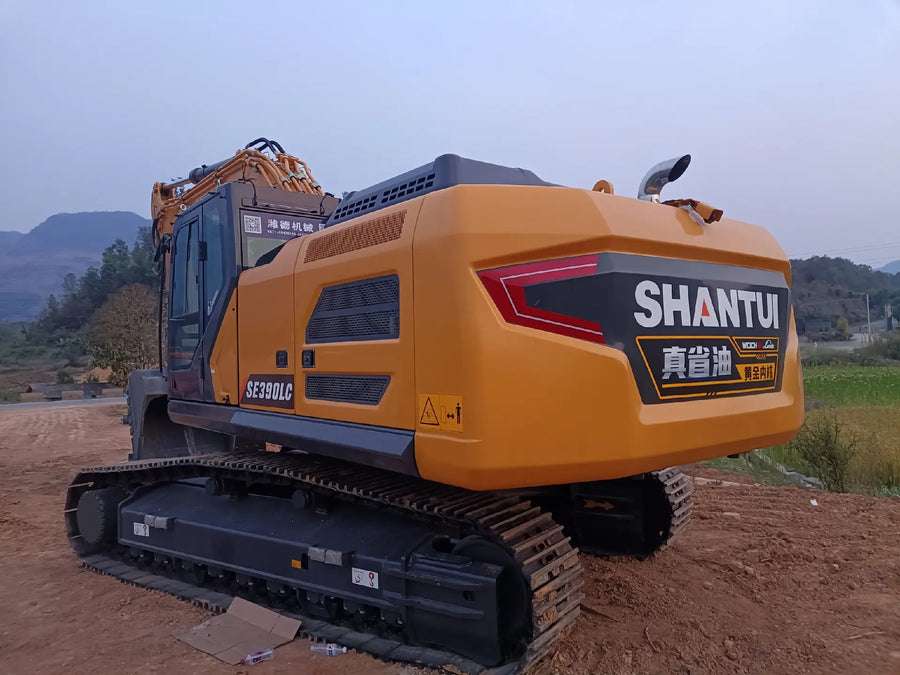

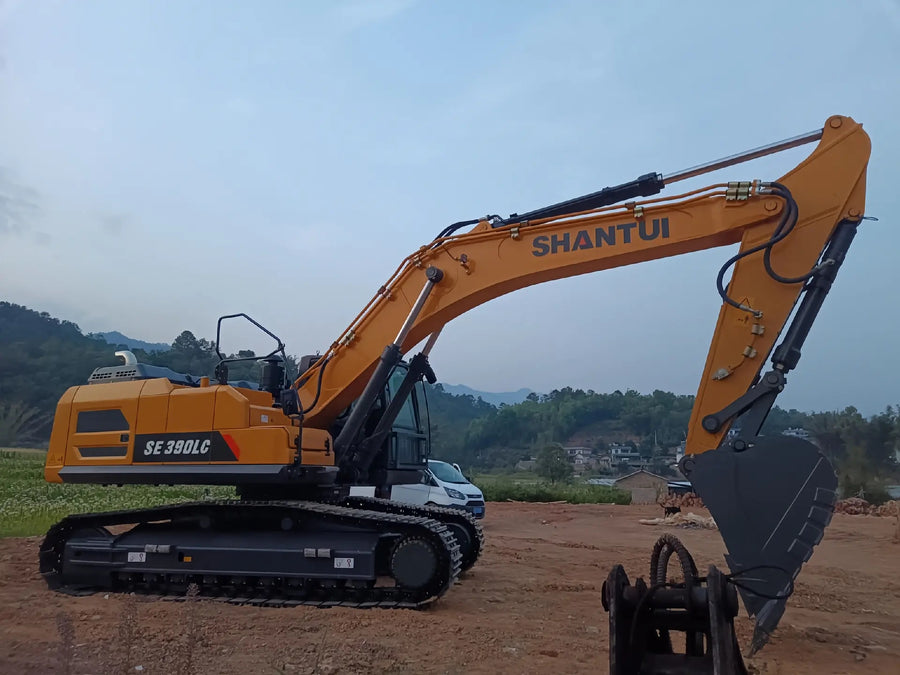

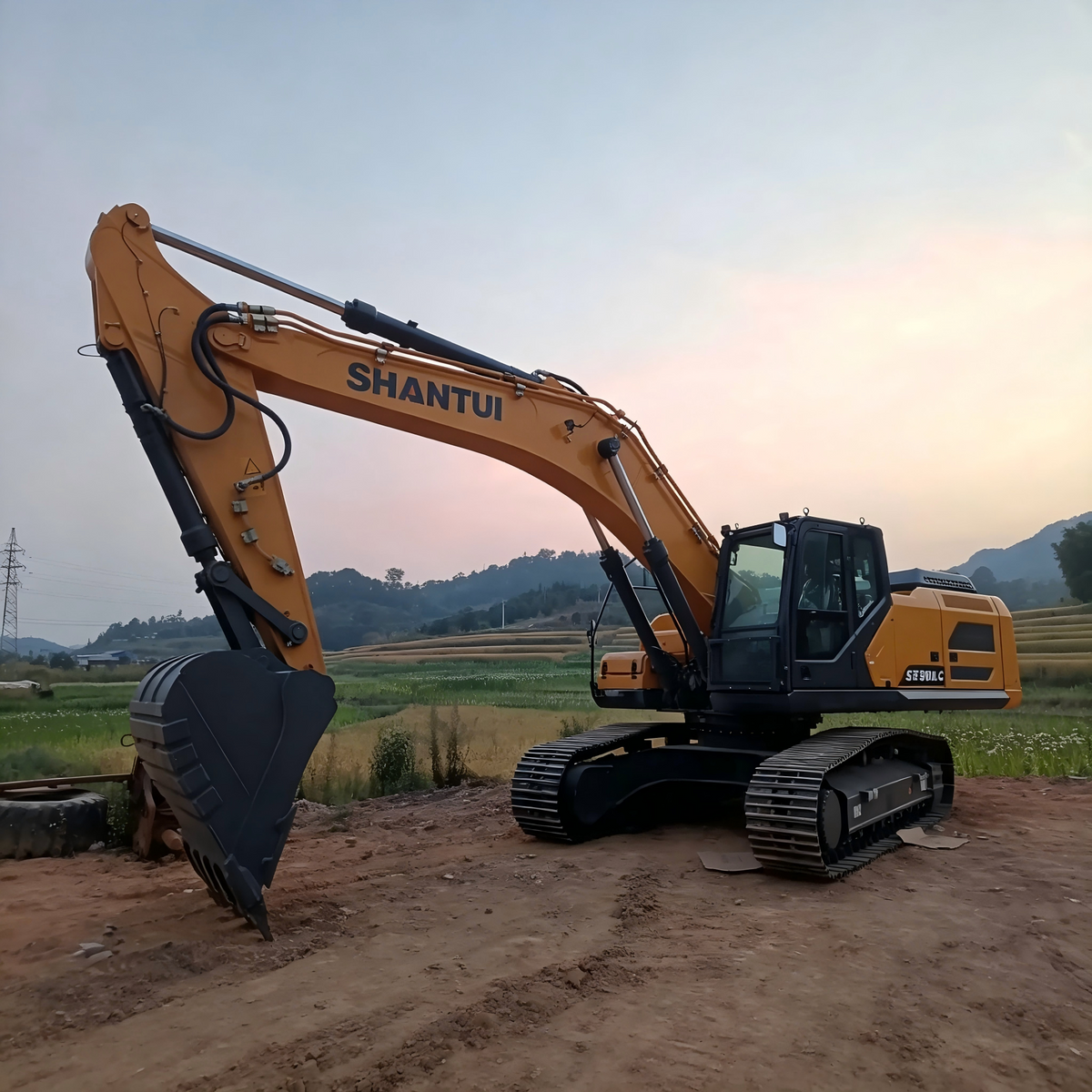

USED SHANTUI SE390LC

USED SHANTUI SE390LC

$36,000.00 USD
$36,000.00 USD
Sale Sold out
Parameter Unit Value
Operating Weight kg 38800
Standard Bucket Capacity m³ 2.0
Engine Model - Cummins QSL9
Rated Power kW/rpm 253/2000
Emission Standard - China Stage III
Displacement L 8.9
Swing Speed r/min 9.3
Travel Speed km/h 2.9/4.8
Gradeability % 70
Bucket Digging Force kN 255
Arm Digging Force kN 190
Ground Pressure kPa 60
Overall Transport Length mm 11620
Overall Width mm 3290
Overall Height (Cab Top) mm 3480
Track Shoe Width mm 700
Track Gauge mm 2590
Minimum Ground Clearance mm 565
Maximum Digging Radius mm 12380
Maximum Digging Depth mm 8420
Maximum Digging Height mm 11850
Maximum Dumping Height mm 8260
Fuel Tank Capacity L 650
Hydraulic Tank Capacity L 320
