| Model |

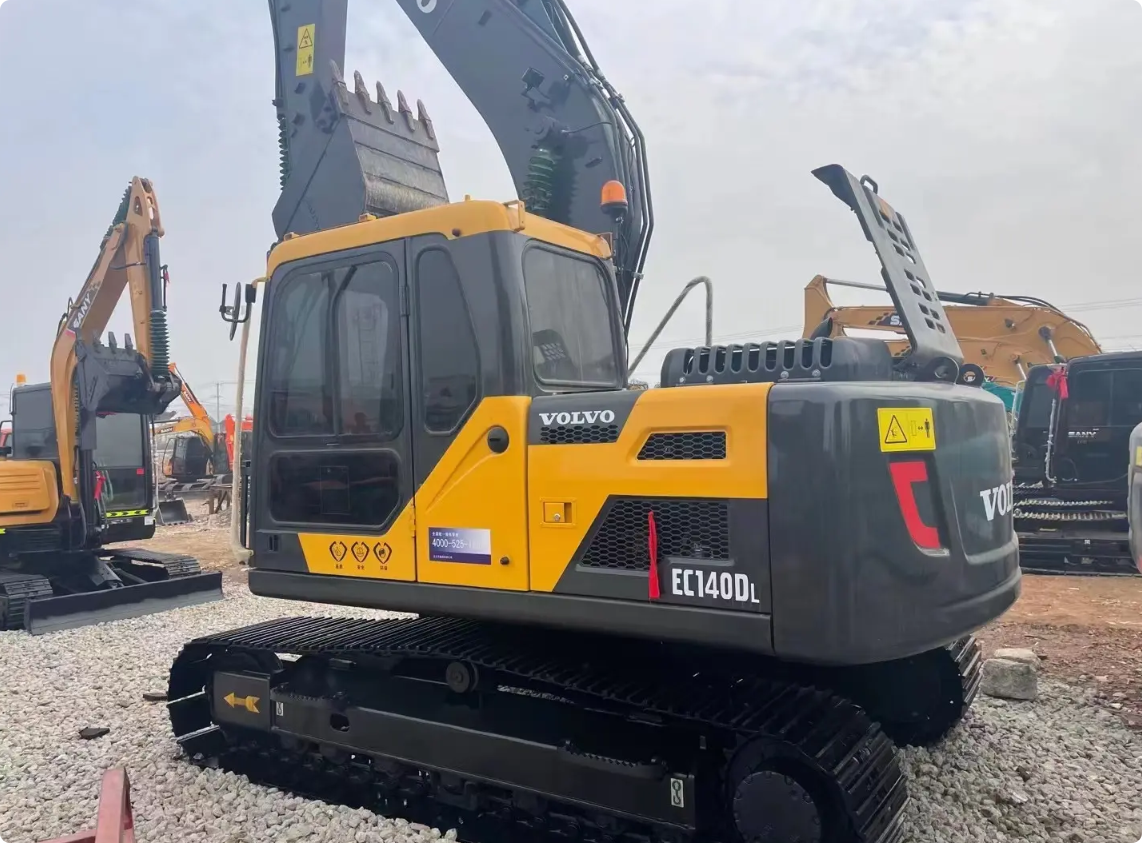

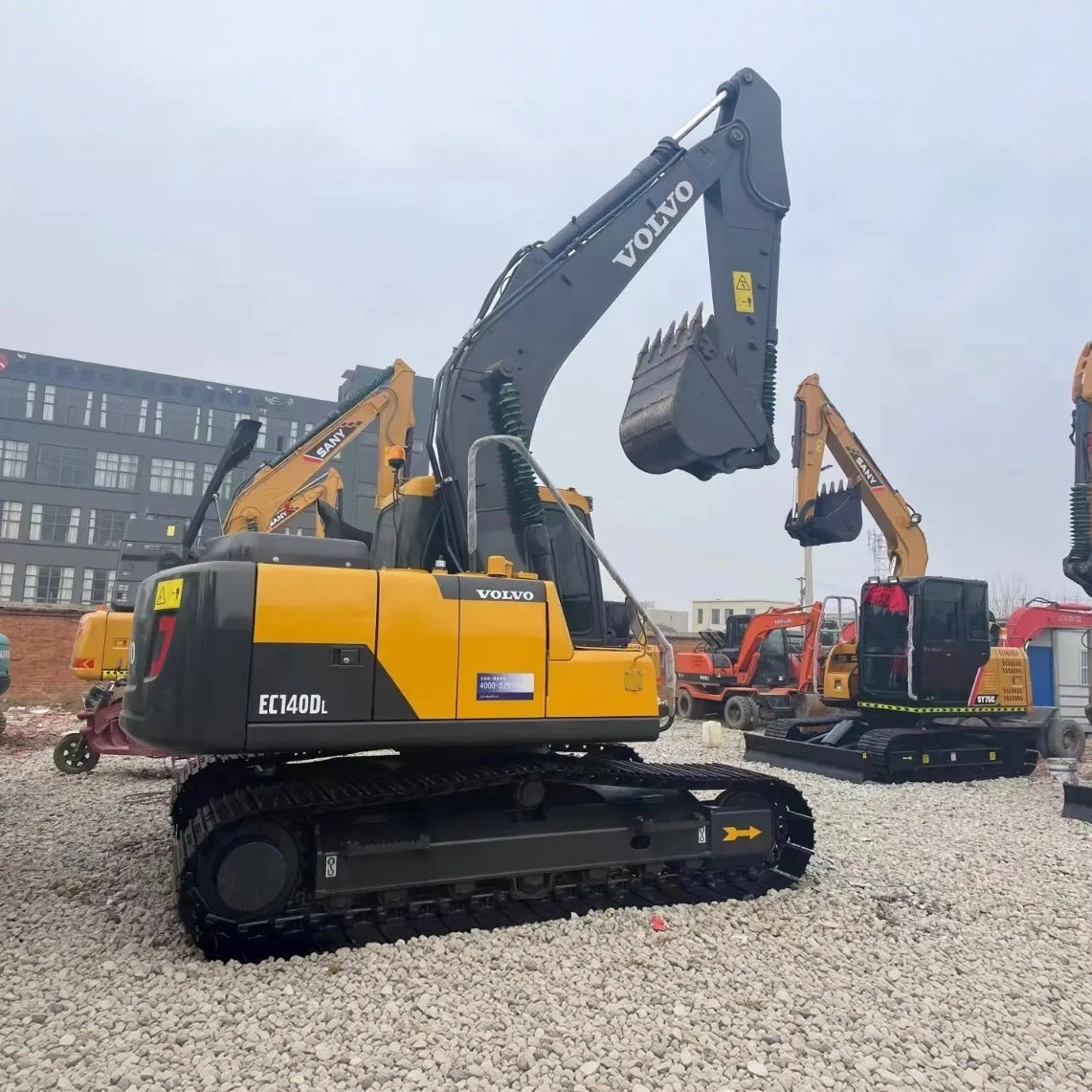

VOLVO EC140DL Medium Hydraulic Crawler Excavator (Long Track Version) |
| Operating Weight (Standard Cab + 500mm Steel Track) |
13500 kg |
| Standard Heaped Bucket Capacity (ISO) |
0.54 m³ (Optional:0.45~0.66 m³) |
| Overall Transport Length |
7720 mm |
| Overall Transport Width |
2590 mm |
| Overall Transport Height (Cab Top) |
2770 mm |
| Full Transport Height (With Boom Assembly) |
3010 mm |

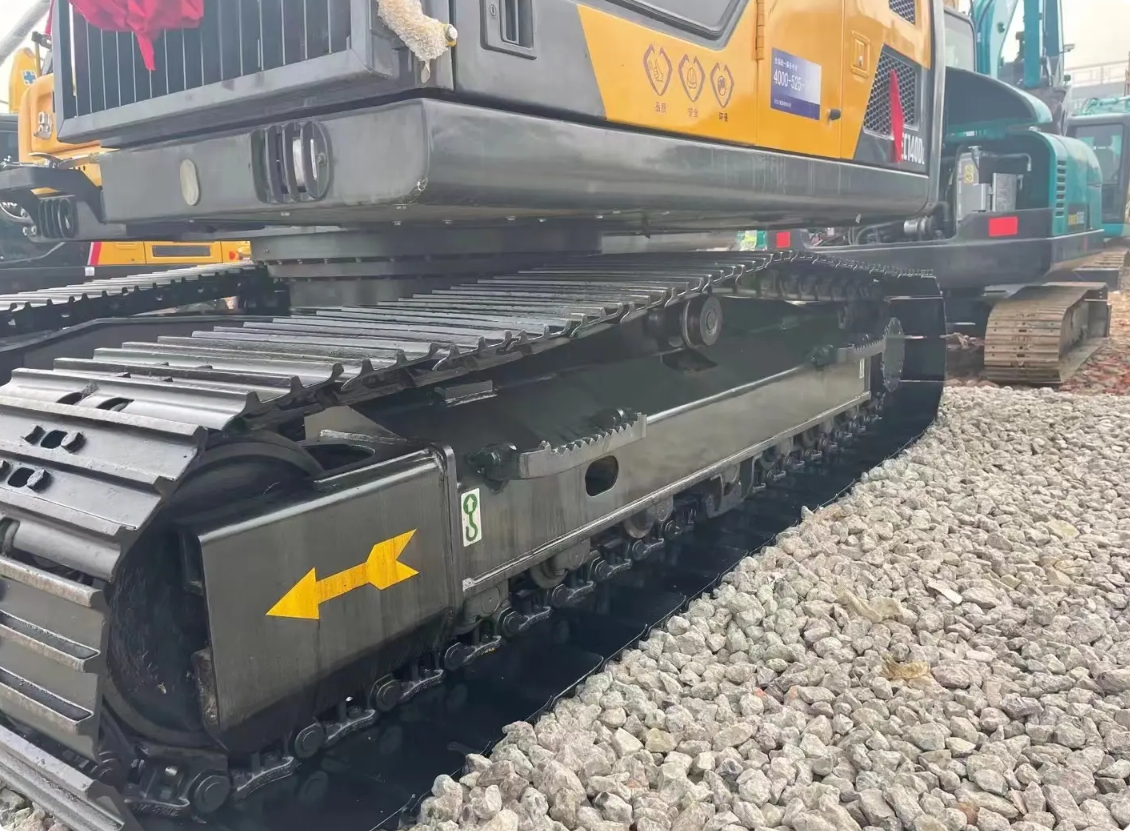

| Standard Track Shoe Width |
500 mm |
| Track Gauge |
1990 mm |
| Track Length on Ground |
3040 mm |
| Minimum Ground Clearance |
436 mm |
| Rear Swing Radius |
2200 mm |

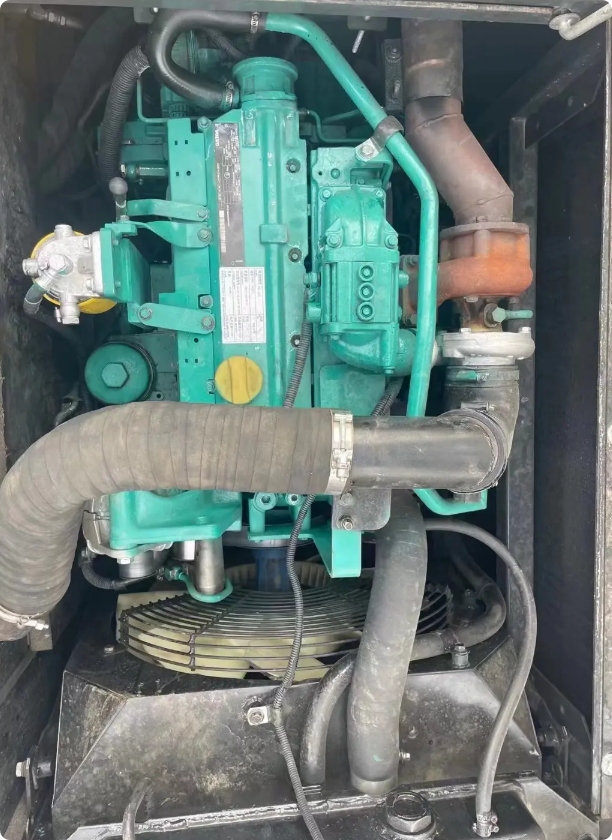

| Engine Model |
VOLVO D3.8E 4-Cylinder Turbocharged Intercooled Diesel Engine |
| Engine Type |
Water-cooled, 4-stroke, in-line, turbocharged common rail direct injection diesel |
| Rated Net Power (ISO 9249) |
73.3 kW @ 2200 rpm |
| Engine Displacement |
3.77 L |
| Max Engine Torque |
370 N·m @1500 rpm |
| Fuel Tank Capacity |
250 L |
| Hydraulic Tank Capacity |
130 L |
| Main Hydraulic Relief Pressure (Standard / Power Boost) |
32.4 MPa / 34.3 MPa |
| Total Main Pump Flow |
2×118 L/min |
| Max Digging Reach (Ground Level) |
8190 mm |
| Max Total Digging Reach |
8330 mm |
| Max Digging Depth |
5530 mm |
| Max Vertical Wall Digging Depth |
4870 mm |
| Max Digging Height |
8240 mm |
| Max Dumping Height |
6020 mm |
| Bucket Digging Force (ISO Standard) |
98.5 kN |
| Arm Digging Force (ISO Standard) |
67.3 kN |
| Max Drawbar Pull Force |
119 kN |
| Swing Rotation Speed |
11.2 rpm |
| Travel Speed (Low / High Gear) |
2.9 km/h / 5.2 km/h |
| Gradeability |
35° (70%) |
| Ground Contact Pressure |
40.2 kPa |
| Standard Boom Length |
4600 mm |
| Standard Stick Length |
2500 mm |
