XCMG

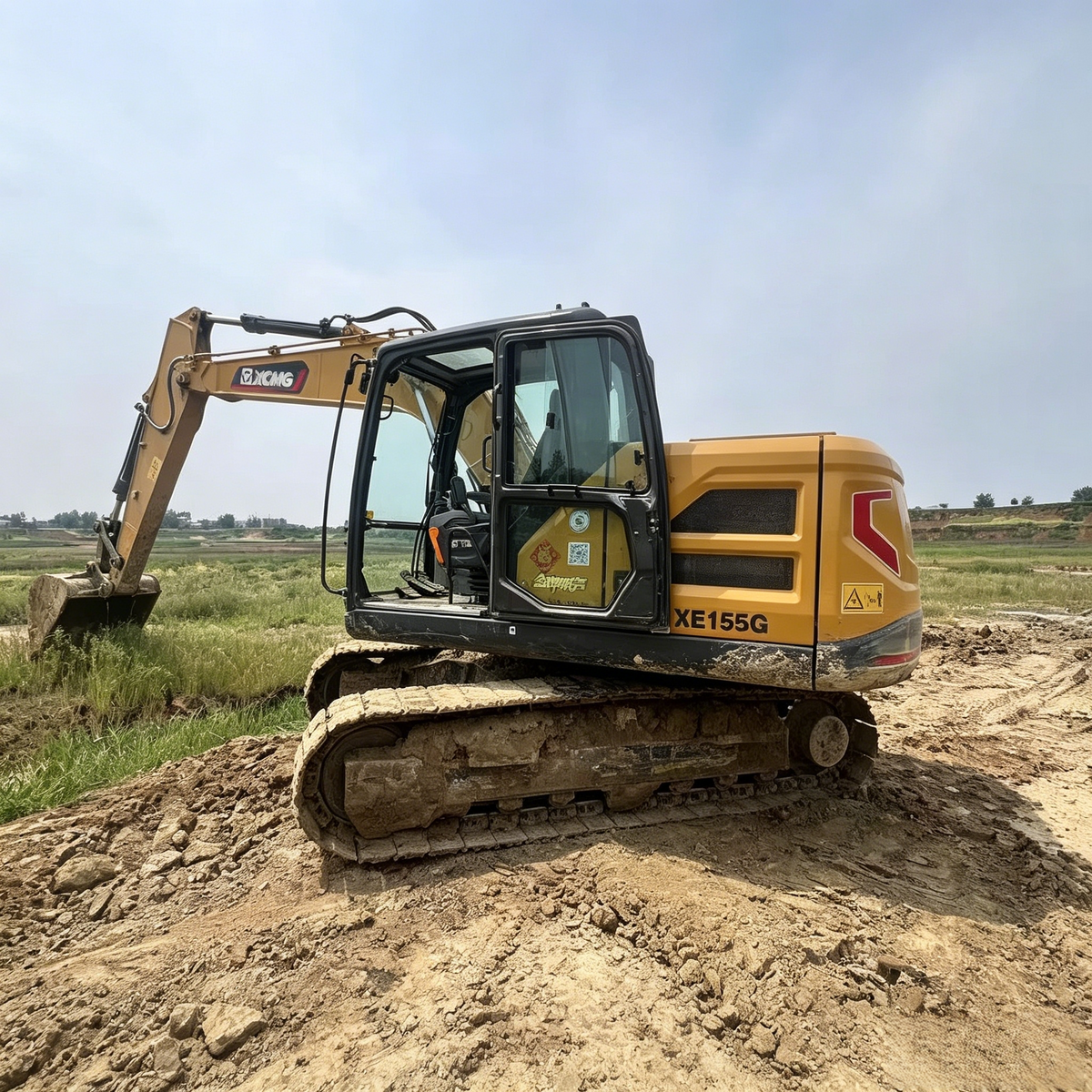

USED XCMG XE155G

$17,500.00 USD

Sale Sold out

Item	Specification
Model	XCMG XE155GA
Operating Weight	14,600 kg
Standard Bucket Capacity	0.65 m³ (Range: 0.32–0.72 m³)
Overall Dimensions (L×W×H)	7,825 × 2,590 × 2,950 mm
Track Shoe Width	600 mm
Track Gauge	1,990 mm
Min. Ground Clearance	477 mm
Tail Swing Radius	2,325 mm

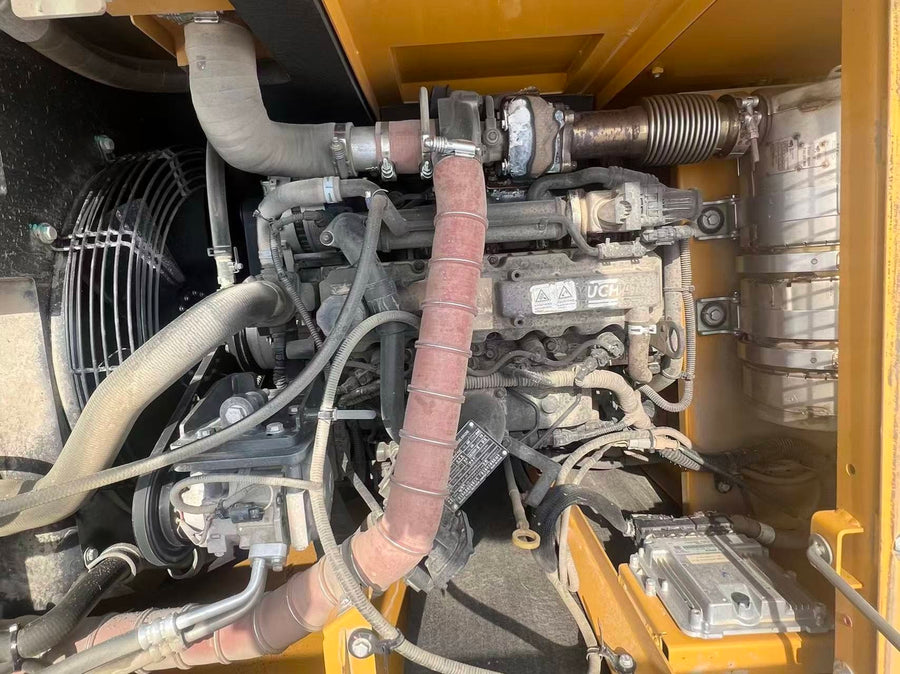

Engine Model	Cummins F4.5CS4129 (4-cylinder, turbocharged, water-cooled)
Rated Power	89 kW @ 2,200 rpm
Max Torque	570 N·m @ 1,300 rpm
Displacement	4.5 L
Emission Standard	China Stage IV (EGR+DOC+DPF, No urea required)
Fuel Tank Capacity	260 L
Hydraulic Tank Capacity	110 L
Max Digging Depth	5,555 mm
Max Digging Radius (Ground Level)	8,310 mm
Max Digging Height	8,650 mm
Max Dumping Height	6,190 mm
Bucket Digging Force	107 kN
Arm Digging Force	73.5 kN
Max Traction Force	134 kN
Travel Speed (Low/High)	3.2 / 5.3 km/h
Swing Speed	11.7 rpm
Gradeability	35° (70%)
Ground Pressure	37 kPa
