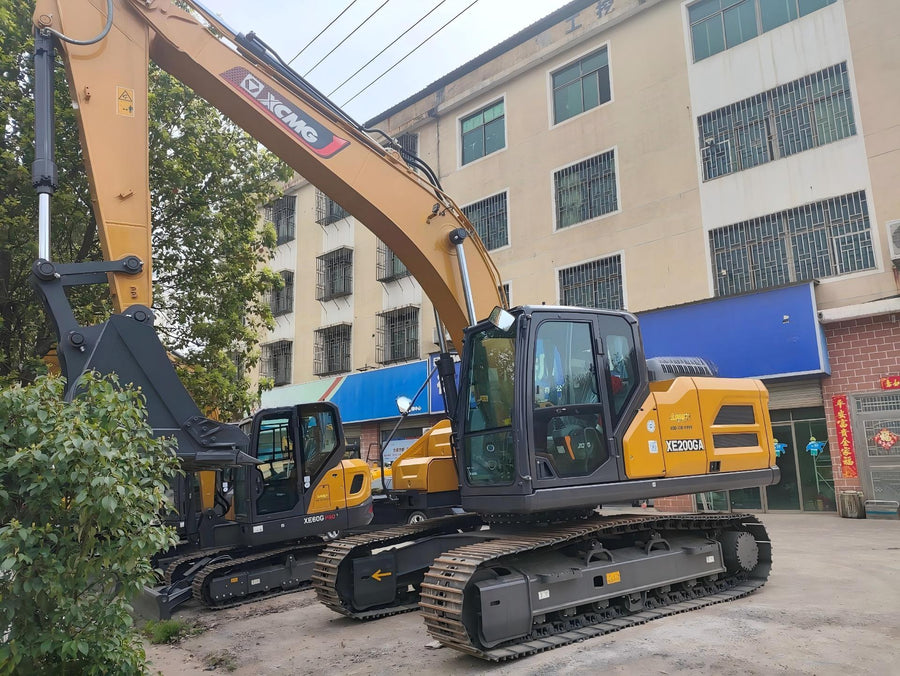

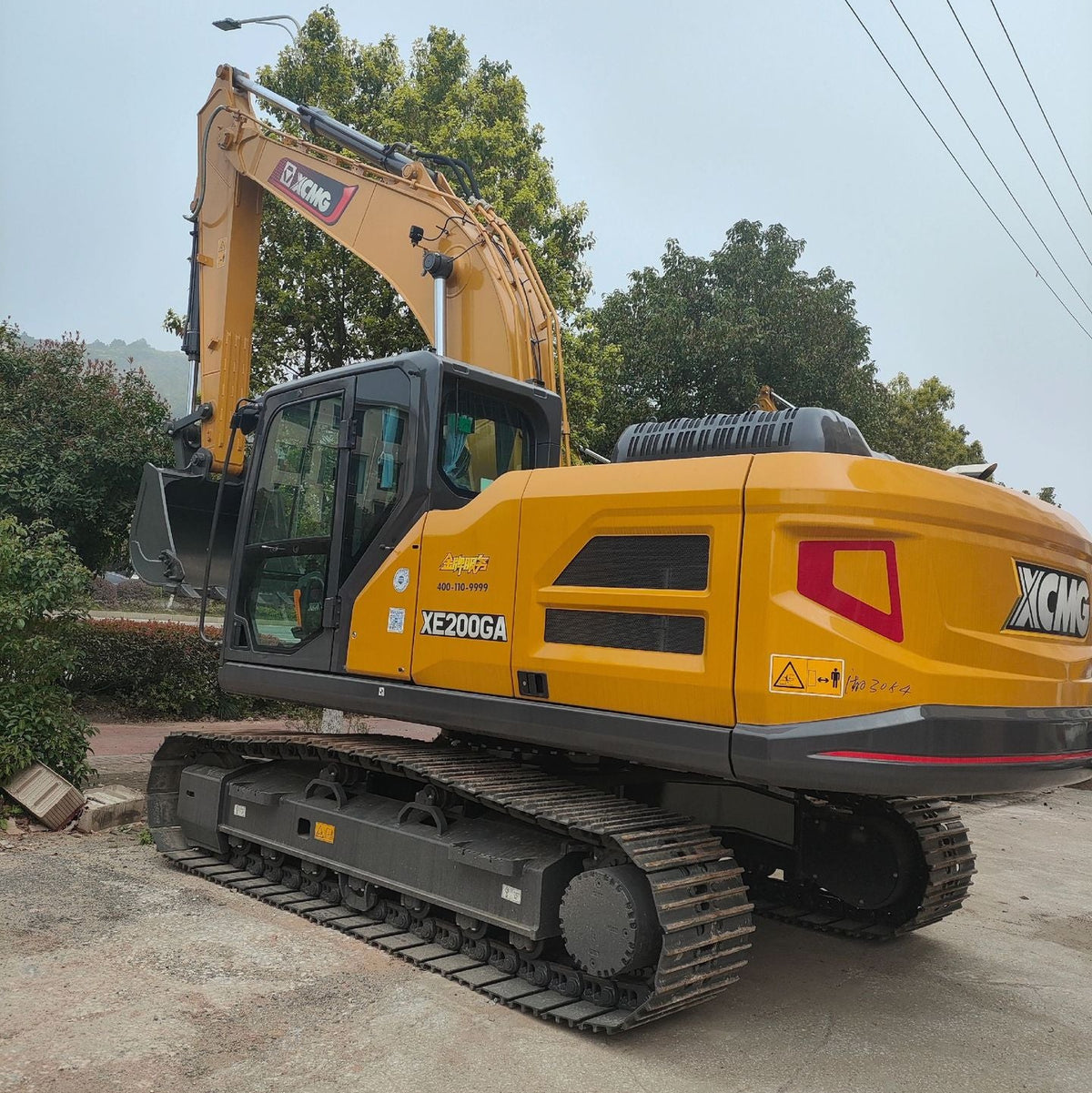

USED XCMG XE200GA
USED XCMG XE200GA
Regular price
$18,000.00 USD
Regular price
Sale price
$18,000.00 USD
Quantity
Couldn't load pickup availability
| Item | Specification |
|---|---|
| Model | XCMG XE200GA (G‑Series, 21.2t, Stage IV) |
| Operating Weight | 21,200 kg |
| Standard Bucket Capacity | 0.9–1.0 m³ (0.93 m³ GP bucket) |
| Optional Bucket Range | 0.8–1.1 m³ (rock/clamshell) |
| Undercarriage | Standard heavy‑duty crawler, 600 mm track shoes |

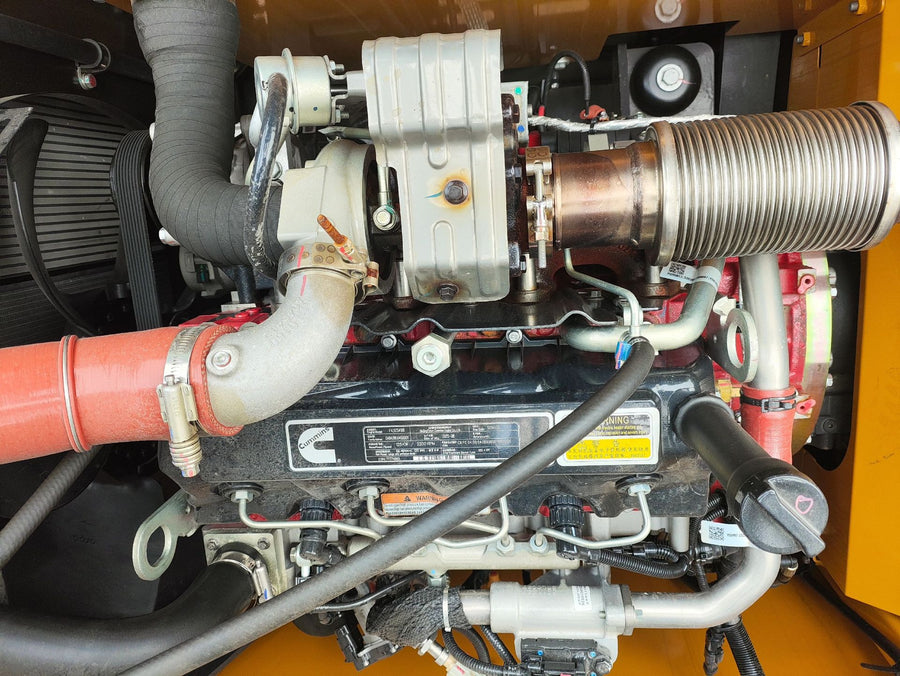

| Engine Model | Cummins F4.5PLUS 175 (4‑cylinder, Tier 4F/China IV, EGR+DOC+DPF) |
| Rated Power | 125 kW @ 2,200 rpm |
| Max Torque | ≈720 N·m |
| Fuel Tank Capacity | 400 L |
| DEF Tank | No urea (EGR+DOC+DPF) |
| Hydraulic Tank Capacity | 240 L |
| Bucket Digging Force | 149 kN |
| Arm Digging Force | 112 kN |
| Swing Torque | 105 kN·m |
| Swing Speed | 11.5 rpm |
| Travel Speed (Low/High) | 3.3 km/h / 5.4 km/h |
| Gradeability | 35° (70%) |
| Ground Pressure | 50 kPa |
| Max Digging Depth | 6,460 mm |
| Max Ground Reach | 9,790 mm |
| Max Digging Height | 9,450 mm |
| Max Dump Height | 6,815 mm |
| Min Swing Radius | 2,980 mm |

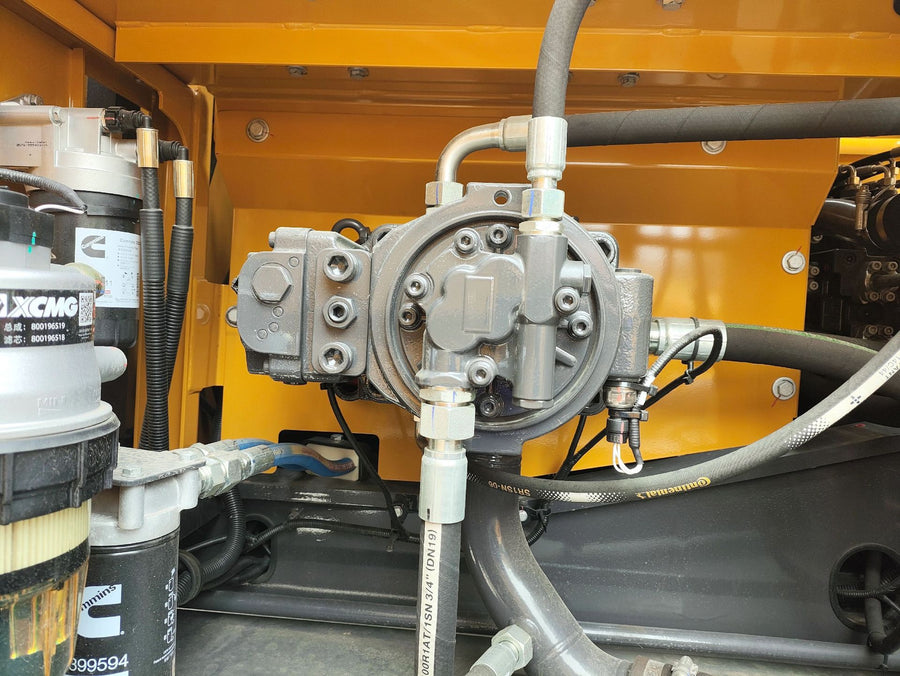

| Main Pump | Full electric control positive flow pumps |
| Hydraulic Pressure | 34.3 MPa |
| Transport Dimensions (L×W×H) | 9,750 × 2,920 × 2,980 mm |
