XCMG

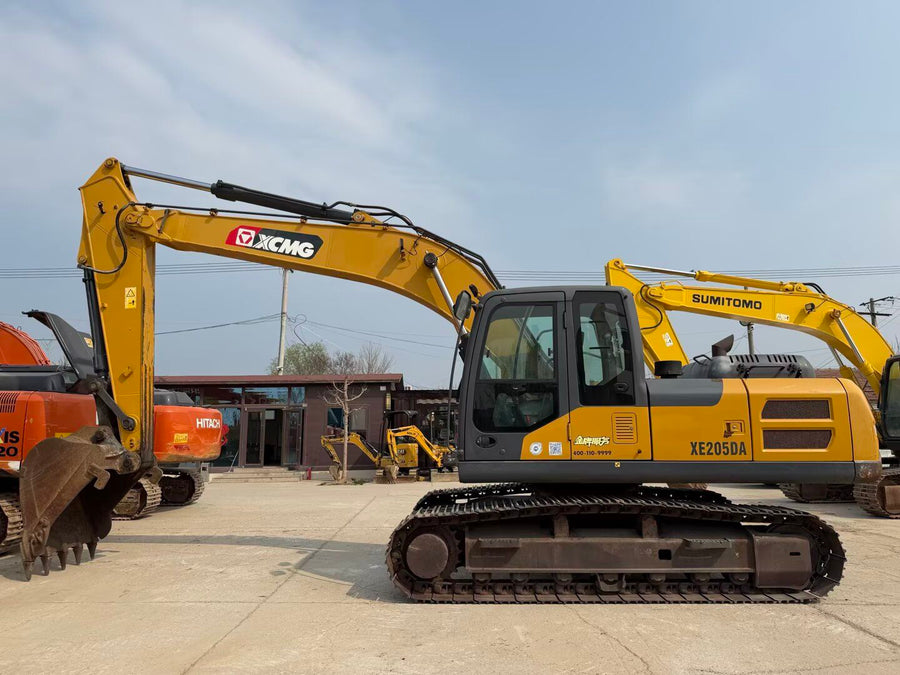

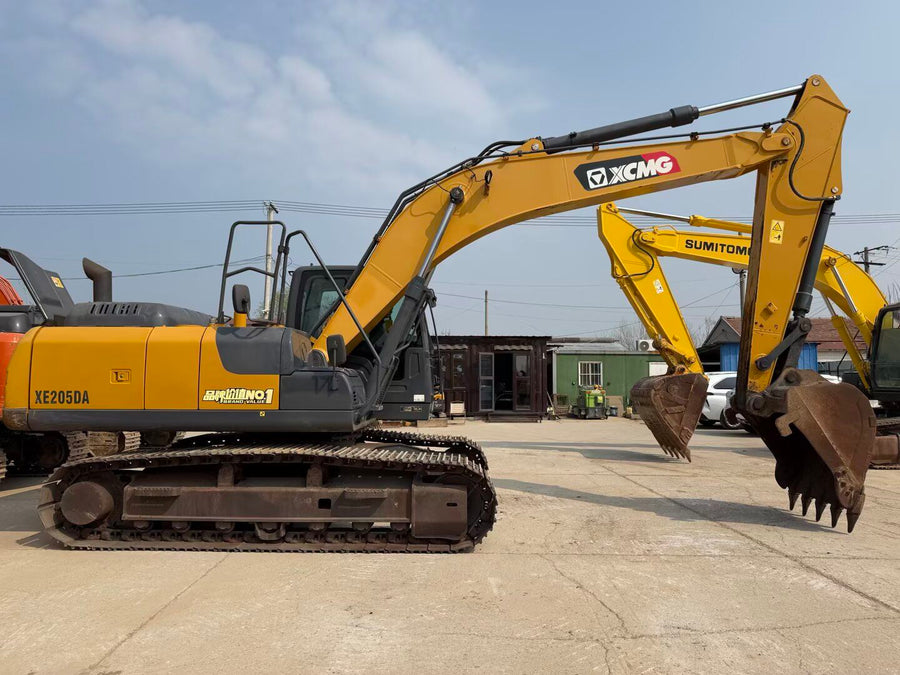

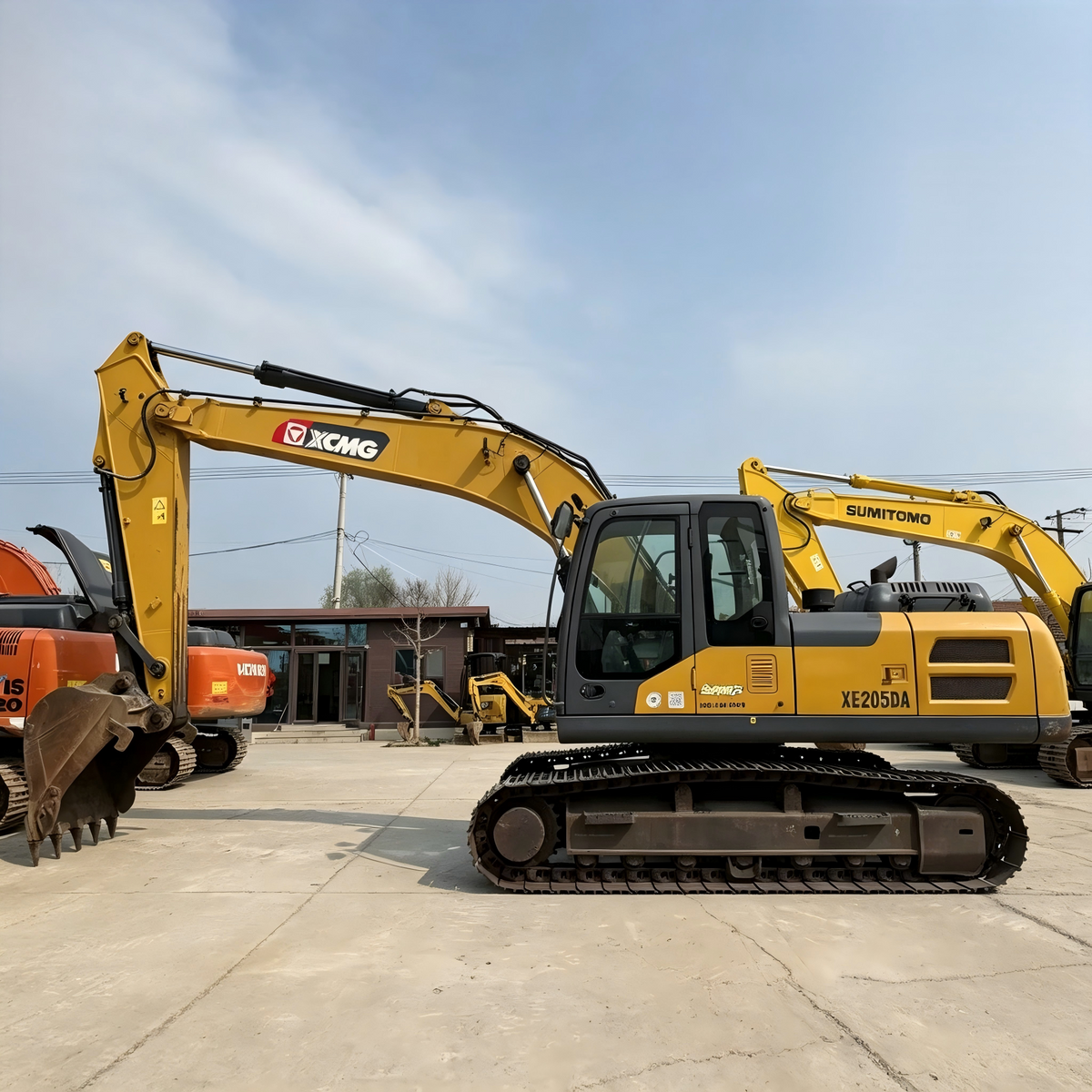

USED XCMG XE205DA

$15,000.00 USD

Sale Sold out

Item	Specification
Model	XCMG XE205DA (D‑Series, 21.5t, Stage III)
Operating Weight	21,500 kg
Standard Bucket Capacity	1.0 m³ (heavy‑duty GP)
Optional Bucket Range	0.93–1.2 m³ (rock/clamshell)

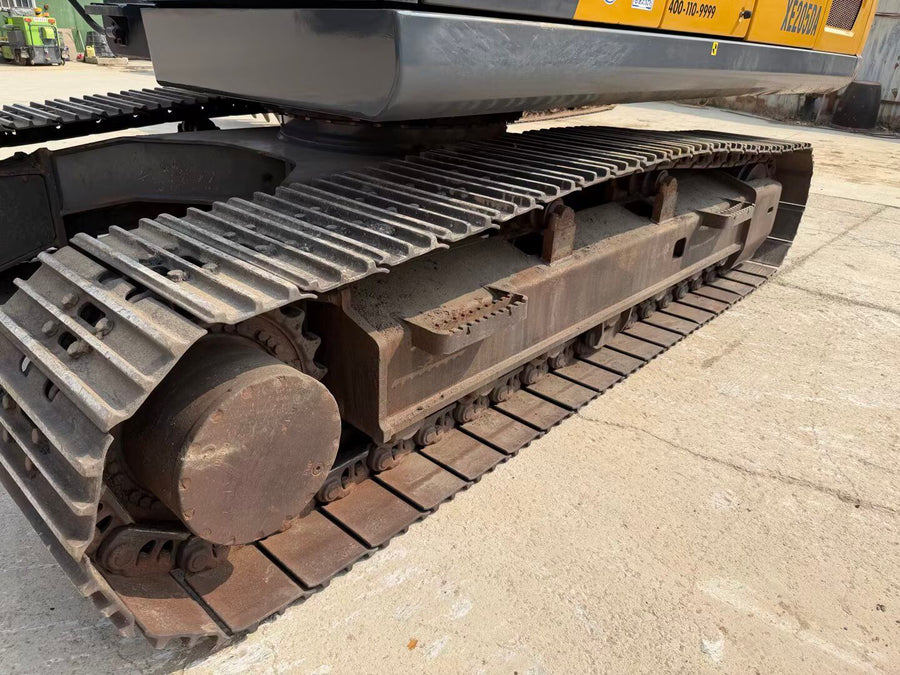

Undercarriage	Long & wide reinforced crawler, 600 mm track shoes
Engine Model	Cummins QSB7 (6‑cylinder, Tier 3/China III, turbocharged)
Rated Power	135 kW @ 2,050 rpm
Max Torque	≈820 N·m
Fuel Tank Capacity	400 L
DEF Tank	No urea (Tier 3)
Hydraulic Tank Capacity	220 L
Bucket Digging Force	157 kN
Arm Digging Force	116 kN
Swing Torque	108 kN·m
Swing Speed	12 rpm
Travel Speed (Low/High)	3.4 km/h / 5.8 km/h
Gradeability	35° (70%)
Ground Pressure	47.5 kPa
Max Digging Depth	6,660 mm
Max Ground Reach	9,760 mm
Max Digging Height	9,550 mm
Max Dump Height	6,750 mm
Min Swing Radius	3,530 mm

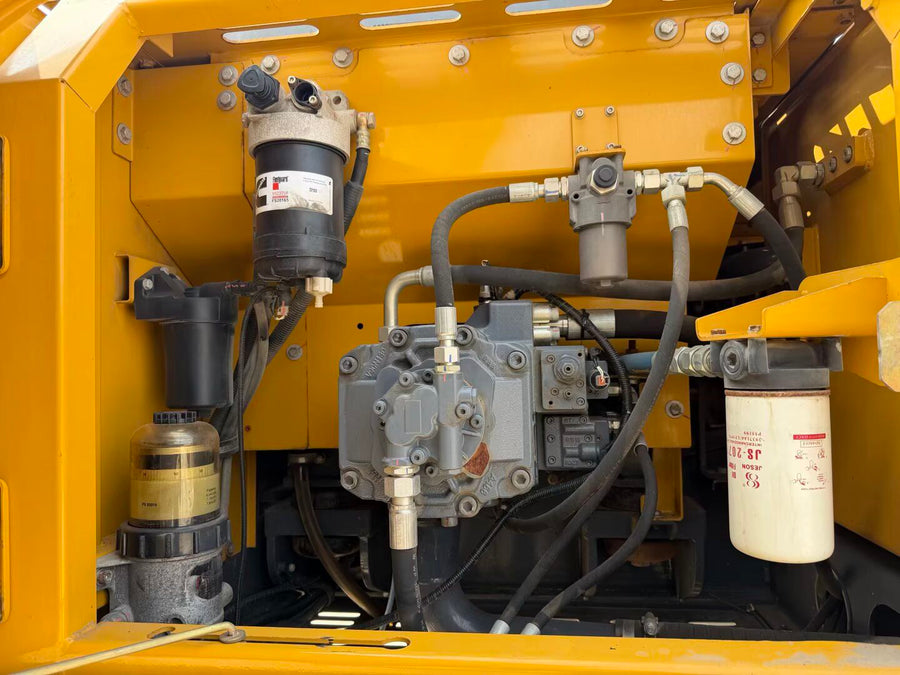

Main Pump	Kawasaki hydraulic pumps (mechanical control)
Hydraulic Pressure	34.3 MPa
Transport Dimensions (L×W×H)	9,630 × 2,910 × 3,100 mm
