XCMG

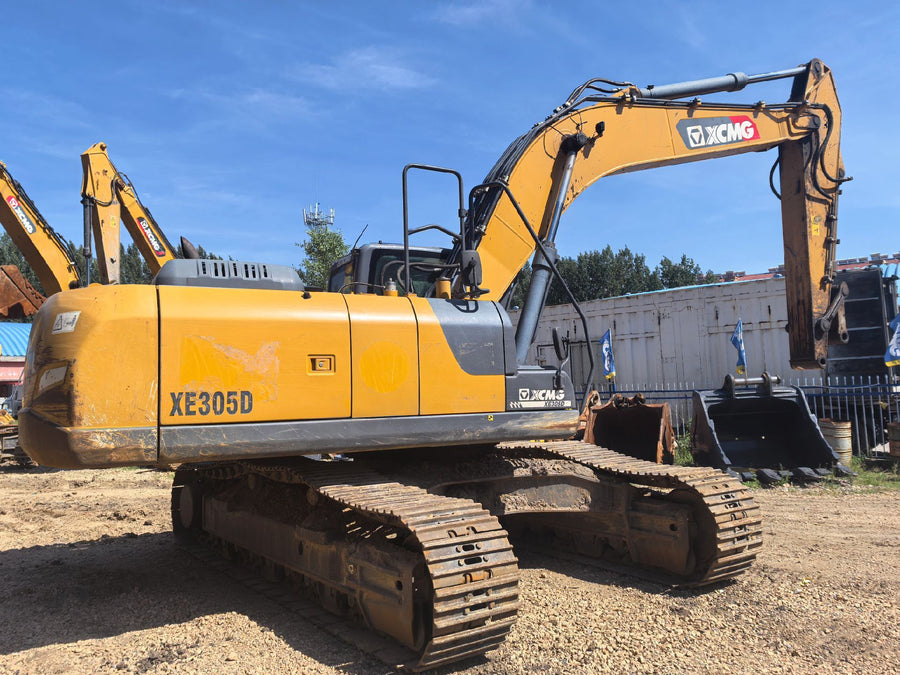

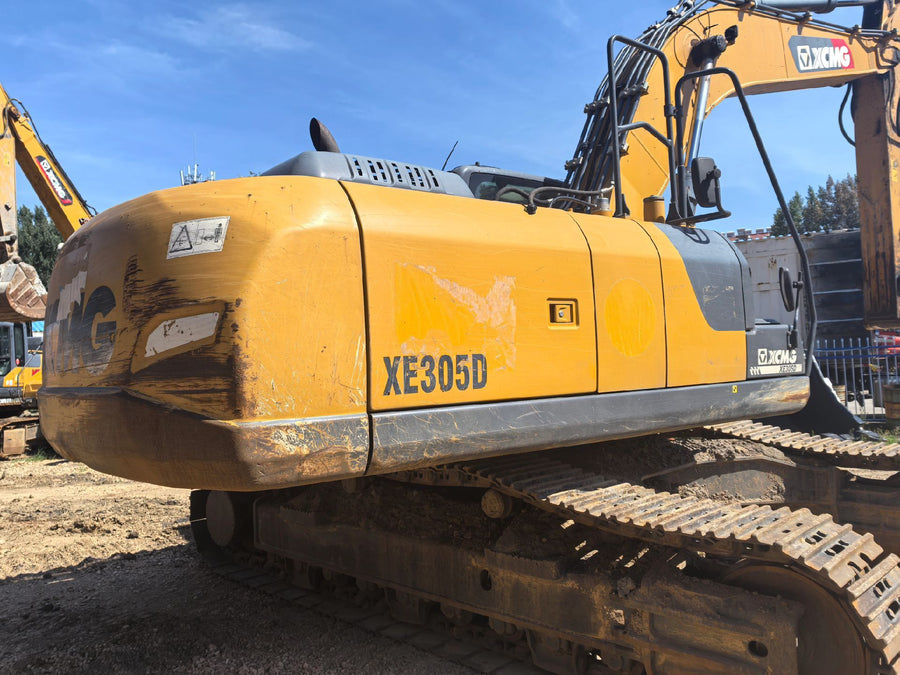

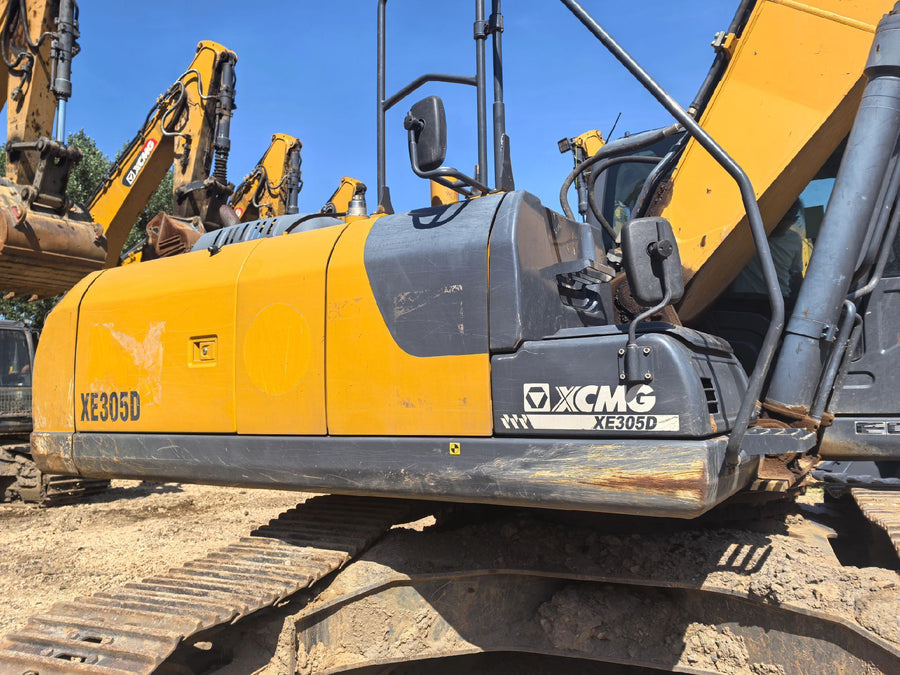

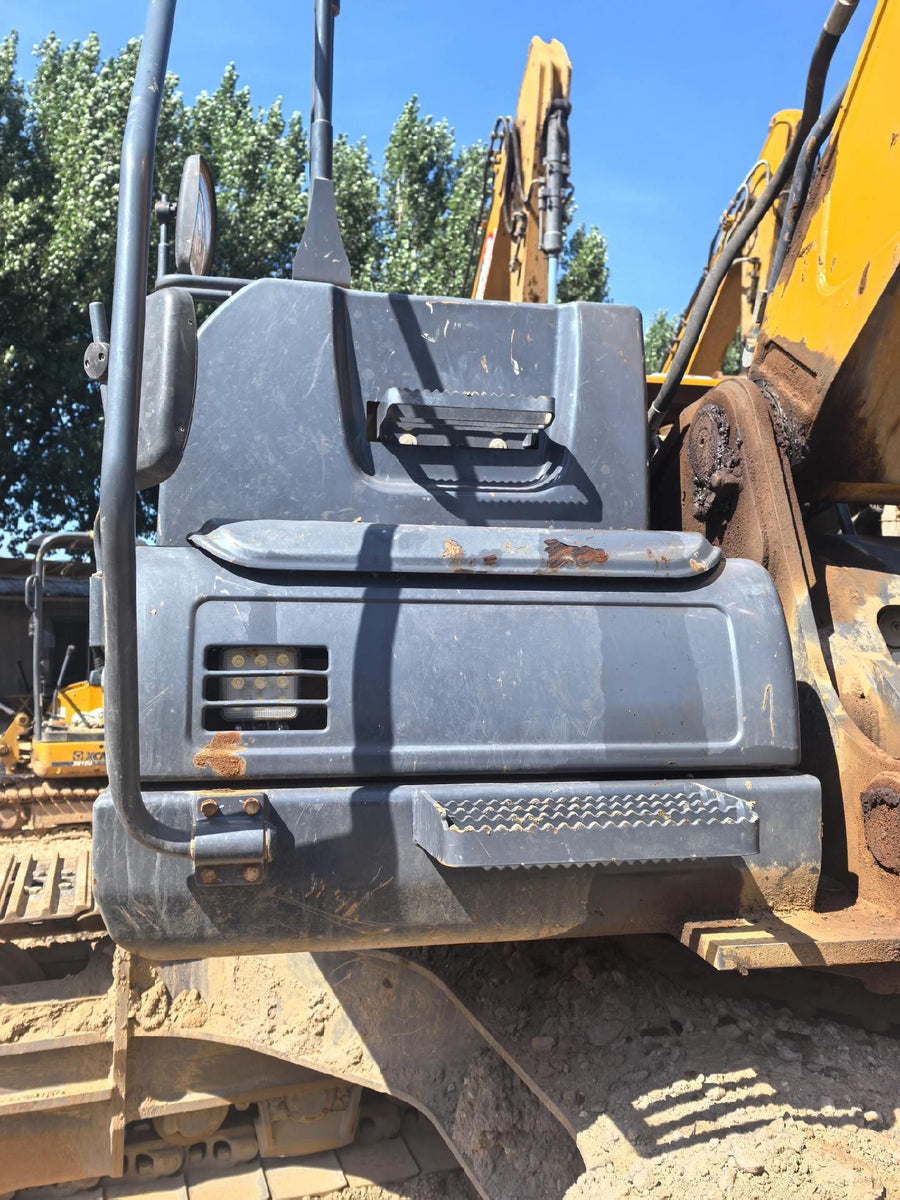

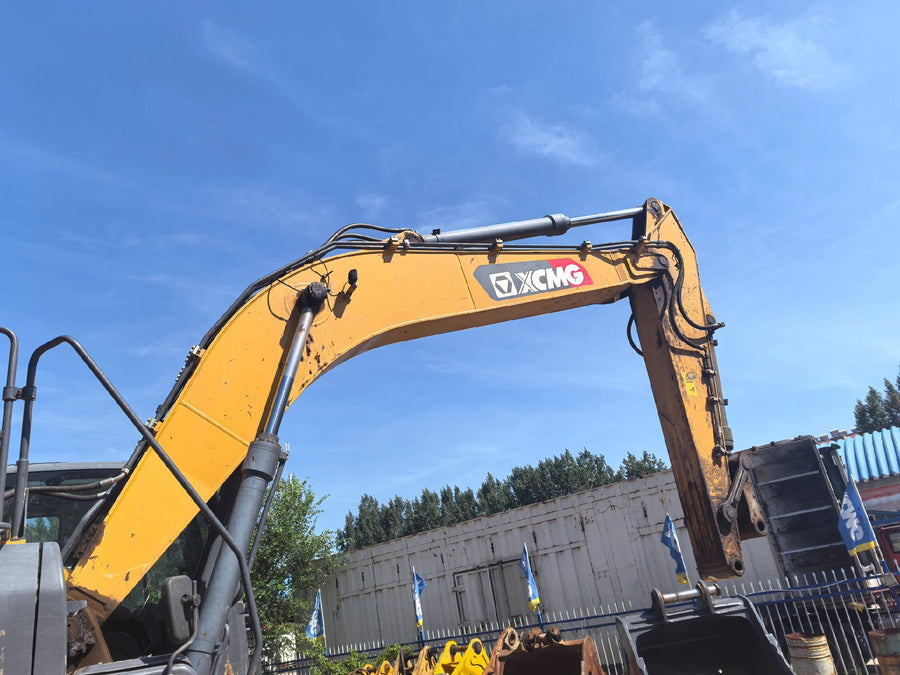

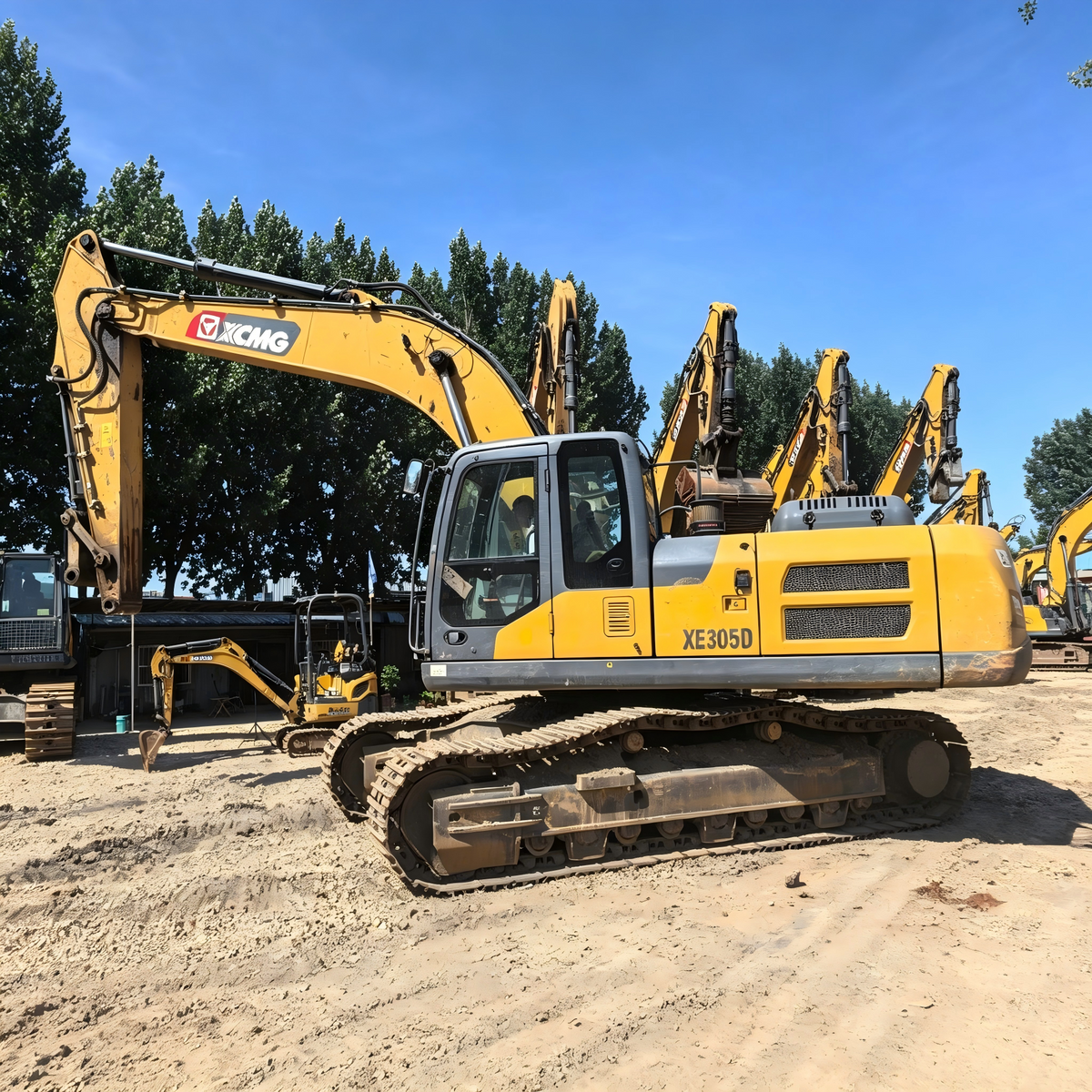

USED XCMG XE305D

$25,000.00 USD

Sale Sold out

Item	Specification
Model	XCMG XE305D (30.5t General Construction, China Stage III)
Operating Weight	30,500–32,500 kg
Standard Bucket Capacity	1.4 m³ (general bucket)
Optional Bucket Range	1.27–1.6 m³

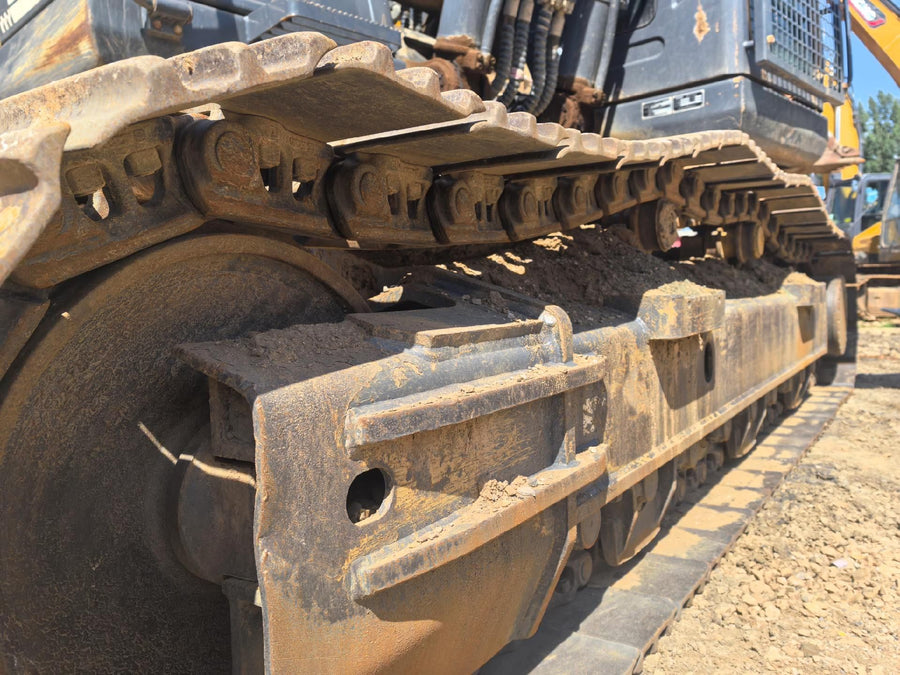

Undercarriage	Heavy‑duty crawler, 600 mm track shoes
Engine Model	Cummins 6CTA8.3‑C (6‑cylinder inline diesel, China Stage III)
Rated Power	169 kW @ 2,050 rpm
Max Torque	~890 N·m @ 1,500 rpm
Fuel Tank Capacity	520 L
Hydraulic Tank Capacity	270 L
Bucket Digging Force	198 kN
Arm Digging Force	138 kN
Max Traction Force	252 kN
Swing Torque	145 kN·m
Swing Speed	9.8 rpm
Travel Speed (Low/High)	3.1 km/h / 5.2 km/h
Gradeability	35° (70%)
Ground Pressure	62–66 kPa
Max Digging Depth	7,200 mm
Max Ground Reach	10,665 mm
Max Digging Height	10,146 mm
Max Dump Height	7,180 mm
Min Swing Radius	3,076 mm
