| Model |

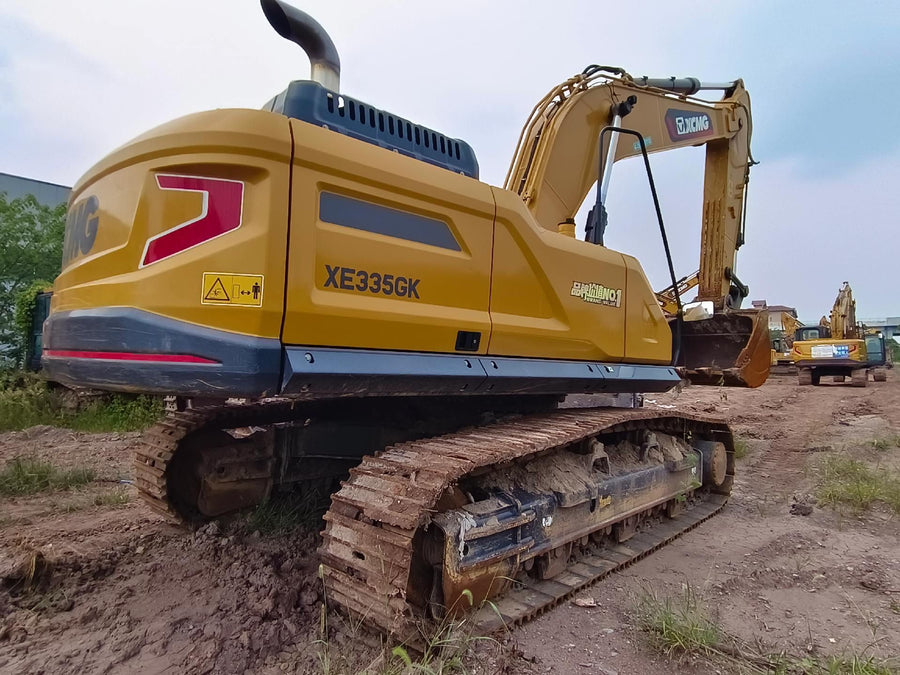

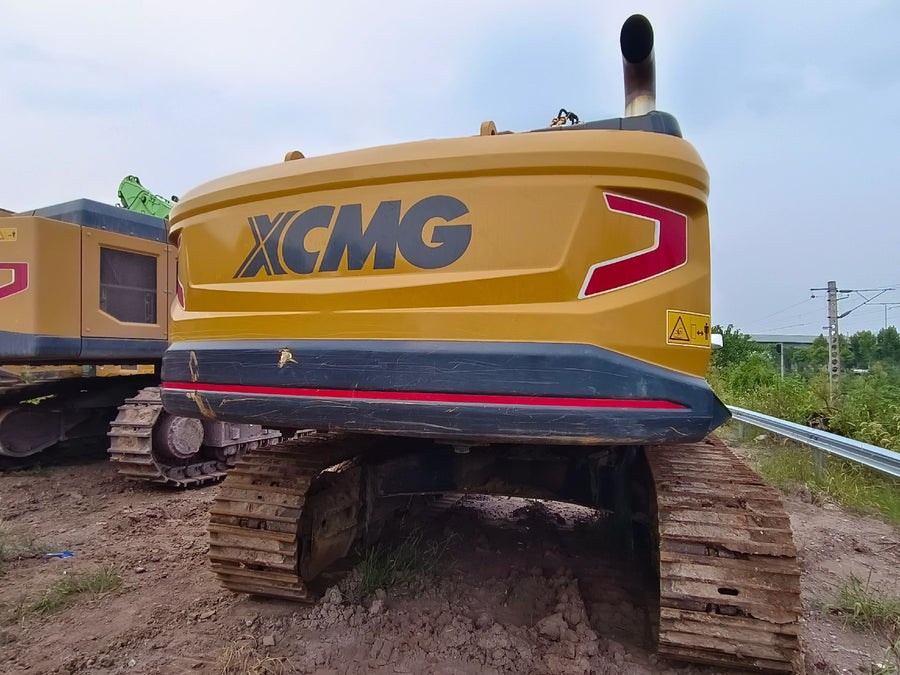

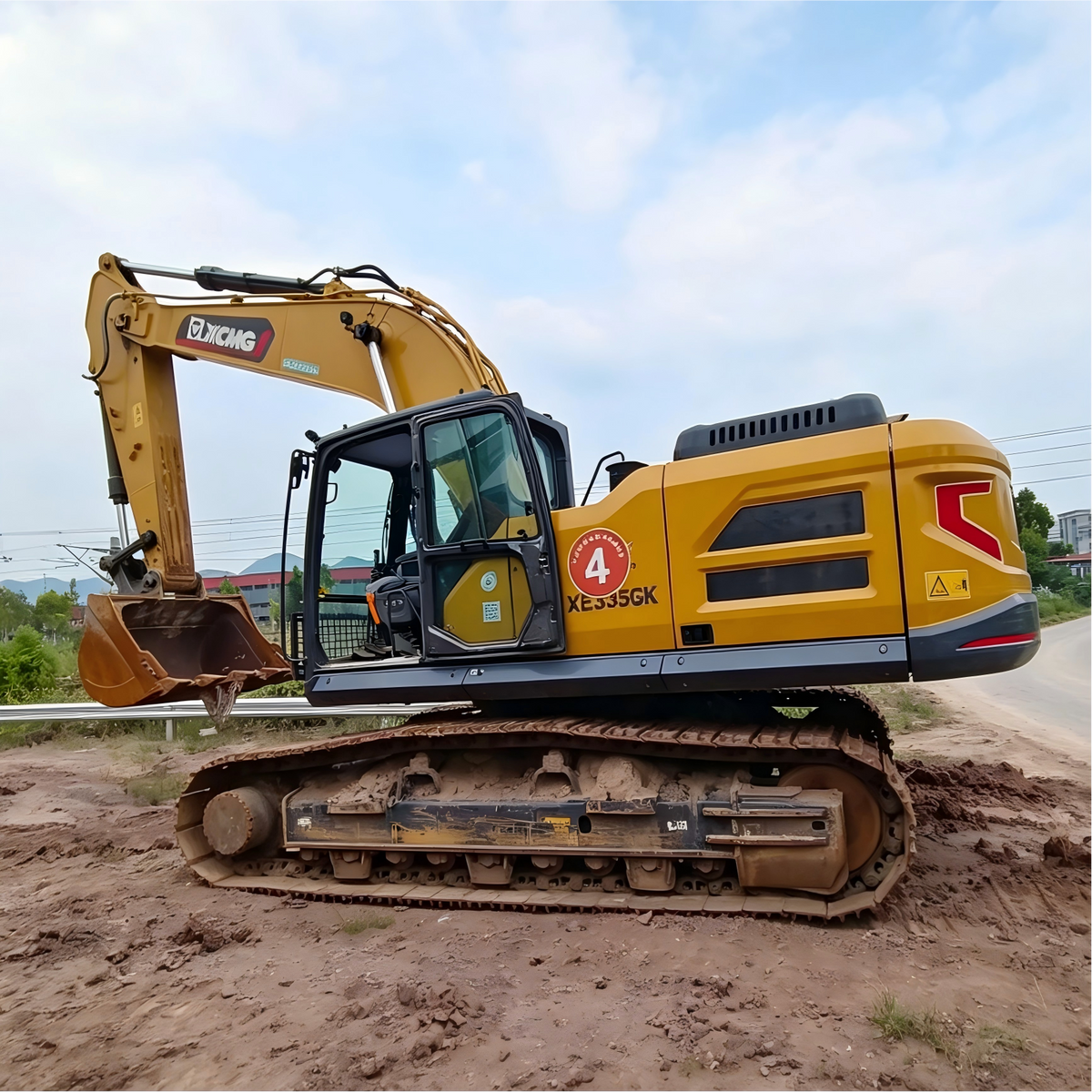

XCMG XE355GK (35t Mining‑Type, China Stage IV) |
| Operating Weight |
35,000 kg |
| Standard Bucket Capacity |
1.8 m³ (rock bucket) |
| Optional Bucket Range |
1.6–2.0 m³ |

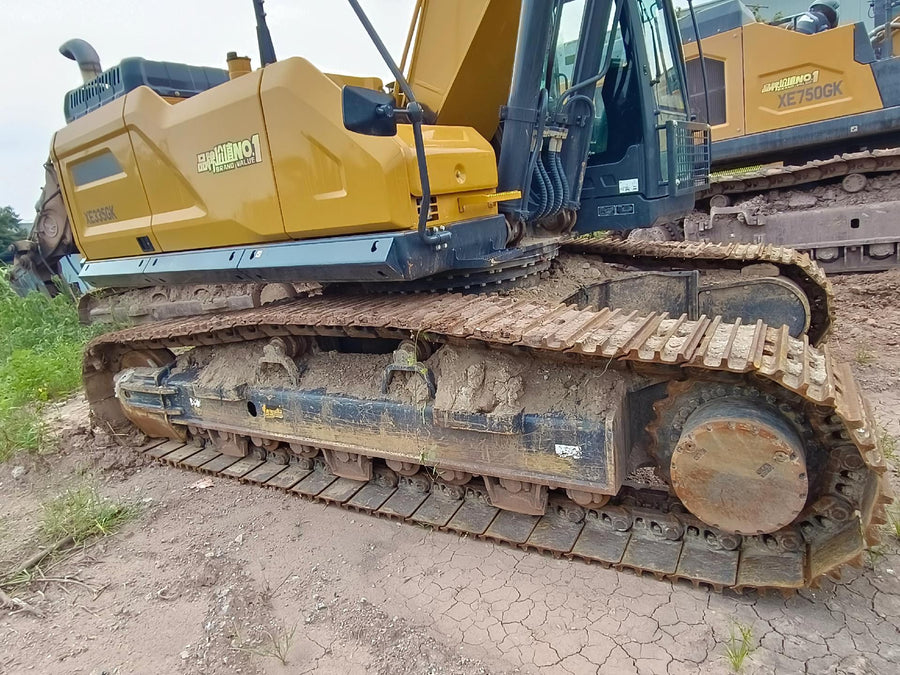

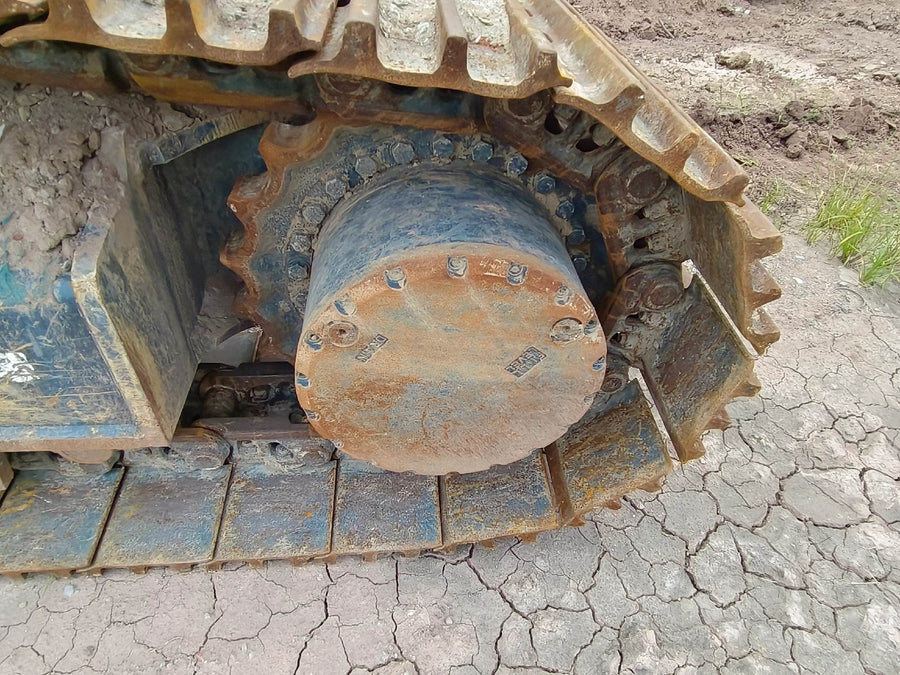

| Undercarriage |
Heavy‑duty mining crawler, 600 mm track shoes, 4,028 mm wheelbase |

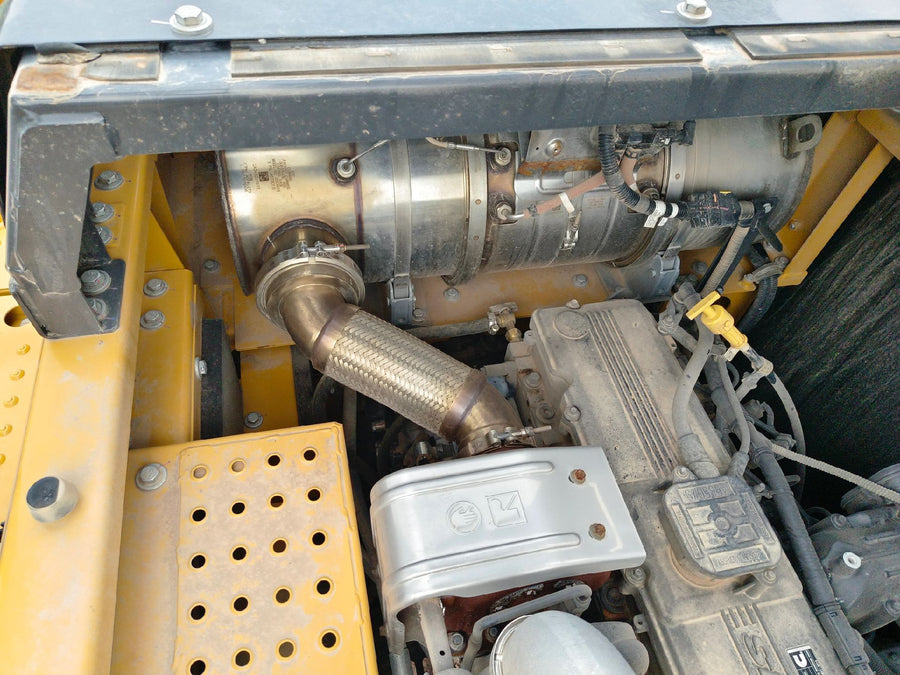

| Engine Model |
Cummins QSL9 (6‑cylinder inline diesel, China Stage IV) |
| Rated Power |
219 kW @ 1,900 rpm |
| Displacement |
8.9 L |
| Max Torque |
1,344 N·m @ 1,300 rpm |
| Fuel Tank Capacity |
660 L |
| Hydraulic Tank Capacity |
350 L |
| Bucket Digging Force |
290 kN |
| Arm Digging Force |
210 kN |
| Max Traction Force |
285 kN |
| Swing Torque |
175 kN·m |
| Swing Speed |
9.6 rpm |
| Travel Speed (Low/High) |
3.3 km/h / 5.6 km/h |
| Gradeability |
35° (70%) |
| Ground Pressure |
68 kPa |
| Max Digging Depth |
7,250 mm |
| Max Ground Reach |
10,680 mm |
| Max Digging Height |
10,500 mm |
| Max Dump Height |
7,320 mm |
| Min Swing Radius |
4,400 mm |

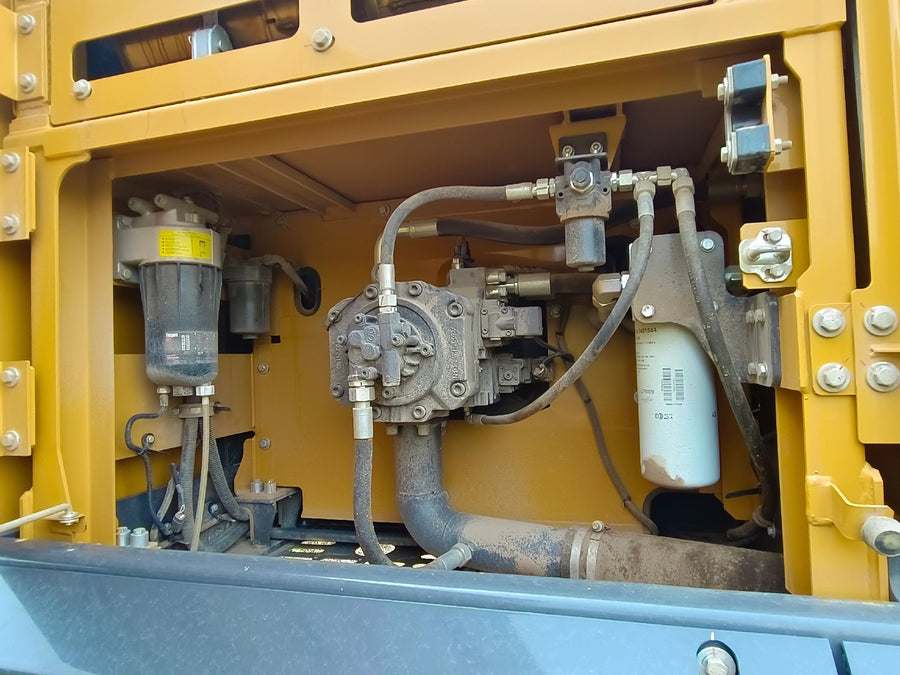

| Main Pump |
XCMG self‑developed electric‑controlled positive flow pumps |
| Hydraulic System Pressure |
34.3 MPa |
| Transport Dimensions (L×W×H) |
11,250 × 3,190 × 3,480 mm |
