| Model |

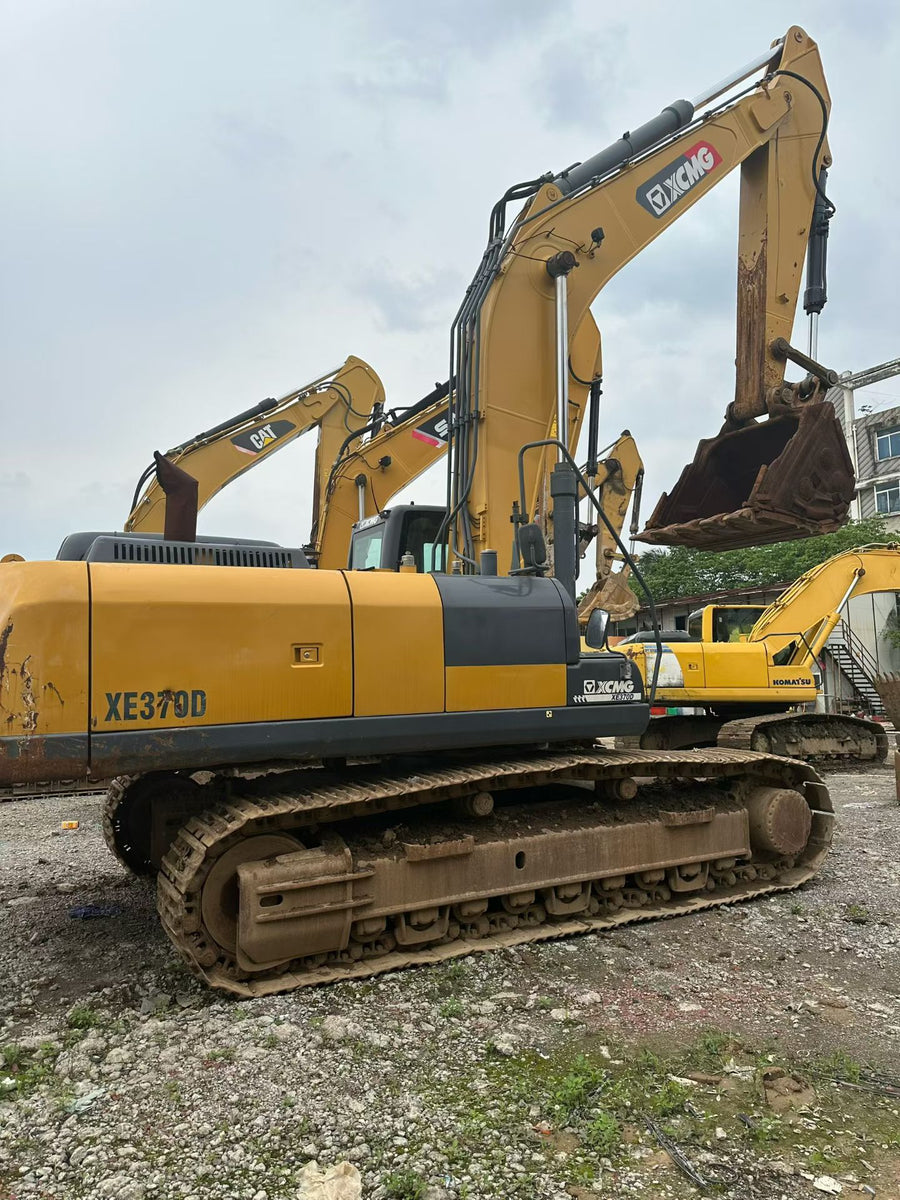

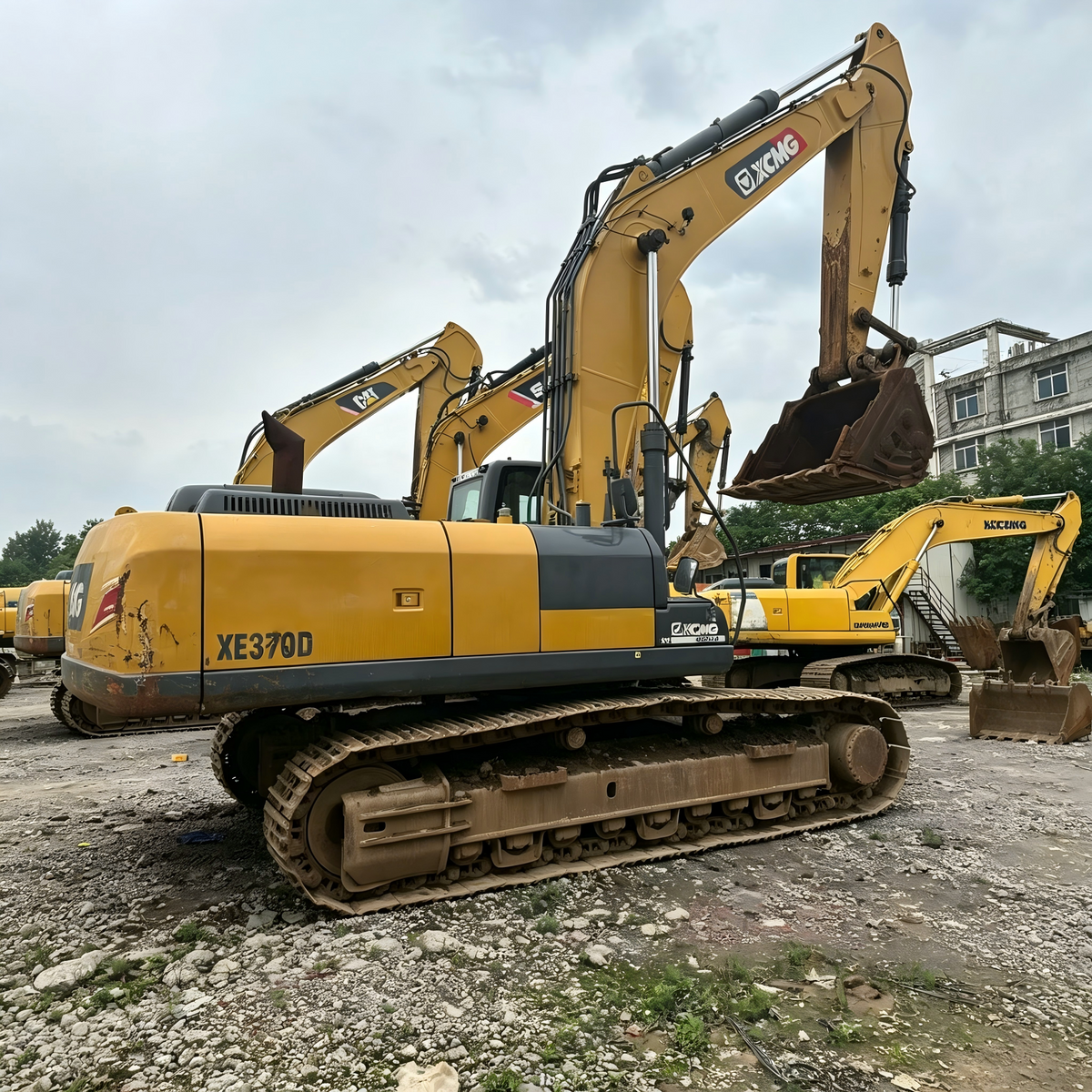

XCMG XE370D (36.8t General Construction Excavator) |
| Operating Weight |
36,800 kg |
| Standard Bucket Capacity |
1.6 m³ (general bucket) |
| Optional Bucket Range |
1.4–1.8 m³ |

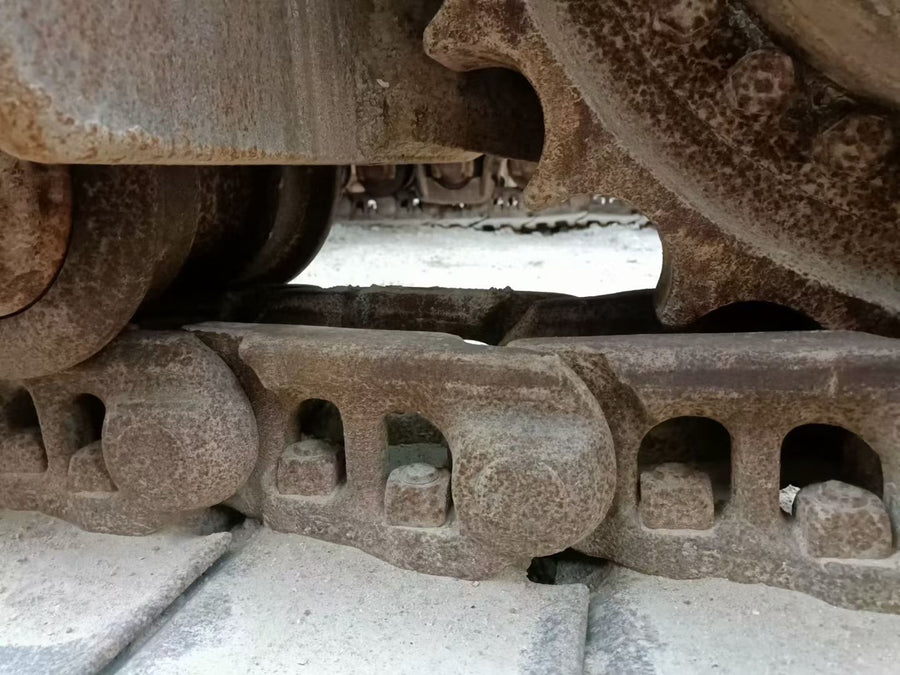

| Undercarriage |
Heavy‑duty crawler, 600 mm track shoes |
| Engine Model |
Isuzu GH‑6HK1XKSC‑03 (6‑cylinder inline diesel) |
| Rated Power |
212 kW @ 2,000 rpm |
| Displacement |
7.79 L |
| Max Torque |
1,080 N·m @ 1,500 rpm |
| Emission Standard |
China Nonroad Stage III / Tier 3 |
| Fuel Tank Capacity |
600 L |
| Hydraulic Tank Capacity |
320 L |
| Bucket Digging Force |
263 kN |
| Arm Digging Force |
188 kN |
| Max Traction Force |
285 kN |
| Swing Torque |
165 kN·m |
| Swing Speed |
9.7 rpm |
| Travel Speed (Low / High) |
3.2 km/h / 5.4 km/h |
| Gradeability |
35° (70%) |
| Ground Pressure |
66.7 kPa |
| Max Digging Depth |
7,423 mm |
| Max Ground Reach |
11,114 mm |
| Max Digging Height |
10,445 mm |
| Max Dump Height |
7,287 mm |
| Min Swing Radius |
4,500 mm |

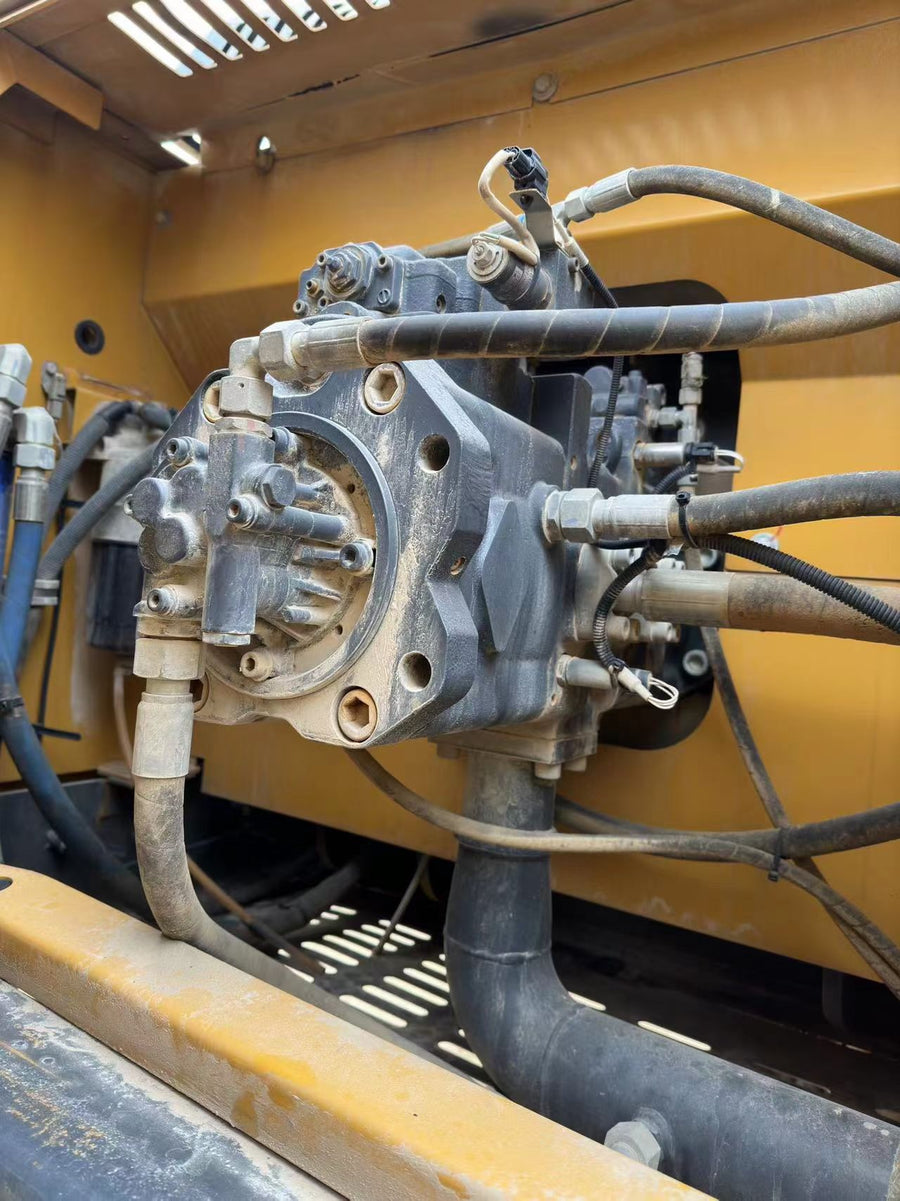

| Main Pump |
Kawasaki dual variable piston pumps, 2×304 LPM |
| Hydraulic System Pressure |
34.3 MPa |
| Transport Dimensions (L×W×H) |
11,200 × 3,190 × 3,750 mm |
